Solar Powered, Cellar Lighting Arduino Control

Simple LED lighting using Arduino Nano.

BeginnerWork in progress5,097

Solar Powered, Cellar Lighting Arduino Control

Things used in this project

Hardware components

LE 16.4ft 300 SMD 5050 LEDS Flexible Strip LIghts

Arduino Nano R3

Generic Reed Switch

RFP30N06LE 30A 60V N-channel Mosfet TO-220

Resistor 1k ohm

10k Ohms Potentiometer

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Hot glue gun (generic)

I used epoxy to glue down led strips but this may work.

Soldering iron (generic)

Story

Video

1 / 3 • Door is closed. Reed switch is switched.

About

I found it necessary to have some lighting in my cellar. On the occasion we need it for an emergency and other than that we use it for storage. We haven't had a good lighting setup in there so I decided to make one. A person could use this setup in a room or an office or for whatever purposes you can think of.

Originally I attempted using just a potentiometer to control the lights inside BAD IDEA. These LEDs pull several amps. On adjustment of the potentiometer, it burn up rendering it useless. You could build a similar circuit without an Arduino, but I love coding and building things with them. So onto the simple build using Arduino Nano.

A step to completing this would be to add another 12v SLA battery in parallel to have more battery power. In my calculations there isn't a whole lot of power in these smaller cells to last very long. Another thing would be to build a generator on the turbine to charge the batteries as well. But this is as it is for the moment. Another further step would be to add an IoT board to have access from anywhere in the local network.

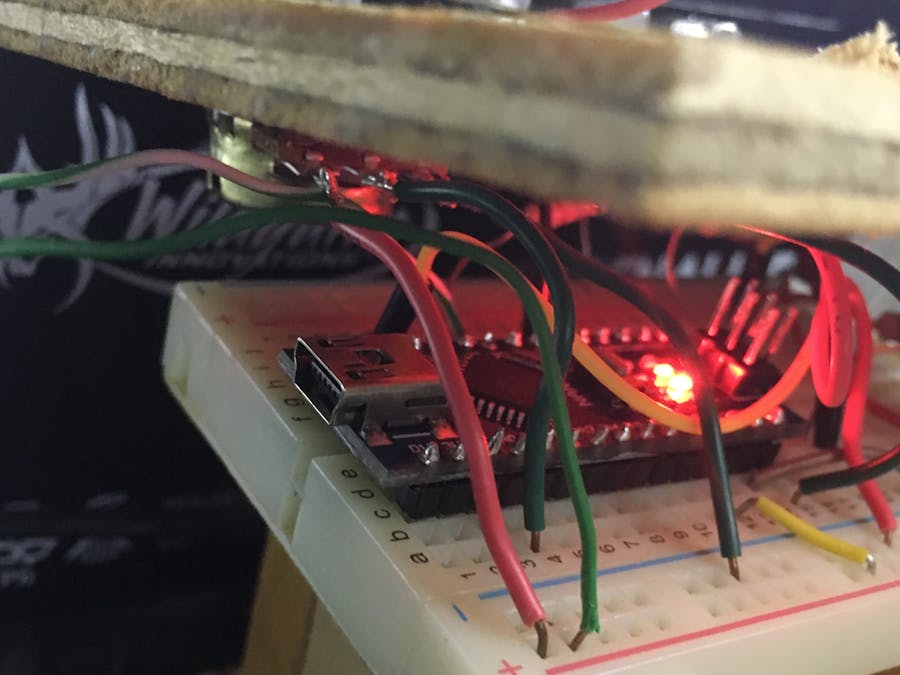

Arduino Nano is inside the cheaply made wooden enclosure.

12v Solar charge controller. From solar panel to this then battery then from battery to load. To transistor controlled by Arduino Nano.

Schematics

Code

Cellar Control

#define lights 9 //connects to gate of mosfet
#define reed 5
int pot = A0;

void setup() {
  Serial.begin(9600);
  pinMode(lights, OUTPUT);
  pinMode(reed, INPUT_PULLUP);
}

void loop() {


  delay(200);
  int control = analogRead(pot);
  control = map(control, 0, 1023, 0, 255);
  Serial.println(control);
  delay(200);
  //analogWrite(lights, control);

  int trig = digitalRead(reed);
  if(trig == LOW && control <= 15){
    Serial.println("door open");
    analogWrite(lights, 255);
    delay(5000);
    analogWrite(lights, 0);
    delay(25000);
    }

  if(trig == LOW && control >= 15){
    Serial.println("door open but using");
    analogWrite(lights, control);
    }

  if(trig == HIGH && control >= 30){
    Serial.print("closed but inside");
    analogWrite(lights, control);
   }

  if(trig == HIGH && control <= 10){
    Serial.print("closed shut off lights");
    analogWrite(lights, 0);
  }
}
