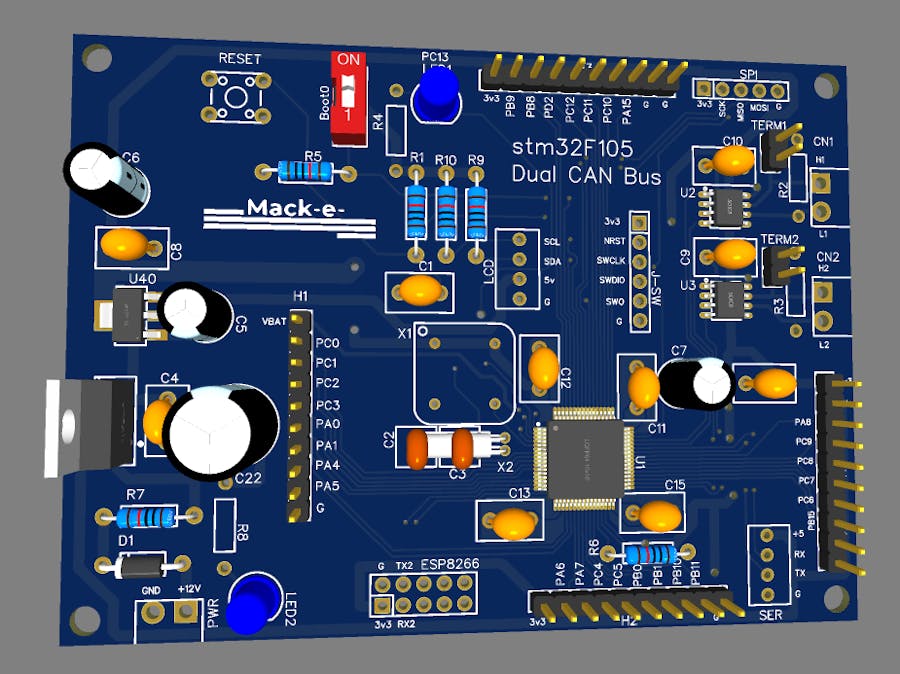

This pcb was primarily made to develop the CAN 2 port on the stm32F105 under stm32Duino.
I had the pcb made at jlcpcb.com and zipped gerbers and schematics can be obtained at https://github.com/mackelec/STM32F105_Dual_CAN_Board
Embed the widget on your own site
Add the following snippet to your HTML:
stm32F105 Dual CAN Bus development board
The board was designed to help develop the 2nd CAN bus port on stm32Duino.
