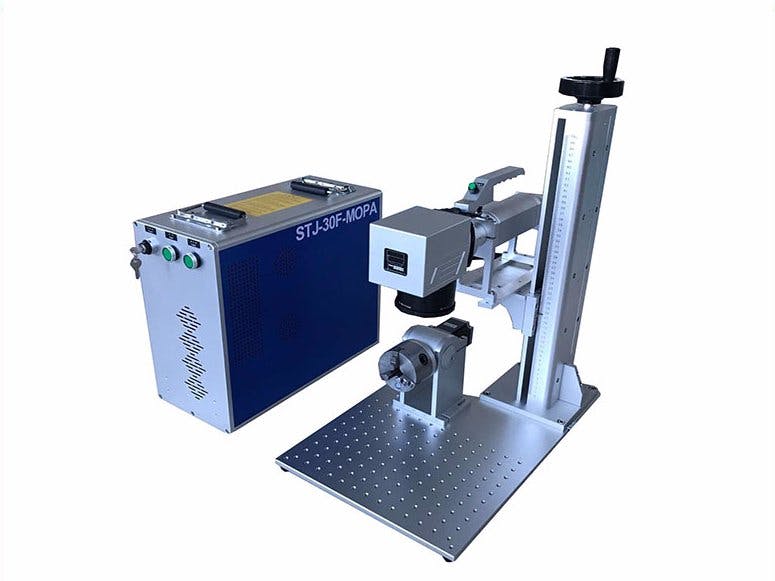

Finished A New Machine Can Mark Color On Metal

Product Description Characters

Product Description Characters of color laser marking machine :

• Excellent light beam: small gathering facula, better processing quality.

• Pulse width could adjust to 8-200ns, working frequency could adjust to 500KHz.

• Could fulfill constant peak power output, higher processing efficiency.

• Very low failure rate, long lifespan: fiber grating replace traditional resonant cavity, no need to adjust, the lifespan could reach 100 thousand hours.

Applicable scope of color laser marking machine:

STYLECNC color laser marking machine can do black and white marking on most metals and plastics, black marking on anodized aluminum, color marking on stainless steel and titanium. Laser marking logo, text, figure, photo, QR code, bar code, serial number, on metal and plastic parts and tools. Laser marking stainless steel, brass, aluminum ( iPhone, iPad ), anodized aluminum, iron, gold, silver, titanium and other metals. Laser marking plastic, ABS, acrylic, Nylon, pvc, marble, ceramic etc.

Easily Operating of color laser marking machine:

Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.

Technical Parameters of color laser marking machine

• Output Power 30w

• Wavelength 1060nm

• Beam Quality <2

• Repeat Frequency 10khz--- 100khz

• Pulse Energy 2mJ

• Beam Divergence -0.3 to +0.3mrad

• Resolution 18μ

• Repeatablility 50μ

• Marking Scope 200*200

• Linear Speed 800 character/ s

• Marking Linear Speed ≤12,000mm/s

• Marking Depth Max. 1.0- 1.5mm (hard steel)

• Min. Line Width 0.012mm

• Min. Character Size 0.15mm

• Repeat Accuracy ±0.003mm

• Input Power 0.5kw

• Electrical Source 110v/220V / S
