Digital Taxi Fare Meter

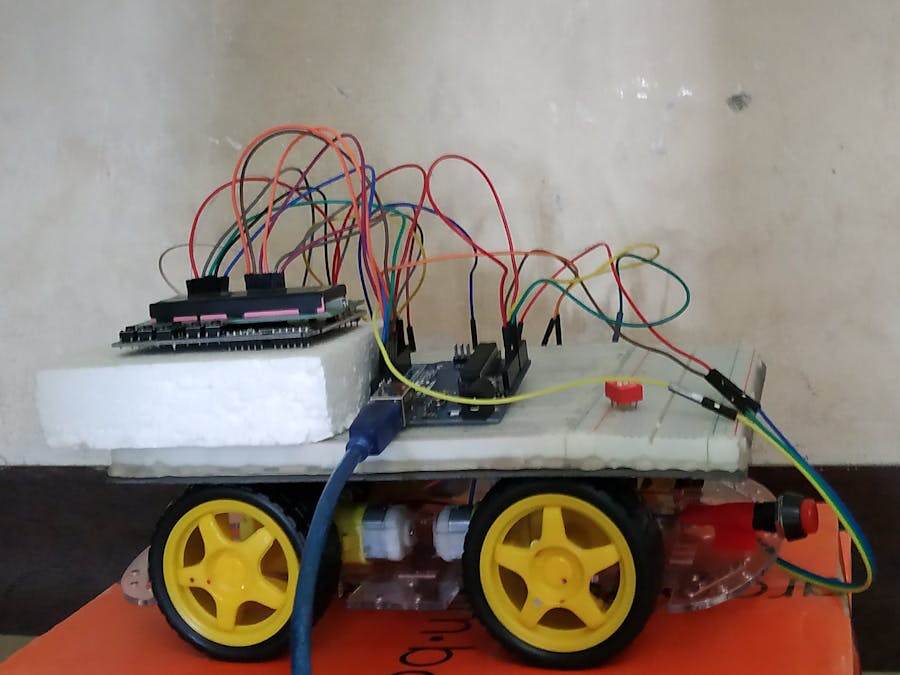

This is a taxi fare meter, made using Arduino UNO. From this meter we can get the fare, distance traveled and the speed of the vehicle.

IntermediateShowcase (no instructions)Over 3 days106
Digital Taxi Fare Meter

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
RGB LCD Shield Kit, 16x2 Character Display
RGB LCD Shield Kit, 16x2 Character Display
×1
Multi-Turn Precision Potentiometer- 10k ohms (25 Turn)
Multi-Turn Precision Potentiometer- 10k ohms (25 Turn)
×1
LM393 Speed Sensor Module (FC-03)
×1
ULN2003 Motor Driver IC
×1
9V battery (generic)
9V battery (generic)
×1
9V Battery Clip
9V Battery Clip
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×30

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Taxi Fare Meter Circuit Diagram

Code

Taxi Fare Meter Code

Arduino
#include "TimerOne.h"                      //Include Timer1 library for using Timer1 functions
#include <LiquidCrystal.h>                 //Include LCD library for using LCD display functions

const int rs = 12, en = 13, d4 = 8, d5 = 9, d6 = 10, d7 = 11;   //Define the LCD pins
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

volatile unsigned int counter=0;
volatile unsigned int rotation=0;
float rotationinm=0;
unsigned int speed=0;

void count()  // ISR for counts from the speed sensor
{
  counter++;  //increase the counter value by one
  rotation++; //Increase the rotation value by one
  delay(10);
}

void timerIsr()
{
 detachInterrupt(digitalPinToInterrupt(2));          //Stops the interrupt pin 2
 Timer1.detachInterrupt();                           //Stops the timer1 interrupt

 lcd.clear();

 float speed = (counter / 20.0)* 60.0;              //Calculate speed in minute (20-No of slots in Encoder Wheel)
 float rotations = 230*( rotation / 20);            //Calculate distance in cm (230-Circumference of the wheel assumed 20- No of slots)
 rotationinm = rotations/100;

 lcd.setCursor(0,0);
 lcd.print("Dist(m):");
 lcd.print(rotationinm);                            //Display rotationinm at LCD
 lcd.setCursor(0,1);
 lcd.print("Speed(RPM):");
 lcd.print(speed);                                  //Dsiplay speed in RPM

  counter=0;                                        //Reset counter to 0

  int analogip = analogRead(A0);                   // Analog read from pin A0
  int motorspeed = map(analogip,0,1023,0,255);     //convert digital vales 0-1023 to 0-255
  analogWrite(5,motorspeed);                      //Sets PWM value at pin 5

 Timer1.attachInterrupt( timerIsr );                        //Starts timer1 again
 attachInterrupt(digitalPinToInterrupt(2), count, RISING);  //Attaches interrupt at pin2 again
}

void generatefare()                           //ISR to generate the fareamount
{
   detachInterrupt(digitalPinToInterrupt(2)); //Disables the Interrupt pin at 2
   Timer1.detachInterrupt();                  //Disables the Timer1 interrupt
   float Taka = rotationinm*5;              //Muliply 5 with distance travelled (tk 5 per meter )
   lcd.clear();                               //Clears LCD
   lcd.setCursor(0,0);
   lcd.print("FARE BDT: ");
   lcd.print(Taka);                        //Display fare amount
   lcd.setCursor(0,1);
   lcd.print("TK 5 per metre");
}

void setup()
{
  pinMode(A0,INPUT);                 //Sets pin A0 as INPUT
  pinMode(5,OUTPUT);                 //Sets pin 5 as OUTPUT

  lcd.begin(16,2);     //Sets LCD as 16x2 type
    lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("    EAST WEST   ");
  lcd.setCursor(0,1);
  lcd.print("   UNIVERSITY");
  delay(3000);
  lcd.clear();

    lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Course:EEE401");
  lcd.setCursor(0,1);
  lcd.print("Section: 01");
  delay(3000);
   lcd.clear();
      lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Project By");
  lcd.setCursor(0,1);
  lcd.print("Group 01");
  delay(3000);
  lcd.clear();
        lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Group Members:");
  delay(3000);
  lcd.clear();
        lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Taisir Rahi");
  lcd.setCursor(0,1);
  lcd.print("ID:2016-1-80-009");
  delay(3000);
  lcd.clear();
        lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Anisur Rahman");
  lcd.setCursor(0,1);
  lcd.print("ID:2016-3-80-002");
  delay(3000);
  lcd.clear();
        lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Sajoy Hasan");
  lcd.setCursor(0,1);
  lcd.print("ID:2017-2-80-011");
  delay(3000);
  lcd.clear();
      lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("Instructor:");
  lcd.setCursor(0,1);
  lcd.print("FAKIR MASHUQUE");
  delay(4000);
  lcd.clear();
    lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("BANGLADESH");
  lcd.setCursor(0,1);
  lcd.print("WELCOME TO TAXI");
  delay(3000);
  lcd.clear();
  lcd.print("START RIDING:");
  delay(1000);
  lcd.clear();

  Timer1.initialize(1000000);          //Initilize timer1 for 1 second
  Timer1.attachInterrupt( timerIsr );  //ISR routine to be called for every one second

  attachInterrupt(digitalPinToInterrupt(2), count, RISING);     // Pin 2 as Interrupt pin with count ISR is called when LOW to RIGH happens.
  attachInterrupt(digitalPinToInterrupt(3), generatefare, HIGH); //Pin 3 as Interrupt pin with generatefare ISR is called when HIGH is detected.
 }

void loop()
{
 }
