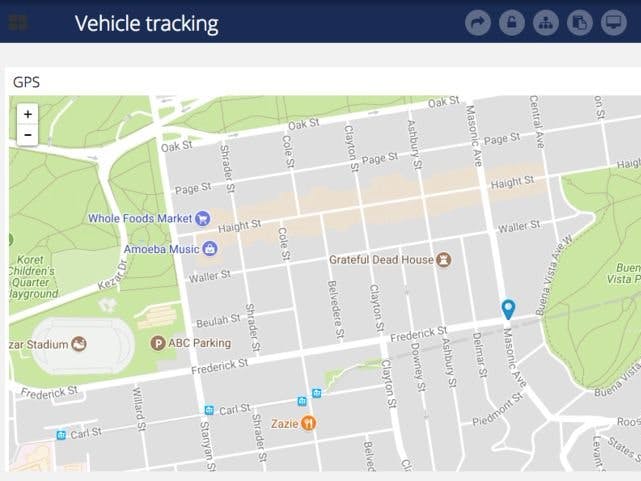

DIY Sigfox GPS Asset Tracking with Ubidots

Setup:

• About setting up Suntech ST730

• Ubidots Parser Configuration

• Sigfox Callback Configuration

I. About setting up the Suntech ST730

The Suntech ST730 is a portable device equipped with Sigfox technology, the GNSS location, Wi-Fi, and a set of sensors — making it a nice option for out-of-the-box asset tracking. This module lets users manage data when needed, preventing excess energy consumption with efficient time-outs.

This guide is does address the set up of the Suntech ST730 nor its possible configurations; instead, we will be showing a few good set-up practices for building a highly accurate GPS application.

Note: Ubidots is committed to helping you connect your ST730 to our IoT and cloud application platform the easiest way possible. With more guides arriving all the time, see Ubiparse for more data analytics parsers to pair or enhance your applications.

Suntech ST730 GPS Set-up Tip:

Data format for GPS in this tutorial is:

• 4 bytes for latitude

• 4 bytes for longitude

Both latitude and longitude are coded using the IEEE- Standard 754 floating point format. If a GPS reading doesn't follow this format, no data reading will be sent. Here's an example of a GPS reading properly done:

Example: 02c1b6c81cc23c5514

• 0x02 – data type

• 0xC1B6C81C – latitude -> -22.84771

• 0xC23C5514 – longitude -> -47.083084

See the SuntechST730 User Manual for additional instructions or troubleshooting to your hardware's setup.

Once you have setup the module to send data —as shown above—, we will now configure the Ubiparser.

2. Ubidots Parser set up

Note: a parser is a Node.js cloud function executed when a GET, POST, or HTTPS request is made in the Parser URL as illustrated below.

• For creating a Parser go to your Ubidots account -> Device Management -> Parsers. NOTE: If you cannot see the Parsers module in your account, you will need to enable the add-on for $30/month in the billing section of your account.

2. Click the blue plus icon in the upper-right corner to create parsers:

3. Assign a name to the Parser, e.g. "suntech-ubidots", to identify it in the Sigfox backend later.

4. Assign the POST as the HTTP method from the scrollbar. 5. Click on "Make it live" to generate an API endpoint URL containing the name of your parser. The URL should look like this:

6. Now, just copy and paste the code located below into the Ubiparsers Editor. When pasted, assign your Ubidots TOKEN where indicated:

var

For running a Parser test, please paste this code in the editor that popups:

{"device_id": "12345", "data": "02c1b6c81cc23c5514"}

3. Sigfox Callback Configuration

Click here for an intro and docs to configure a call in the Sigfox backend with your Suntech device. For this, you will need to use the parameters listed below.

• Type: DATA - UPLINK

• Channel: URL

• Custom payload config: Leave it in blank

• Url pattern: https://parse.ubidots.com/prv/iotexpo/suntech-ubidots (this is the URL generated by the Ubidots parser in the step above)

• Use HTTP method: POST

• Header: X-Auth-Token - {Assign_your_ubidots_token}

• Content Type: application/json

• Body:

{

When the callback is executed properly, your Sigfox backend will look similar to this:

2. Press "OK" to save all the changes and visualize your new device in Ubidots.

With this, your Sigfox callback is ready and the Ubiparser is properly transforming data received to Ubidots cloud. Now it is time to develop your application with Ubidots code-free IoT application tools.Go to the Device section and see a newly created device with the ID of Suntech Device as name:
