Project 03 - DIG3602C

/*
  Arduino Starter Kit example

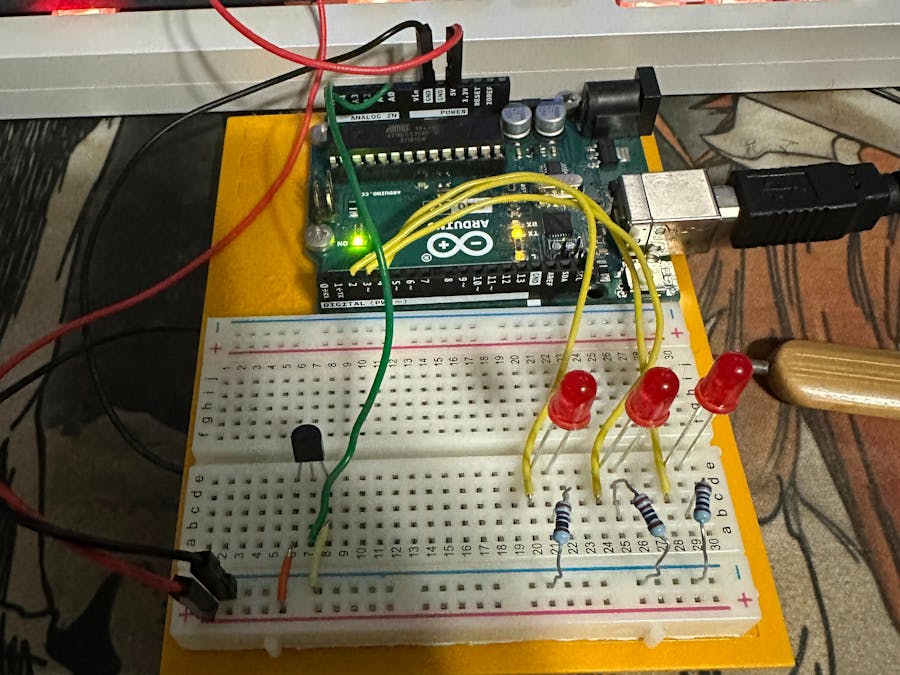

  Project 3 - Love-O-Meter

  This sketch is written to accompany Project 3 in the Arduino Starter Kit

  Parts required:
  - one TMP36 temperature sensor
  - three red LEDs
  - three 220 ohm resistors

  created 13 Sep 2012
  by Scott Fitzgerald

  https://store.arduino.cc/genuino-starter-kit

  This example code is part of the public domain.
*/

// named constant for the pin the sensor is connected to
const int sensorPin = A0;
// room temperature in Celsius
const float baselineTemp = 26.0;

void setup() {
  // open a serial connection to display values
  Serial.begin(9600);
  // set the LED pins as outputs
  // the for() loop saves some extra coding
  for (int pinNumber = 2; pinNumber < 5; pinNumber++) {
    pinMode(pinNumber, OUTPUT);
    digitalWrite(pinNumber, LOW);
  }
}

void loop() {
  // read the value on AnalogIn pin 0 and store it in a variable
  int sensorVal = analogRead(sensorPin);

  // send the 10-bit sensor value out the serial port
  Serial.print("sensor Value: ");
  Serial.print(sensorVal);

  // convert the ADC reading to voltage
  float voltage = (sensorVal / 1024.0) * 5.0;

  // Send the voltage level out the Serial port
  Serial.print(", Volts: ");
  Serial.print(voltage);

  // convert the voltage to temperature in degrees C
  // the sensor changes 10 mV per degree
  // the datasheet says there's a 500 mV offset
  // ((voltage - 500 mV) times 100)
  Serial.print(", degrees C: ");
  float temperature = (voltage - .5) * 100;
  Serial.println(temperature);

  // if the current temperature is lower than the baseline turn off all LEDs
  if (temperature < baselineTemp + 1.5f) {
    digitalWrite(2, LOW);
    digitalWrite(3, LOW);
    digitalWrite(4, LOW);
  }  // if the temperature rises 2-4 degrees, turn an LED on
  else if (temperature >= baselineTemp + 1.5f && temperature < baselineTemp + 3) {
    digitalWrite(2, HIGH);
    digitalWrite(3, LOW);
    digitalWrite(4, LOW);
  }  // if the temperature rises 4-6 degrees, turn a second LED on
  else if (temperature >= baselineTemp + 3 && temperature < baselineTemp + 5) {
    digitalWrite(2, HIGH);
    digitalWrite(3, HIGH);
    digitalWrite(4, LOW);
  }  // if the temperature rises more than 6 degrees, turn all LEDs on
  else if (temperature >= baselineTemp + 5) {
    digitalWrite(2, HIGH);
    digitalWrite(3, HIGH);
    digitalWrite(4, HIGH);
  }
  delay(250);
}
