Hardware components | ||||||
| × | 1 | ||||
 |
| × | 1 | |||
Software apps and online services | ||||||
 |
| |||||
 |
| |||||
 |
| |||||
 |
| |||||
Introduction
Create an SNS Topic
Replenishment Test with Postman

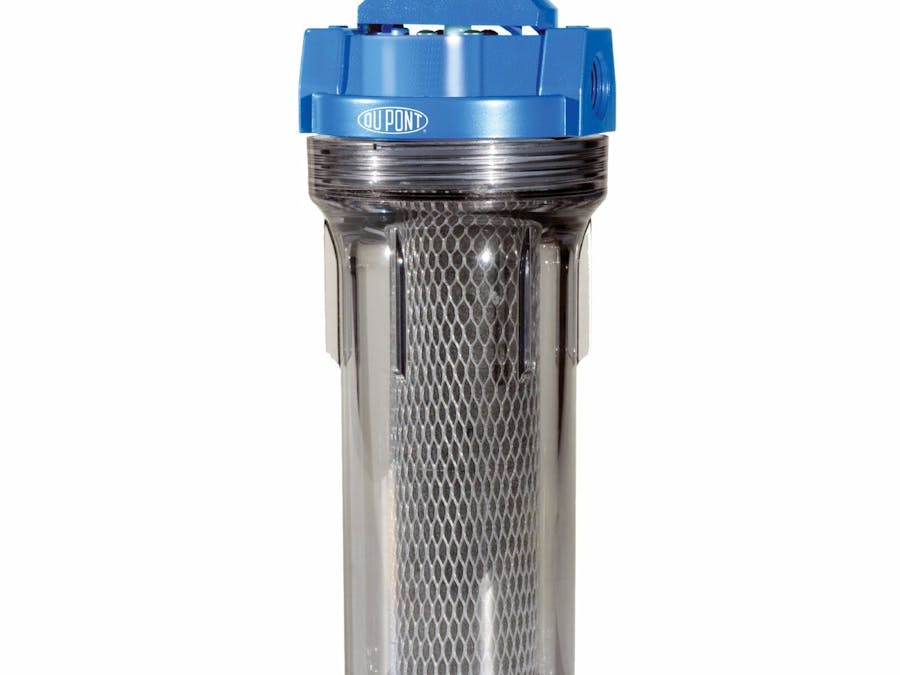

Read moreWater filters have a life span. After filtration of certain volume of water, the filters need to be changed to maintain the water quality. Hence, it is important to replenish a new filter when it expires. I am building a water filter replenishment system using Amazon DRS by monitoring the water usage.
Create an LWA Security ProfileTo create an LWA security profile, follow this link.
To create an SNS topic, follow this link.
Create the DRS4WFS deviceVisit this link to start the Device Wizard. Below are a few screen captures of the device creation process.
Listing of devices
.
Device Registration and SubscriptionVisit the registration and subscription link and click Get started.
.
The device Model ID will be displayed and you need to key in the Serial #. Then click Login with Amazon.
.
Login with your Amazon credential.
.
You will be presented with choices of Cartridge for your selection.
.
Click the Complete Setup.
.
Registration Complete
.
In your mail box. You will see a few DRS notifications.
.
Below are the Device Registered and Subscription Changed notification.
.
Here is the email notification showing your DRS subscription status.
.
This is the Auto Reorder Overview where you can change the subscription.
.
If an order replenishment was made, you will receive the ItemShippedNotification and the OrderPlacedNotification.
.
At the same time, you will get an order placed email like below.
.
The SketchIn test mode, the sketch will send an order replenishment every X litre of water flowing thru where X is currently set to 1. In real life, X could be a number over thousands in value.
// Print the cumulative total of litres flowed since starting
Serial.print(" Output Liquid Quantity: "); // Output separator
Serial.print(totalMilliLitres);
Serial.println("mL");
// send to web app for order replenishment for every Litre of water
if (totalMilliLitres > litresCount * 1000) {
litresCount++;
sendOrderReplenishment();
}
This is the code which sends an order replenishment to the product web app on Azure cloud.
void sendOrderReplenishment() {
// close any connection before send a new request.
// This will free the socket on the WiFi shield
client.stop();
String contentType = "text/plain";
// if there's a successful connection:
if (client.connect(hostname, 80)) {
//make the GET request
client.print("GET "); //Do a GET
client.print(feeduri); // On the feedURI
client.println(" HTTP/1.1");
client.print("Host: ");
client.println(hostname); //with hostname header
client.println("Connection: close");
client.print("Content-Type: ");
client.println(contentType);
client.println();
Serial.println();
Serial.println(">>> send order replenishment <<<");
}
else {
// if you couldn't make a connection:
Serial.println();
Serial.println("connection failed");
}
}
.
The CodeThe Consent Request code is in javascript.
<script type="text/javascript">
document.getElementById('LoginWithAmazon').onclick = function() {
var device = 'fe152d18-4d66-49d1-a3e4-118d1c509b06';
var serial = document.getElementById("serial_no").value; // '1234567890';
var returnurl = 'https://wesee.azurewebsites.net/lwa/handle_drs.php?device=' + device + '&serial=' + serial;
var options = new Object();
var scope = ('dash:replenish');
var scope_data = new Object();
scope_data['dash:replenish'] = {"device_model":device ,"serial":serial ,"is_test_device":true};
options['scope_data'] = scope_data;
options['scope'] = scope;
options['response_type'] = 'code';
amazon.Login.authorize(options, returnurl);
return false;
};
</script>
.
The Refresh and Access Token code is in PHP.
$grant_type = 'authorization_code';
$client_id = 'amzn1.application-oa2-client.dd7238f2130d48179c24da58bacac020'; //your client id
$client_secret = '743b49b3e0b5537600a8fc8b65fb06da451f5e81fea85390413cec2351be10c9'; //your client secret
$device = urlencode($_REQUEST['device']);
$serial = urlencode($_REQUEST['serial']);
$code = urlencode($_REQUEST['code']); //the code is retured as a parameter in the query string once the user logs in
$data = array("grant_type"=>$grant_type, "code" => $code, "client_id"=> $client_id, "client_secret"=> $client_secret);
$postvars = '';
foreach($data as $key=>$value) {
$postvars .= $key . "=" . $value . "&";
}
$c = curl_init('https://api.amazon.com/auth/o2/token');
curl_setopt($c, CURLOPT_CUSTOMREQUEST, "POST");
curl_setopt($c, CURLOPT_POSTFIELDS, $postvars);
curl_setopt($c, CURLOPT_RETURNTRANSFER, true);
curl_setopt($c, CURLOPT_SSL_VERIFYPEER, false);
curl_setopt($c, CURLOPT_HTTPHEADER, array('Content-Type: application/x-www-form-urlencoded;charset=UTF-8'));
$r = curl_exec($c);
curl_close($c);
.
The access token and refresh token are stored in a mysql table on Azure cloud during device registration. The code is in PHP.
$access_token = $ra['access_token'];
$refresh_token = $ra['refresh_token'];
$expires_in = $ra['expires_in'];
try {
$date = date("Y-m-d");
// Insert data
$sql_insert = "INSERT INTO drs_tbl (device, serial, code, access_token, refresh_token, expires_in, date)
VALUES (?,?,?,?,?,?,?)";
$stmt = $conn->prepare($sql_insert);
$stmt->bindValue(1, $device);
$stmt->bindValue(2, $serial);
$stmt->bindValue(3, $code);
$stmt->bindValue(4, $access_token);
$stmt->bindValue(5, $refresh_token);
$stmt->bindValue(6, $expires_in);
$stmt->bindValue(7, $date);
$stmt->execute();
}
catch(Exception $e) {
die(var_dump($e));
}
.
The Request New Refresh and Access Tokens code is in PHP.
$data = array("grant_type"=>$grant_type, "refresh_token" => $refresh_token, "client_id"=> $client_id, "client_secret"=> $client_secret);
$postvars = '';
foreach($data as $key=>$value) {
$postvars .= $key . "=" . $value . "&";
}
$c = curl_init('https://api.amazon.com/auth/o2/token');
curl_setopt($c, CURLOPT_CUSTOMREQUEST, "POST");
curl_setopt($c, CURLOPT_POSTFIELDS, $postvars);
curl_setopt($c, CURLOPT_RETURNTRANSFER, true);
curl_setopt($c, CURLOPT_SSL_VERIFYPEER, false);
curl_setopt($c, CURLOPT_HTTPHEADER, array('Content-Type:application/x-www-form-urlencoded'));
$r = curl_exec($c);
.
The Order Replenishment code is in PHP.
$slot_id = "dbdf9606-0c52-4f48-8995-af33638f6ccc";
$c = curl_init('https://dash-replenishment-service-na.amazon.com/replenish/' . $slot_id);
curl_setopt($c, CURLOPT_CUSTOMREQUEST, "POST");
curl_setopt($c, CURLOPT_RETURNTRANSFER, true);
curl_setopt($c, CURLOPT_SSL_VERIFYPEER, false);
curl_setopt($c, CURLOPT_HTTPHEADER, array('Authorization:Bearer ' . $access_token,
'x-amzn-accept-type:com.amazon.dash.replenishment.DrsReplenishResult@1.0',
'x-amzn-type-version:com.amazon.dash.replenishment.DrsReplenishInput@1.0',
'Content-Type:application/x-www-form-urlencoded'));
$r = curl_exec($c);
.
Future EnhancementsThis project at current stage has quite a few rough edges. Here are some enhancements which will make the product more user friendly.
- Allow WiFi setting to be configuratable from web interface or mobile app. Currently the setting is hardcoded in the sketch.
- Implement more DRS endpoints
- Build a more robust web app which enable customers to view and monitor the current status of the device.
.
