Hardware components | ||||||
 |
| × | 1 | |||
 |
| × | 1 | |||
 |
| × | 1 | |||
 |
| × | 1 | |||
Software apps and online services | ||||||
 |
| |||||
 |
| |||||
 |
| |||||

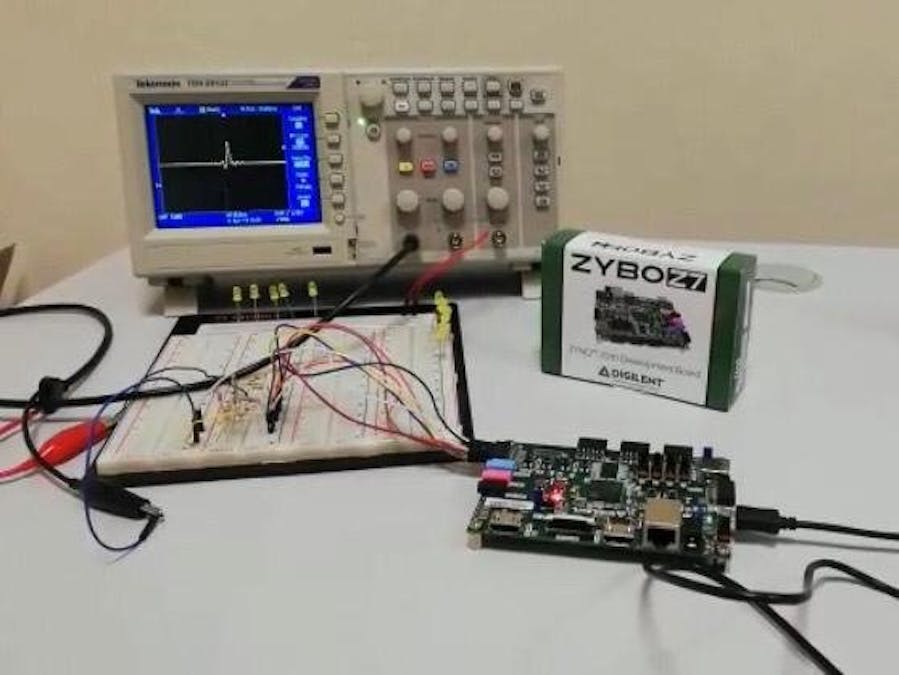

This project aims to create transmission line between two links using FPGA cards and solve the synchronization problems with ADPLL. Analog communication and synchronization systems are always been popular but not quite effective for any communication system. This project uses digital data bits to send any messages through any communication link with minimum phase errors.
In this project, QAM communication technique is used. Since in QAM there are two coefficients, in every 2 bits data is ready to send. In the end of the video below transmitter part of the each case of signals can be observed in order [00 01 10 11].
.
clc;clear all;
Tc=1/25.5;
a=0.22;
% t=-12.7*1.5:0.15:12.8*1.5;
t=-38.22*Tc:2.56*4*Tc:38.22*Tc;
p=zeros(1,length(t));
for i=1:1:length(t)
if t(i)==0
p(i)= (1-a)+4*a/pi;
else if t(i)==1/(4*a) || t(i)==-1/(4*a)
p(i)=a/sqrt(2)*((1+2/pi)*sin(pi/(4*a))+(1-2/pi)*cos(pi/(4*a)));
else
p(i) = (sin(pi*t(i)*(1-a))+4*a*t(i).*cos(pi*t(i)*(1+a)))./(pi*t(i).*(1-(4*a*t(i)).^2));
end
end
end
%carriers1
c1=(cos(2*pi*t/Tc));
c2=(sin(2*pi*(t)/Tc));
% carriers2
cr1=(cos(2*pi*t/Tc));
cr2=(sin(2*pi*(t)/Tc));
a=1;b=1;
y1=(a*p.*c1+b*p.*c2);
y2=(-a*p.*c1-b*p.*c2);
y3=(a*p.*c1-b*p.*c2);
y4=(-a*p.*c1+b*p.*c2);
% figure(1)
% plot(t,y1)
yr11=(cr1.*y1);
yr12=(cr2.*y1);
yr21=(cr1.*y2);
yr22=(cr2.*y2);
yr31=(cr1.*y3);
yr32=(cr2.*y3);
yr41=(cr1.*y4);
yr42=(cr2.*y4);
k11=yr11.*p;
k12=yr12.*p;
k21=yr21.*p;
k22=yr22.*p;
k31=yr31.*p;
k32=yr32.*p;
k41=yr41.*p;
k42=yr42.*p;
z=0;
y=0;
f=0;
s=0;
u=0;
l=0;
q=0;
x=0;
for w=1:1:length(t)
z=k11(w)+z;
y=k12(w)+y;
f=k21(w)+f;
s=k22(w)+s;
u=k31(w)+u;
l=k32(w)+l;
q=k41(w)+q;
x=k42(w)+x;
end
vecd=[z y f s u l q x] ;
rec=zeros(1,length(vecd));
% % % stem(vecd)
% % % axis([-5 15 20 -20])
for que=1:1:length(vecd)
if vecd(que)>=0
rec(que)=1;
elseif vecd(que)<=0
rec(que)=0;
end
end
subplot(2,1,1)
stem(vecd)
axis([-1 9 -2 2])
title('QAM Coefficients That Received')
ylabel('QAM Coefficients')
xlabel('Data Vectors Order')
subplot(2,1,2)
stem(rec)
ylabel('Data Has Been Sent')
xlabel('Sended Bit Vector')
axis([-1 9 -2 2])
title('Initial Data Vectors That Detected')
% figure(8)
% plot(t,p.*c2)
clc;clear all;
Tc=5;
a=0.02;
t=-12.7*1.5:0.15:12.8*1.5;
% t=-38.22*Tc:2.56*4*Tc:38.22*Tc;
c1=cos(2*pi*t/Tc);
c2=sin(2*pi*(t)/Tc);
p=zeros(1,length(t));
for i=1:1:length(t)
if t(i)==0
p(i)= (1-a)+4*a/pi;
else if t(i)==1/(4*a) || t(i)==-1/(4*a)
p(i)=a/sqrt(2)*((1+2/pi)*sin(pi/(4*a))+(1-2/pi)*cos(pi/(4*a)));
else
p(i) = (sin(pi*t(i)*(1-a))+4*a*t(i).*cos(pi*t(i)*(1+a)))./(pi*t(i).*(1-(4*a*t(i)).^2));
end
end
end
figure(1)
plot(t,p)
hold on
plot(t,p.*c1)
title('Square-Root Raised Cosine Filter Filling with Cosine Signal')
ylabel('Amplitude')
xlabel('Time')
grid on
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
entity bitirme_2 is
port( clk_in: in std_logic;
X:in std_logic_vector(1 downto 0);
output:out std_logic_vector(7 downto 0) );
end entity;
architecture logic_flow of bitirme_2 is
type matrix is array(0 to 255) of integer range 0 to 255;
signal y: matrix;
signal count: natural range 1 to 50000;
signal count2: natural range 0 to 255;
signal temp_clk_out: std_logic:='0';
signal temp_clk_out_in: std_logic:='0';
signal i:integer:=0;
signal q:integer;
signal z:std_logic_vector(7 downto 0);
signal CON:std_logic_vector(1 downto 0);
signal count3:natural range 1 to 256;
signal clk_out_divided: std_logic;
signal clk_256: std_logic;
signal clk_out_original : std_logic;
begin
z<="10000111";
process(z,clk_256)
variable c : integer range 0 to 8 :=0;
begin
--i<=0;
if(rising_edge(clk_256))then
if (c < 7) then
CON<=(z(c)&z(c+1));
c := c+2;
else
c:=0;
end if;
if(X="00")then
--y1
y<=(127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,126,126,126,127,127,128,128,128,127,127,127,126,126,126,127,127,127,127,127,127,127,127,127,127,127,127,126,126,125,125,126,128,129,131,131,130,128,124,121,119,119,121,126,130,135,137,136,133,129,125,122,122,125,128,129,125,115,97,73,46,23,6,0,8,28,57,89,119,143,157,160,155,145,133,122,116,114,114,120,124,128,130,130,129,128,127,127, 127,128,128,128,127,126,126,125,126,126,127,128,128,128,128,127,126,126,126,126,127,127,128,128,128,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,126,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127);--y1
--y2
elsif(X="01")then
y<=(126,126,127,127,126,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,127,126,126,126,126,126,126,127,127,127,127,127,126,126,125,125,126,126,127,128,128,128,127,126,125,125,125,126,127,127,128,127,127,127,127,128,129,130,129,127,124,119,115,113,115,122,133,145,155,160,156,143,119,89,56,28,8,0,6,22,46,72,96,114,125,129,127,124,122,122,124,129,133,136,137,134,130,125,121,119,119,121,124,127,130,131,130,129,127,126,125,125,125,126,127,127,127,127,127,126,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,127,127,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,127,127,127,126,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126);--y2
--y3
elsif(X="10")then
y<=(127,127,127,126,127,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,127,127,127,127,127,127,126,126,126,126,126,127,127,128,128,127,127,126,125,125,125,126,127,128,128,128,127,126,126,125,126,126,127,126,125,124,123,124,126,129,134,138,140,138,131,120,108,98,93,97,110,134,164,197,225,245,253,247,231,207,181,157,139,128,124,126,129,131,131,129,124,120,117,116,119,123,128,132,134,134,132,129,126,123,122,123,124,126,127,128,128,128,127,126,126,126,126,126,127,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,126,126,126,127,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127);
--y4=
else
y<=(127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,126,126,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,126,127,127,127,128,128,128,127,127,126,126,126,126,127,127,128,128,128,127,127,127,127,127,127,127,127,126,126,126,127,127,128,129,129,128,126,124,123,123,124,126,130,133,135,135,132,128,123,119,116,117,120,124,129,131,131,129,126,124,128,139,157,181,207,231,247,253,245,225,197,165,134,110,97,93,98,108,120,131,138,140,138,134,130,126,124,123,124,125,126,127,126,126,125,126,126,127,128,128,128,127,126,125,125,125,126,127,127,128,128,127,127,126,126,126,126,126,127,127,127,127,127,127,126,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,126,126,126,126,127,127,127,127,127,127,126,126,126,126,126,127,127,127,127,127,126,126,126,126,126,126,127,127,127,127,127,127,126,127,127,127,127);
end if;
i<=i+2;
end if;
end Process;
clk_out_original <= clk_in;
process(clk_in)
begin
if (rising_edge(clk_in)) then
count <= count + 1;
if(count=50000) then
temp_clk_out<=not temp_clk_out;
count<=1;
end if;
end if;
end process;
clk_out_divided <= temp_clk_out;
process(clk_out_divided)
begin
if (rising_edge(clk_out_divided)) then
count3 <= count3 + 1;
if(count3=256) then
temp_clk_out_in<=not temp_clk_out_in;
count3<=1;
end if;
end if;
end process;
clk_256<=temp_clk_out_in;
process(clk_out_divided)
begin
if (rising_edge(clk_out_divided)) then
output<= conv_std_logic_vector( y(count2),8 );
if(count2=255) then
count2<=0;
end if;
count2 <= count2 + 1;
end if;
end process;
end architecture;
# ADPLL-Design-for-Transciever-System
----------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Design Name:
-- Module Name: PLL_CO_BO - Behavioral
-- Project Name:
-- Target Devices:
-- Tool versions:
-- Description:
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
----------------------------------------------------------------------------------
library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.std_logic_arith.all;
use IEEE.std_logic_misc.all;
use IEEE.std_logic_unsigned.all;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;
-- Uncomment the following library declaration if instantiating
-- any Xilinx primitives in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity PLL_CO_BO is
port (
clk: in STD_LOGIC; -- clock for k and id counter
f_in: in STD_LOGIC; -- input signal
dn_up:in STD_LOGIC;
f_out: inout STD_LOGIC; -- output signal
k_up_out:out STD_LOGIC_VECTOR(3 downto 0);
Bo_out:out STD_LOGIC;
Ca_out:out STD_LOGIC;
ID_out_out:out STD_LOGIC;
tog_FF_out:out STD_LOGIC;
k_dn_out:out STD_LOGIC_VECTOR(3 downto 0)
);
end PLL_CO_BO;
architecture Behavioral of PLL_CO_BO is
constant Kbit: integer:=4;
constant counter: natural range 1 to 2:=1;
signal Ca: std_logic:='0'; -- carry out of k_counter
signal Bo: std_logic:='0'; -- borrow out of k_counter
signal k_up: std_logic_vector (Kbit-1 downto 0):="0000"; -- up counter in k_counter
signal k_dn: std_logic_vector (Kbit-1 downto 0):="0000"; -- down counter in k_counter
signal k_half: std_logic_vector (Kbit-1 downto 0):="0100"; -- up counter in k_counter
signal tog_FF: std_logic:='0';
signal ID_Out:std_logic:='0';
signal temp_clk_out: std_logic :='0';
signal k_up_before: std_logic_vector (Kbit-1 downto 0):="0000"; -- up counter in k_counter before
signal k_dn_before: std_logic_vector (Kbit-1 downto 0):="0000"; -- down counter in k_counter before
begin
k_cnt: process (clk)
begin
if clk='0' and clk'event then
if dn_up='1' then
k_up <= k_up;
k_dn<=k_dn+1;
else
k_dn <= k_dn;
k_up<=k_up+1;
end if;
if k_dn = Kbit+Kbit then
k_dn <= (others=>'0');
end if;
if k_up = Kbit+Kbit then
k_up<= (others=>'0');
end if;
--carry barrow belirleme
if k_up >= k_half then
Ca<='1';
else
Ca<='0';
end if;
if k_dn >= k_half then
Bo<='1';
else
Bo<='0';
end if;
end if;
end process;
k_up_out<=k_up;
k_dn_out<=k_dn;
Ca_out<=Ca;
Bo_out<=Bo;
ID_Count: process (clk)
begin
if clk='0' and clk'event then
if ((k_up=k_half or k_up=k_half+1) and (k_up_before /= k_up)) then
tog_FF<='0';
end if;
end if;
if clk='1' and clk'event then
if ((k_dn=k_half or k_dn=k_half+1) and (k_dn_before /= k_dn)) then
tog_FF<= '1';
else
if ((k_up=k_half or k_up=k_half+1) and (k_up_before/=k_up)) then
tog_FF<=tog_FF;
else
tog_FF<=not tog_ff;
end if;
end if;
ID_Out<=not(clk or tog_FF);
k_up_before<=k_up;
k_dn_before<=k_dn;
end if;
end process;
ID_out_out<=ID_Out;
tog_FF_out<=tog_FF;
end Behavioral;
--------------------------------------------------------------------------------
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--USE ieee.numeric_std.ALL;
ENTITY TBCABO_8 IS
END TBCABO_8;
ARCHITECTURE behavior OF TBCABO_8 IS
-- Component Declaration for the Unit Under Test (UUT)
COMPONENT PLL_CO_BO
PORT(
clk : IN std_logic;
f_in : IN std_logic;
dn_up : IN std_logic;
f_out : INOUT std_logic;
k_up_out : OUT std_logic_vector(3 downto 0);
Bo_out : OUT std_logic;
Ca_out : OUT std_logic;
ID_out_out : OUT std_logic;
tog_FF_out : OUT std_logic;
k_dn_out : OUT std_logic_vector(3 downto 0)
);
END COMPONENT;
--Inputs
signal clk : std_logic := '0';
signal f_in : std_logic := '0';
signal dn_up : std_logic := '0';
--BiDirs
signal f_out : std_logic;
--Outputs
signal k_up_out : std_logic_vector(3 downto 0);
signal Bo_out : std_logic;
signal Ca_out : std_logic;
signal ID_out_out : std_logic;
signal tog_FF_out : std_logic;
signal k_dn_out : std_logic_vector(3 downto 0);
signal k_up_before: std_logic_vector (3 downto 0);
signal k_dn_before: std_logic_vector (3 downto 0);
-- Clock period definitions
constant clk_period : time :=50 ns;
BEGIN
-- Instantiate the Unit Under Test (UUT)
uut: PLL_CO_BO PORT MAP (
clk => clk,
f_in => f_in,
dn_up => dn_up,
f_out => f_out,
k_up_out => k_up_out,
Bo_out => Bo_out,
Ca_out => Ca_out,
ID_out_out => ID_out_out,
tog_FF_out => tog_FF_out,
k_dn_out => k_dn_out
);
-- Clock process definitions
clk_process :process
begin
clk <= '0';
wait for clk_period/2;
clk <= '1';
wait for clk_period/2;
end process;
-- Stimulus process
stim_proc: process
begin
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
-- hold reset state for 100 ns.
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='0';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
dn_up<='1';
wait for 100 ns;
--wait for clk_period*10;
-- insert stimulus here
wait;
end process;
END;
3 projects • 2 followers
This team was created by Hasan Toskar & Seda Esen & Berkay Ergün
0 projects • 1 follower
Connection mail ergnberkay@gmail.com or vhdlcankaya@gmail.com
Thanks to Orhan Gazi.
