Ultra Anti-Theft System

This security system aims to equip rooms with a cheap but fairly reliable system using ultrasonic sensors to detect movement.

BeginnerFull instructions provided24 hours1,744

Things used in this project

Hardware components

Texas Instruments CC3200-LAUNCHXL SimpleLink CC3200 Wi-Fi LaunchPad

create a web server

Texas Instruments MSP-EXP430G2 MSP430 LaunchPad

for ultra sonic and server motor

Ultrasonic Sensor - HC-SR04 (Generic)

SG90 Micro-servo motor

Breadboard (generic)

Jumper wires (generic)

Software apps and online services

Texas Instruments Energia

Story

Ultra Anti Theft System

1 / 7 • Ultrasonic sensor

This security system aims at improving the security in hostel rooms.

To equip the rooms with a cheap but a fairly reliable systems we would use ultrasonic sensors to detect movement when an individual is not in his/her room.

The setup consists of a simple circuit wherein ultrasonic sensors are placed at various heights at a room entrance. It is then linked to an alerting system which is monitored by the logic as provided in the microcontroller.The interface for this will be a web page generated by a web server.Those with a link to the page can access the system.Trusted individuals such as friends and hostel guard will be notified of any intrusions.

Now to further enhance this system so as to ensure locking of rooms and to facilitate automated unlocking using handheld devices a servo motor can be attached to the latch of the door and then can initiate auto locking and unlocking process.

It can also be applied to cupboards/cabinets within the room.In case of an intrusion, the door will automatically be closed, after movement is detected.

This type of system is very cheap and affordable and also ensures that the components if damaged can be easily replaced. Moreover scalability can also be achieved at a low cost as multiple ultrasonic sensors can be connected to a single micro controller thereby drastically reducing costs.

This project uses Texas Instruments micro controllers like the MSP430 and the CC3200 and also uses requires Energia to code and work on these platforms

Some of the important hardware components required in this project are:

● MSP430 board

● CC3200 board

● Servo motor

● Ultrasonic sensors

● Jumper wires

● Breadboard

● 2 power sources

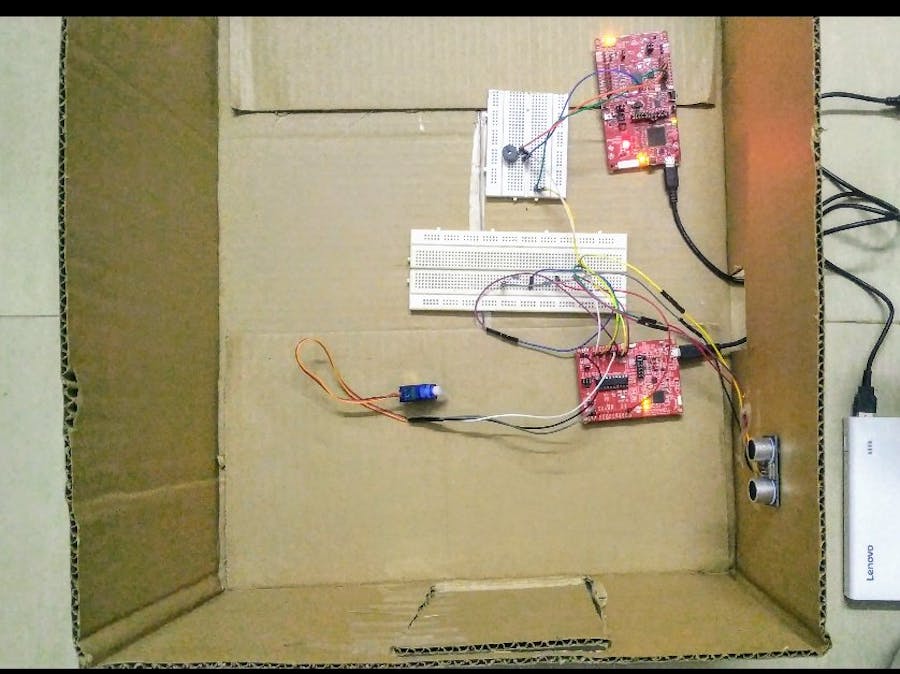

Constructing the prototype

Step 1

Create a web server using the CC3200 to host the information of the ultrasonic sensor and to detect any intrusion. To do this please do follow the code as provided

Step 2

Use a MSP430 board to detect motion using an ultrasonic sensor. Now use the code as provided and make the circuit connections as shown so as to relay the information from the ultrasonic sensors to the web server

Step 3

Use the MSP430 board so as to create an appropriate locking mechanism using servo motor and use the code provided to achieve the same

#ifndef _CC3200R1M1RGC_
// Do not include SPI for CC3200 LaunchPad
#include <SPI.h>
#endif
#include <WiFi.h>

// your network name also called SSID
char ssid[] = "rohit";
// your network password
char password[] = "234567891";
// your network key Index number (needed only for WEP)
int keyIndex = 0;

WiFiServer server(80);

void setup() {
  Serial.begin(9600);      // initialize serial communication
  pinMode(RED_LED, OUTPUT);      // set the LED pin mode

  // attempt to connect to Wifi network:
  Serial.print("Attempting to connect to Network named: ");
  // print the network name (SSID);
  Serial.println(ssid);
  // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
  WiFi.begin(ssid, password);
  while ( WiFi.status() != WL_CONNECTED) {
    // print dots while we wait to connect
    Serial.print(".");
    delay(300);
  }

  Serial.println("\nYou're connected to the network");
  Serial.println("Waiting for an ip address");

  while (WiFi.localIP() == INADDR_NONE) {
    // print dots while we wait for an ip addresss
    Serial.print(".");
    delay(300);
  }

  Serial.println("\nIP Address obtained");

  // you're connected now, so print out the status
  printWifiStatus();

  Serial.println("Starting webserver on port 80");
  server.begin();                           // start the web server on port 80
  Serial.println("Webserver started!");
}

void loop() {
  int i = 0;
  WiFiClient client = server.available();   // listen for incoming clients
  int k =digitalRead(4);
  if (client) {                             // if you get a client,
    Serial.println("new client");           // print a message out the serial port
    char buffer[150] = {0};                 // make a buffer to hold incoming data
    while (client.connected()) {            // loop while the client's connected
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        Serial.write(c);                    // print it out the serial monitor
        if (c == '\n') {                    // if the byte is a newline character

          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (strlen(buffer) == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println();

            // the content of the HTTP response follows the header:
            client.println("<html><head><title>Energia CC3200 WiFi Web Server</title></head><body align=center>");
            client.println("<h1 align=center><font color=\"blue\">THEFT DETECTION STYSTEM - ROOM :-6</font></h1>");
            client.print("System <button onclick=\"location.href='/H'\">ON</button>");
            client.println(" <button onclick=\"location.href='/L'\">OFF</button><br>");
            if(k==1)
             {if (digitalRead(RED_LED)==HIGH)
               {client.println("<h1 align=center><font color=\"red\">ALERT:INTRUSION HAS OCCURED</font></h1>");
                digitalWrite(7,HIGH);
                delay(15000);
                digitalWrite(7,LOW);}
             }
            // The HTTP response ends with another blank line:
            client.println();
            // break out of the while loop:
            break;
          }
          else {      // if you got a newline, then clear the buffer:
            memset(buffer, 0, 150);
            i = 0;
          }
        }
        else if (c != '\r') {    // if you got anything else but a carriage return character,
          buffer[i++] = c;      // add it to the end of the currentLine
        }

        // Check to see if the client request was "GET /H" or "GET /L":
        if (endsWith(buffer, "GET /H")) {
          digitalWrite(RED_LED, HIGH);   // GET /H turns the LED on

        }
        if (endsWith(buffer, "GET /L")) {
          digitalWrite(RED_LED, LOW);                // GET /L turns the LED off
        }
         }

    }
    // close the connection:
    client.stop();
    Serial.println("client disonnected");
  }
}

//
//a way to check if one array ends with another array
//
boolean endsWith(char* inString, char* compString) {
  int compLength = strlen(compString);
  int strLength = strlen(inString);

  //compare the last "compLength" values of the inString
  int i;
  for (i = 0; i < compLength; i++) {
    char a = inString[(strLength - 1) - i];
    char b = compString[(compLength - 1) - i];
    if (a != b) {
      return false;
    }
  }
  return true;
}

void printWifiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID:");
  Serial.println(WiFi.SSID());

  // print your WiFi IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print the received signal strength:
  long rssi = WiFi.RSSI();
  Serial.print("signal strength (RSSI):");
  Serial.print(rssi);
  Serial.println(" dBm");
  // print where to go in a browser:
  Serial.print("To see this page in action, open a browser to http://");
  Serial.println(ip);
}

#include <Servo.h>

Servo sg90servo;    // create servo object to control a servo
int angle = 0;    // variable to store the servo position

const int trigPin = 6;
const int echoPin = 3;

void setup() {
  // initialize serial communication:
  sg90servo.attach(4);
  Serial.begin(9600);
  pinMode(8,OUTPUT);
 // pinMode(5,OUTPUT);
 pinMode(10,INPUT);
}

void loop() {
  // establish variables for duration of the ping, and the distance result
  // in inches and centimeters:
  long duration, inches, cm;

  // The PING))) is triggered by a HIGH pulse of 2 or more microseconds.
  // Give a short LOW pulse beforehand to ensure a clean HIGH pulse:
  pinMode(trigPin, OUTPUT);
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(5);
  digitalWrite(trigPin, LOW);

  // The same pin is used to read the signal from the PING))): a HIGH pulse
  // whose duration is the time (in microseconds) from the sending of the ping
  // to the reception of its echo off of an object.
  pinMode(trigPin, INPUT);
  duration = pulseIn(echoPin, HIGH);

  // convert the time into a distance
  inches = microsecondsToInches(duration);
  cm = microsecondsToCentimeters(duration);
  if(cm<=30){
    Serial.println("Alert");
    digitalWrite(8,HIGH);
    delay(5000);
    for(angle = 0; angle< 180; angle++)  // goes from 0 degrees to 180 degrees
  {                                       // in steps of 1 degree
    sg90servo.write(angle);              // tell servo to go to position in variable 'angle
    delay(20);                       // waits 20ms for the servo to reach the position
  }
  }
  if(cm>30){
    digitalWrite(8,LOW);
  }
    delay(1000);
  Serial.print(inches);
  Serial.print("in, ");
  Serial.print(cm);
  Serial.print("cm");
  Serial.println();
  if(digitalRead(10)==HIGH)
   for(angle = 0; angle< 180; angle++)  // goes from 0 degrees to 180 degrees
  {                                       // in steps of 1 degree
    sg90servo.write(angle);              // tell servo to go to position in variable 'angle
    delay(20);                       // waits 20ms for the servo to reach the position
  }

  delay(100);
}

long microsecondsToInches(long microseconds) {
  // According to Parallax's datasheet for the PING))), there are 73.746
  // microseconds per inch (i.e. sound travels at 1130 feet per second).
  // This gives the distance travelled by the ping, outbound and return,
  // so we divide by 2 to get the distance of the obstacle.
  // See: http://www.parallax.com/dl/docs/prod/acc/28015-PING-v1.3.pdf
  return microseconds / 74 / 2;
}

long microsecondsToCentimeters(long microseconds) {
  // The speed of sound is 340 m/s or 29 microseconds per centimeter.
  // The ping travels out and back, so to find the distance of the object we
  // take half of the distance travelled.
  return microseconds / 29 / 2;
}
