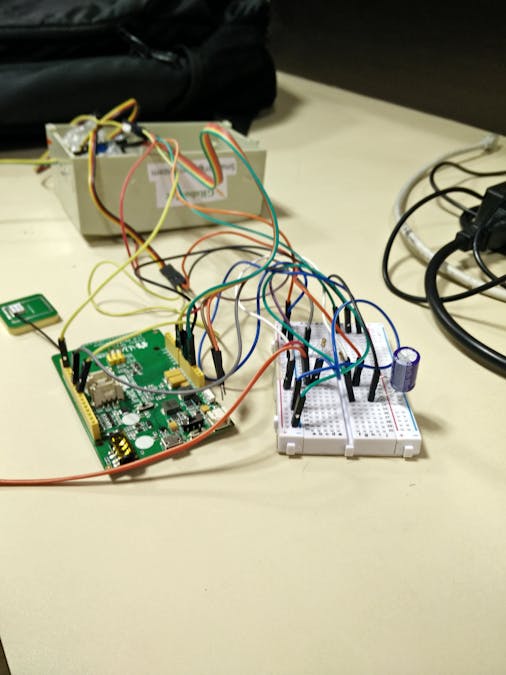

* SMART IRRIGATION
*
* MediaTek Linkit based soil moisture monitoring and irrigation
*
* Version 1.1 February, 2016
* Developed by Green Robot Machinery Pvt. Ltd., Bangalore.
*
*/
//headers for interfacing modules
#include <LGPS.h> // for GPS module
#include <DHT.h> // for Temperature and Humidity sensor
#include <HttpClient.h>
#include <LTask.h>
#include <LWiFi.h>
#include <LWiFiClient.h>
#include<Servo.h>
#include <SPI.h>
#include <LDateTime.h>
//WiFi configuration
#define WIFI_AP "grobomac-wifi"
#define WIFI_PASSWORD "grobomac"
#define WIFI_AUTH LWIFI_WPA
#define per 50
#define per1 3
#define DEVICEID "DJ6nvDvr" // Input your deviceId
#define DEVICEKEY "yz5SP0WksLWM76aD" // Input your deviceKey
#define SITE_URL "api.mediatek.com"
#define DHTPIN 2 // ‘Temperature and humidity’ sensor to pin2
#define DHTTYPE DHT22
DHT dht(DHTPIN,DHTTYPE);
gpsSentenceInfoStruct info; // getting GPS coordinates
char buff[256];
int servoPin = 9; //the servo motor is connected to pin9
Servo servo;
int angle = 0; //servo angle
String dataToUpload;
LWiFiClient c;
unsigned int rtc;
unsigned int lrtc;
unsigned int rtc1;
unsigned int lrtc1;
char port[4]={0};
char connection_info[21]={0};
char ip[21]={0};
int portnum;
int val = 0;
String tcpdata = String(DEVICEID) + "," + String(DEVICEKEY) + ",0";
String upload_led;
String tcpcmd_led_on = "LED_Control,1";
String tcpcmd_led_off = "LED_Control,0";
String upload_weather;
String upload_GPS;
LWiFiClient c2;
HttpClient http(c2);
// initialise variables for GPS coordinates
double latitude;
double longitude;
double altitude=0.0;
// functions to run the GPS modules
static unsigned char getComma(unsigned char num,const char *str)
{
unsigned char i,j = 0;
int len=strlen(str);
for(i = 0;i < len;i ++)
{
if(str[i] == ',')
j++;
if(j == num)
return i + 1;
}
return 0;
}
static double getDoubleNumber(const char *s)
{
char buf[10];
unsigned char i;
double rev;
i=getComma(1, s);
i = i - 1;
strncpy(buf, s, i);
buf[i] = 0;
rev=atof(buf);
return rev;
}
static double getIntNumber(const char *s)
{
char buf[10];
unsigned char i;
double rev;
i=getComma(1, s);
i = i - 1;
strncpy(buf, s, i);
buf[i] = 0;
rev=atoi(buf);
return rev;
}
void parseGPGGA(const char* GPGGAstr)
{
/* Refer to http://www.gpsinformation.org/dale/nmea.htm#GGA
* Sample data: $GPGGA,123519,4807.038,N,01131.000,E,1,08,0.9,545.4,M,46.9,M,,*47
* Where:
* GGA Global Positioning System Fix Data
* 123519 Fix taken at 12:35:19 UTC
* 4807.038,N Latitude 48 deg 07.038' N
* 01131.000,E Longitude 11 deg 31.000' E
* 1 Fix quality: 0 = invalid
* 1 = GPS fix (SPS)
* 2 = DGPS fix
* 3 = PPS fix
* 4 = Real Time Kinematic
* 5 = Float RTK
* 6 = estimated (dead reckoning) (2.3 feature)
* 7 = Manual input mode
* 8 = Simulation mode
* 08 Number of satellites being tracked
* 0.9 Horizontal dilution of position
* 545.4,M Altitude, Meters, above mean sea level
* 46.9,M Height of geoid (mean sea level) above WGS84
* ellipsoid
* (empty field) time in seconds since last DGPS update
* (empty field) DGPS station ID number
* *47 the checksum data, always begins with *
*/
int tmp, hour, minute, second, num ;
if(GPGGAstr[0] == '$')
{
tmp = getComma(1, GPGGAstr);
hour = (GPGGAstr[tmp + 0] - '0') * 10 + (GPGGAstr[tmp + 1] - '0');
minute = (GPGGAstr[tmp + 2] - '0') * 10 + (GPGGAstr[tmp + 3] - '0');
second = (GPGGAstr[tmp + 4] - '0') * 10 + (GPGGAstr[tmp + 5] - '0');
sprintf(buff, "UTC timer %2d-%2d-%2d", hour, minute, second);
Serial.println(buff);
tmp = getComma(2, GPGGAstr);
latitude = getDoubleNumber(&GPGGAstr[tmp]);
tmp = getComma(4, GPGGAstr);
longitude = getDoubleNumber(&GPGGAstr[tmp]);
sprintf(buff, "latitude = %10.4f, longitude = %10.4f", latitude, longitude);
Serial.println(buff);
tmp = getComma(7, GPGGAstr);
num = getIntNumber(&GPGGAstr[tmp]);
sprintf(buff, "satellites number = %d", num);
Serial.println(buff);
}
else
{
Serial.println("Not get data");
}
}
void setup()
{
servo.attach(9);
pinMode(A0,INPUT); //make A0 input to read the moisture data
pinMode(7, OUTPUT); ////make pin7 to send out the input moisture data
LTask.begin();
LWiFi.begin();
Serial.begin(115200);
dht.begin();
Serial.println("Temperature sensor on...");
LGPS.powerOn();
Serial.println("LGPS Power on, and waiting ...");
delay(3000);
while(!Serial) delay(1000); /* comment out this line when Serial is not present, ie. run this demo without connect to PC */
Serial.println("Connecting to AP");
while (0 == LWiFi.connect(WIFI_AP, LWiFiLoginInfo(WIFI_AUTH, WIFI_PASSWORD)))
{
delay(1000);
}
Serial.println("calling connection");
while (!c2.connect(SITE_URL, 80))
{
Serial.println("Re-Connecting to WebSite");
delay(1000);
}
delay(100);
getconnectInfo();
connectTCP();
uploadstatusweather();
}
void getconnectInfo(){
//calling RESTful API to get TCP socket connection
c2.print("GET /mcs/v2/devices/");
c2.print(DEVICEID);
c2.println("/connections.csv HTTP/1.1");
c2.print("Host: ");
c2.println(SITE_URL);
c2.print("deviceKey: ");
c2.println(DEVICEKEY);
c2.println("Connection: close");
c2.println();
delay(500);
int errorcount = 0;
while (!c2.available())
{
Serial.println("waiting HTTP response: ");
Serial.println(errorcount);
errorcount += 1;
if (errorcount > 10) {
c2.stop();
return;
}
delay(100);
}
int err = http.skipResponseHeaders();
int bodyLen = http.contentLength();
Serial.print("Content length is: ");
Serial.println(bodyLen);
Serial.println();
char c;
int ipcount = 0;
int count = 0;
int separater = 0;
while (c2)
{
int v = c2.read();
if (v != -1)
{
c = v;
Serial.print(c);
connection_info[ipcount]=c;
if(c==',')
separater=ipcount;
ipcount++;
}
else
{
Serial.println("no more content, disconnect");
c2.stop();
}
}
Serial.print("The connection info: ");
Serial.println(connection_info);
int i;
for(i=0;i<separater;i++)
{ ip[i]=connection_info[i];
}
int j=0;
separater++;
for(i=separater;i<21 && j<5;i++)
{ port[j]=connection_info[i];
j++;
}
Serial.println("The TCP Socket connection instructions:");
Serial.print("IP: ");
Serial.println(ip);
Serial.print("Port: ");
Serial.println(port);
portnum = atoi (port);
Serial.println(portnum);
} //getconnectInfo
void uploadstatus(){
//calling RESTful API to upload datapoint to MCS to report LED status
Serial.println("calling connection");
LWiFiClient c2;
while (!c2.connect(SITE_URL, 80))
{
Serial.println("Re-Connecting to WebSite");
delay(1000);
}
delay(100);
if(digitalRead(7)==1)
upload_led = "LED_Display,,1";
else
upload_led = "LED_Display,,0";
int thislength = upload_led.length();
HttpClient http(c2);
c2.print("POST /mcs/v2/devices/");
c2.print(DEVICEID);
c2.println("/datapoints.csv HTTP/1.1");
c2.print("Host: ");
c2.println(SITE_URL);
c2.print("deviceKey: ");
c2.println(DEVICEKEY);
c2.print("Content-Length: ");
c2.println(thislength);
c2.println("Content-Type: text/csv");
c2.println("Connection: close");
c2.println();
c2.println(upload_led);
delay(500);
int errorcount = 0;
while (!c2.available())
{
Serial.print("waiting HTTP response: ");
Serial.println(errorcount);
errorcount += 1;
if (errorcount > 10) {
c2.stop();
return;
}
delay(100);
}
int err = http.skipResponseHeaders();
int bodyLen = http.contentLength();
Serial.print("Content length is: ");
Serial.println(bodyLen);
Serial.println();
while (c2)
{
int v = c2.read();
if (v != -1)
{
Serial.print(char(v));
}
else
{
Serial.println("no more content, disconnect");
c2.stop();
}
}
}
void connectTCP(){
//establish TCP connection with TCP Server with designate IP and Port
c.stop();
Serial.println("Connecting to TCP");
Serial.println(ip);
Serial.println(portnum);
while (0 == c.connect(ip, portnum))
{
Serial.println("Re-Connecting to TCP");
delay(1000);
}
Serial.println("send TCP connect");
c.println(tcpdata);
c.println();
Serial.println("waiting TCP response:");
} //connectTCP
void heartBeat(){
Serial.println("send TCP heartBeat");
c.println(tcpdata);
c.println();
} //heartBeat
void loop()
{
float h,t,temperature;
dht.readHT(&h,&t);
temperature=t-17;
Serial.println("temp:");
Serial.println(temperature);
Serial.println("LGPS loop");
LGPS.getData(&info);
Serial.println((char*)info.GPGGA);
parseGPGGA((const char*)info.GPGGA);
delay(2000);
val = analogRead(A0);
Serial.println(val);
constrain(val,320,590);// sets the upper and lower limit for val
int mapval= map (val,320,590,100,0); // maps the val values in between 0&100, this is %reading
uploadsensorValues(String(val),"moisture"); // one sample value
uploadsensorValues(String(mapval),"moisture_per");
uploadstatusGPS();
uploadsensorValues(String(temperature),"temperature");
delay(1000);
Serial.println(mapval);
if( mapval>=100)
{
mapval=100;
Serial.println("100% moist");
digitalWrite(7,LOW);
angle = 0;
servo.write(angle);
delay(500);
//motordrive("off");
}
else if( mapval>75 && mapval<=99)
{
Serial.print(mapval);
Serial.println("% moist");
digitalWrite(7,LOW);
angle = 36;
servo.write(angle);
delay(500);
//motordrive("off");
}
else if( mapval>50 && mapval<=75)
{
Serial.print(mapval);
Serial.println("% moist");
digitalWrite(7,LOW);
angle = 72;
servo.write(angle);
delay(500);
//motordrive("off");
}
else if( mapval>25 && mapval<=50)
{
Serial.print(mapval);
Serial.println("% moist");
digitalWrite(7,HIGH);
angle = 108;
servo.write(angle);
delay(500);
//motordrive("off");
}
else if( mapval>0 && mapval<=25)
{
Serial.print(mapval);
Serial.println("% moist");
digitalWrite(7,HIGH);
angle = 144;
servo.write(angle);
delay(500);
//motordrive("off");
}
else if( mapval==0)
{
Serial.print(mapval);
Serial.println("% moist");
digitalWrite(7,HIGH);
angle = 180;
servo.write(angle);
delay(500);
//motordrive("off");
}
//Check for TCP socket command from MCS Server
String tcpcmd="";
while (c.available())
{
int v = c.read();
if (v != -1)
{
Serial.print((char)v);
tcpcmd += (char)v;
if (tcpcmd.substring(40).equals(tcpcmd_led_on)){
digitalWrite(7, HIGH);
angle=180;
servo.write(angle);
delay(10000);
Serial.print("Switch LED ON ");
tcpcmd="";
}else if(tcpcmd.substring(40).equals(tcpcmd_led_off)){
digitalWrite(7, LOW);
angle=0;
servo.write(angle);
delay(10000);
Serial.print("Switch LED OFF");
tcpcmd="";
}
}
}
LDateTime.getRtc(&rtc);
if ((rtc - lrtc) >= per) {
heartBeat();
lrtc = rtc;
}
//Check for report datapoint status interval
LDateTime.getRtc(&rtc1);
if ((rtc1 - lrtc1) >= per1) {
uploadstatus();
lrtc1 = rtc1;
}
}
void uploadsensorValues(String value,String varid){
//calling RESTful API to upload datapoint to MCS to report LED status
Serial.println("calling connection");
LWiFiClient c2;
while (!c2.connect(SITE_URL, 80))
{
Serial.println("Re-Connecting to WebSite");
delay(1000);
}
delay(100);
Serial.println("Connected to MCS");
dataToUpload = "";
dataToUpload = varid+",,"+value;
Serial.println(dataToUpload);
String data = "";
int dataLength = data.length();
int thislength = dataToUpload.length();
HttpClient http(c2);
c2.print("POST /mcs/v2/devices/");
c2.print(DEVICEID);
c2.println("/datapoints.csv HTTP/1.1");
c2.print("Host: ");
c2.println(SITE_URL);
c2.print("deviceKey: ");
c2.println(DEVICEKEY);
c2.print("Content-Length: ");
c2.println(thislength);
c2.println("Content-Type: text/csv");
c2.println("Connection: close");
c2.println();
c2.println(dataToUpload);
c2.println();
c2.println(data);
c2.println();
delay(500);
int errorcount = 0;
while (!c2.available())
{
Serial.print("waiting HTTP response: ");
Serial.println(errorcount);
errorcount += 1;
if (errorcount > 10) {
c2.stop();
return;
}
delay(100);
}
int err = http.skipResponseHeaders();
int bodyLen = http.contentLength();
Serial.print("Content length is: ");
Serial.println(bodyLen);
Serial.println();
while (c2)
{
int v = c2.read();
if (v != -1)
{
Serial.print(char(v));
}
else
{
Serial.println("no more content, disconnect");
c2.stop();
}
}
}
void uploadstatusweather(){
//calling RESTful API to upload datapoint to MCS to report LED status
Serial.println("calling connection");
LWiFiClient c2;
while (!c2.connect(SITE_URL, 80))
{
Serial.println("Re-Connecting to WebSite");
delay(1000);
}
int val1 = analogRead(A0);
Serial.println(val1);
constrain(val1,320,590);// sets the upper and lower limit for val
int mapval1= map (val1,320,590,100,0);
if (val1<10)
{
upload_weather="weather,,1";
Serial.println("HOT weather");
}
else if (mapval1<30 && mapval1>=10)
{
upload_weather="weather,,2";
Serial.println("SUNNY weather");
}
else if (mapval1<70 && mapval1>=30)
{
upload_weather="weather,,3";
Serial.println("DRIZZLING");
}
else if (mapval1<=100 && mapval1>=70)
{
upload_weather="weather,,4";
Serial.println("RAINING");
}
uploadsensorValues(String(mapval1),"weather");
int thislength1 = upload_weather.length();
HttpClient http(c2);
c2.print("POST /mcs/v2/devices/");
c2.print(DEVICEID);
c2.println("/datapoints.csv HTTP/1.1");
c2.print("Host: ");
c2.println(SITE_URL);
c2.print("deviceKey: ");
c2.println(DEVICEKEY);
c2.print("Content-Length: ");
c2.println(thislength1);
c2.println("Content-Type: text/csv");
c2.println("Connection: close");
c2.println();
c2.println(upload_weather);
delay(500);
int errorcount = 0;
while (!c2.available())
{
Serial.print("waiting HTTP response: ");
Serial.println(errorcount);
errorcount += 1;
if (errorcount > 10) {
c2.stop();
return;
}
delay(100);
}
int err = http.skipResponseHeaders();
int bodyLen = http.contentLength();
Serial.print("Content length is: ");
Serial.println(bodyLen);
Serial.println();
while (c2)
{
int v = c2.read();
if (v != -1)
{
Serial.print(char(v));
}
else
{
Serial.println("no more content, disconnect");
c2.stop();
}
}
}
void uploadstatusGPS(){
//calling RESTful API to upload datapoint to MCS to report LED status
Serial.println("calling connection");
LWiFiClient c2;
double lat=latitude/100;
double longi=longitude/100;
while (!c2.connect(SITE_URL, 80))
{
Serial.println("Re-Connecting to WebSite");
delay(1000);
}
String upload_GPS = "GPS_Location,,"+String(lat)+","+String(longi)+","+String(altitude);
//String upload_GPS = "GPS_Location,,12.58,77.36,0";
//uploadsensorValues(upload_GPS,"GPS_Location");
Serial.println(upload_GPS);
int thislength2 = upload_GPS.length();
HttpClient http(c2);
c2.print("POST /mcs/v2/devices/");
c2.print(DEVICEID);
c2.println("/datapoints.csv HTTP/1.1");
c2.print("Host: ");
c2.println(SITE_URL);
c2.print("deviceKey: ");
c2.println(DEVICEKEY);
c2.print("Content-Length: ");
c2.println(thislength2);
c2.println("Content-Type: text/csv");
c2.println("Connection: close");
c2.println();
c2.println(upload_GPS);
delay(500);
int errorcount = 0;
while (!c2.available())
{
Serial.print("waiting HTTP response: ");
Serial.println(errorcount);
errorcount += 1;
if (errorcount > 10) {
c2.stop();
return;
}
delay(100);
}
int err = http.skipResponseHeaders();
int bodyLen = http.contentLength();
Serial.print("Content length is: ");
Serial.println(bodyLen);
Serial.println();
while (c2)
{
int v = c2.read();
if (v != -1)
{
Serial.print(char(v));
}
else
{
Serial.println("no more content, disconnect");
c2.stop();
}
}
}
Comments
