Our Automated Fish Maid

Our aim is to minimise manpower needed by making use of the M5 stack devices to create a fish farm where most things are automated.

BeginnerShowcase (no instructions)98

Things used in this project

Hardware components

M5Stack Time-of-Flight (ToF) VL53L0X Laser Ranging Unit (MCP4725/)

M5Stack RGB Unit with NeoPixel RGB LED (SK6812)

SG90 Micro-servo motor

M5Stack Light Unit with Photo-resistance

M5Stack FIRE IoT Development Kit (PSRAM 2.0)

M5Stack ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988)

M5Stack I2C Hub 1 to 6 Expansion TCA9548A Module

Story

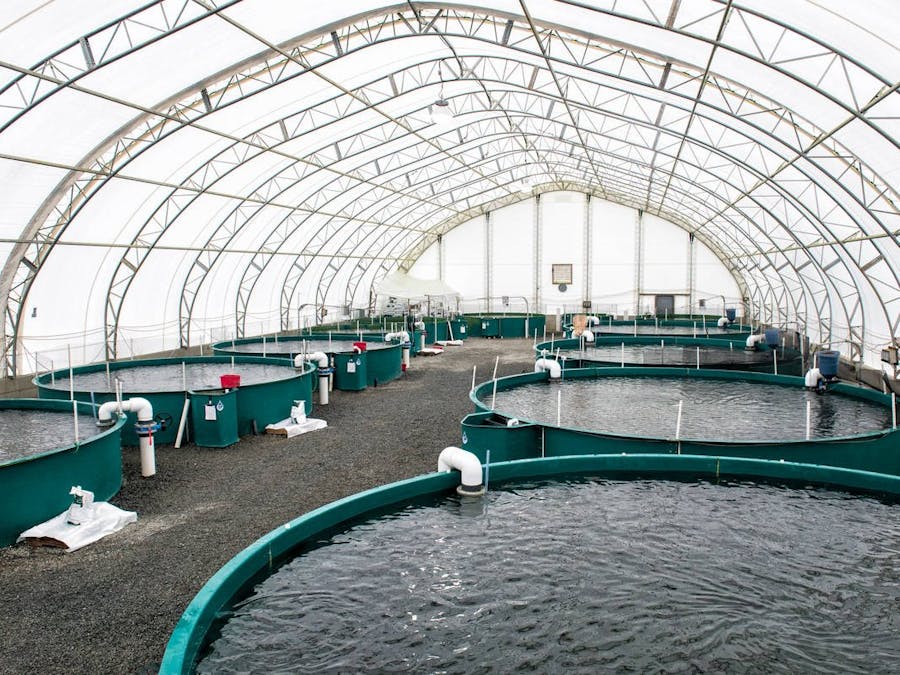

Urban fish farms are slowly losing attraction and fewer people are wanting to work as fish farmers. This trend has led to a lack of manpower to continue the fish farm industry. The project aims to address this issue by developing an automated fish maid that will not require actual people to be there.

Objective

To design a system to reduce manpower needed to maintain fish farms.
To make sure requirements are met to raise and breed fish.
Achieve the goal of 30% of total food production by 2030.

Research

If water is too dirty, fish will die.
Certain fish eggs don't hatch at certain temperatures.
Decrease in people wanting to work as fish farmer.
Lack of space will cause stress on the fish.

Project

Temperature sensor - It monitors the temperature of the water preventing the temperature from rising too much causing the fish to die. If the temperature is fine, the temperature sensor will go into low power mode. If the temperature rises too high, it will turn on and cool the water down by pumping cool water. If the temperature drops too low, it will turn on and warm the water by pumping warmer water.
Water level sensor - It makes sure the water level in the tank is enough for all the fishes.
Water clarity sensor - Make sure the water is not clouded and dirty so it does not affect the fishes.

Main M5Stack flowchart

Secondary M5Stack flowchart

YouTube video:

Project Presentation

You can take a look at our video for the prototype showcase

Code

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import time
import unit

setScreenColor(0x222222)
servo0 = unit.get(unit.SERVO, unit.PORTA)
rgb_7 = unit.get(unit.RGB, unit.PORTB)


mac = None
Data_send = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label0 = M5TextBox(155, 49, "Text", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label1 = M5TextBox(170, 125, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
title0 = M5Title(title="DataReceive", x=3, fgcolor=0xFFFFFF, bgcolor=0xff0047)
label2 = M5TextBox(5, 49, "Mac Address:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label3 = M5TextBox(5, 125, "Data Received:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)




def recv_cb(_):
  global mac,Data_send
  mac, _, Data_send = espnow.recv_data(encoder='str')
  label1.setText(str(Data_send))
  if Data_send == 'Turn On Motor':
    servo0.write_angle(180)
    wait(1)
  elif Data_send == 'Turn Off Motor':
    servo0.write_angle(0)
    wait(1)
  elif Data_send == 'Turn On RGB':
    rgb_7.setColorAll(0xffffff)
    rgb_7.setBrightness(100)
    wait(1)
  elif Data_send == 'Turn Off RGB':
    rgb_7.setBrightness(0)
    wait(1)

  pass
espnow.recv_cb(recv_cb)



label0.setText(str(espnow.get_mac_addr()))

from m5stack import *
from m5ui import *
from uiflow import *
import espnow
import wifiCfg
import time
import unit

setScreenColor(0x222222)
env3_0 = unit.get(unit.ENV3, unit.PAHUB0)
light_0 = unit.get(unit.LIGHT, unit.PORTB)
tof_0 = unit.get(unit.TOF, unit.PAHUB1)


Data_send = None

wifiCfg.wlan_ap.active(True)
wifiCfg.wlan_sta.active(True)
espnow.init()

label6 = M5TextBox(10, 68, "label 6", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label7 = M5TextBox(10, 146, "label 7", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label8 = M5TextBox(8, 213, "label 8", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label0 = M5TextBox(10, 46, "Water Temperature:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label1 = M5TextBox(174, 46, "label 1", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label2 = M5TextBox(10, 122, "Water Level:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label3 = M5TextBox(113, 122, "label 3", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label4 = M5TextBox(10, 195, "Water clarity:", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label5 = M5TextBox(113, 195, "label 5", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label9 = M5TextBox(10, 0, "label 9", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label10 = M5TextBox(11, 19, "label 10", lcd.FONT_Default, 0xFFFFFF, rotate=0)


# Describe this function...
def Output():
  global Data_send
  if btnA.wasPressed():
    Data_send = 'Turn On RGB'
    label9.setText(str(Data_send))
    espnow.send(id=1, data=str('Turn On RGB'))
    wait(3)
  elif btnA.pressFor(0.8):
    Data_send = 'Turn Off RGB'
    label9.setText(str(Data_send))
    espnow.send(id=1, data=str('Turn Off RGB'))
    wait(3)
  elif btnB.wasPressed():
    Data_send = 'Turn On Motor'
    label9.setText(str(Data_send))
    espnow.send(id=1, data=str('Turn On Motor'))
    wait(3)
  elif btnB.pressFor(0.8):
    Data_send = 'Turn Off Motor'
    espnow.send(id=1, data=str('Turn Off Motor'))
    label9.setText(str(Data_send))
    wait(3)

# Describe this function...
def water_level():
  global Data_send
  if (tof_0.distance) / 1000 >= 1:
    label3.setText(str((tof_0.distance) / 1000))
    label7.setText('Water level is normal')
  elif (tof_0.distance) / 1000 < 1:
    label3.setText(str((tof_0.distance) / 1000))
    label7.setText('Water level is abnormal, please check ')

# Describe this function...
def water_temp():
  global Data_send
  label1.setText(str(env3_0.temperature))
  if (env3_0.temperature) < 25:
    label6.setText('Temperature is lower than usual')
  elif (env3_0.temperature) > 27:
    label6.setText('Temperature is not normal')
  else:
    label6.setText('Temperature is normal')

# Describe this function...
def water_clarity():
  global Data_send
  label5.setText(str(light_0.digitalValue))
  if (light_0.digitalValue) == 1:
    label8.setText('Water is clear')
  else:
    label8.setText('Water is not clear, please turn on water pump')



def send_cb(flag):
  global Data_send
  Data_send = flag
  label10.setText('Yes')

  pass
espnow.send_cb(send_cb)



espnow.add_peer('78:21:84:93:b3:09', id=1)
while True:
  Output()
  water_temp()
  water_clarity()
  water_level()
  wait_ms(2)
