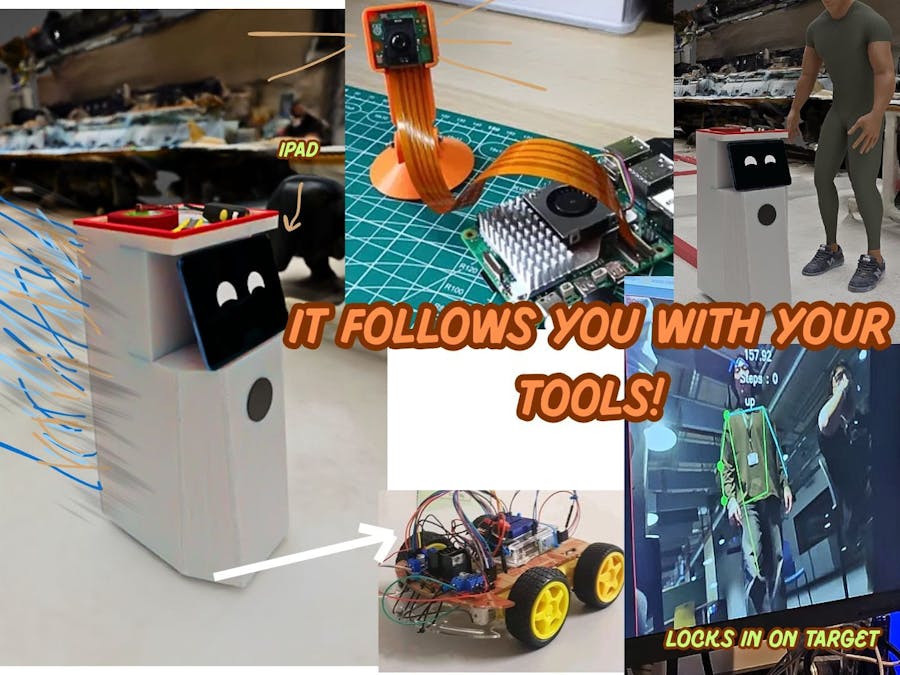

Life-size AI Robot that carries your tools around the lab

import argparse
import multiprocessing
import queue
import sys
import threading
from functools import lru_cache

import cv2
import numpy as np

from picamera2 import MappedArray, Picamera2
from picamera2.devices import IMX500
from picamera2.devices.imx500 import (NetworkIntrinsics,
                                      postprocess_nanodet_detection)


class Detection:
    def __init__(self, coords, category, conf, metadata):
        """Create a Detection object, recording the bounding box, category and confidence."""
        self.category = category # The important category!
        self.conf = conf
        self.box = imx500.convert_inference_coords(coords, metadata, picam2)

def follow_target(detection) :
    """FUNCTION TO HANDLE FOLLOWING AFTER PERSON IS DETECTED"""

def parse_detections(metadata: dict):
    """Parse the output tensor into a number of detected objects, scaled to the ISP output."""
    bbox_normalization = intrinsics.bbox_normalization
    threshold = args.threshold
    iou = args.iou
    max_detections = args.max_detections

    np_outputs = imx500.get_outputs(metadata, add_batch=True)
    input_w, input_h = imx500.get_input_size()
    if np_outputs is None:
        return None
    if intrinsics.postprocess == "nanodet":
        boxes, scores, classes = \
            postprocess_nanodet_detection(outputs=np_outputs[0], conf=threshold, iou_thres=iou,
                                          max_out_dets=max_detections)[0]
        from picamera2.devices.imx500.postprocess import scale_boxes
        boxes = scale_boxes(boxes, 1, 1, input_h, input_w, False, False)
    else:
        boxes, scores, classes = np_outputs[0][0], np_outputs[1][0], np_outputs[2][0]
        if bbox_normalization:
            boxes = boxes / input_h

        boxes = np.array_split(boxes, 4, axis=1)
        boxes = zip(*boxes)

    detections = [
        Detection(box, category, score, metadata)
        for box, score, category in zip(boxes, scores, classes)
        if score > threshold
    ]

    for detection in detections:
        if detection.category == 0:  # Check if the category is "person"
            follow_target(detection)  # Call the trigger function

    return detections


@lru_cache
def get_labels():
    labels = intrinsics.labels

    if intrinsics.ignore_dash_labels:
        labels = [label for label in labels if label and label != "-"]
    return labels


def draw_detections(jobs):
    """Draw the detections for this request onto the ISP output."""
    labels = get_labels()
    # Wait for result from child processes in the order submitted.
    last_detections = []
    while (job := jobs.get()) is not None:
        request, async_result = job
        detections = async_result.get()
        if detections is None:
            detections = last_detections
        last_detections = detections
        with MappedArray(request, 'main') as m:
            for detection in detections:
                x, y, w, h = detection.box
                label = f"{labels[int(detection.category)]} ({detection.conf:.2f})"

                # Calculate text size and position
                (text_width, text_height), baseline = cv2.getTextSize(label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, 1)
                text_x = x + 5
                text_y = y + 15

                # Create a copy of the array to draw the background with opacity
                overlay = m.array.copy()

                # Draw the background rectangle on the overlay
                cv2.rectangle(overlay,
                              (text_x, text_y - text_height),
                              (text_x + text_width, text_y + baseline),
                              (255, 255, 255),  # Background color (white)
                              cv2.FILLED)

                alpha = 0.3
                cv2.addWeighted(overlay, alpha, m.array, 1 - alpha, 0, m.array)

                # Draw text on top of the background
                cv2.putText(m.array, label, (text_x, text_y),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 0, 255), 1)

                # Draw detection box
                cv2.rectangle(m.array, (x, y), (x + w, y + h), (0, 255, 0), thickness=2)

            if intrinsics.preserve_aspect_ratio:
                b_x, b_y, b_w, b_h = imx500.get_roi_scaled(request)
                color = (255, 0, 0)  # red
                cv2.putText(m.array, "ROI", (b_x + 5, b_y + 15), cv2.FONT_HERSHEY_SIMPLEX, 0.5, color, 1)
                cv2.rectangle(m.array, (b_x, b_y), (b_x + b_w, b_y + b_h), (255, 0, 0, 0))

            cv2.imshow('IMX500 Object Detection', m.array)
            cv2.waitKey(1)
        request.release()


def get_args():
    parser = argparse.ArgumentParser()
    parser.add_argument("--model", type=str, help="Path of the model",
                        default="/usr/share/imx500-models/imx500_network_ssd_mobilenetv2_fpnlite_320x320_pp.rpk")
    parser.add_argument("--fps", type=int, help="Frames per second")
    parser.add_argument("--bbox-normalization", action=argparse.BooleanOptionalAction, help="Normalize bbox")
    parser.add_argument("--threshold", type=float, default=0.55, help="Detection threshold")
    parser.add_argument("--iou", type=float, default=0.65, help="Set iou threshold")
    parser.add_argument("--max-detections", type=int, default=10, help="Set max detections")
    parser.add_argument("--ignore-dash-labels", action=argparse.BooleanOptionalAction, help="Remove '-' labels ")
    parser.add_argument("--postprocess", choices=["", "nanodet"],
                        default=None, help="Run post process of type")
    parser.add_argument("-r", "--preserve-aspect-ratio", action=argparse.BooleanOptionalAction,
                        help="preserve the pixel aspect ratio of the input tensor")
    parser.add_argument("--labels", type=str,
                        help="Path to the labels file")
    parser.add_argument("--print-intrinsics", action="store_true",
                        help="Print JSON network_intrinsics then exit")
    return parser.parse_args()


if __name__ == "__main__":
    args = get_args()

    # This must be called before instantiation of Picamera2
    imx500 = IMX500(args.model)
    intrinsics = imx500.network_intrinsics
    if not intrinsics:
        intrinsics = NetworkIntrinsics()
        intrinsics.task = "object detection"
    elif intrinsics.task != "object detection":
        print("Network is not an object detection task", file=sys.stderr)
        exit()

    # Override intrinsics from args
    for key, value in vars(args).items():
        if key == 'labels' and value is not None:
            with open(value, 'r') as f:
                intrinsics.labels = f.read().splitlines()
        elif hasattr(intrinsics, key) and value is not None:
            setattr(intrinsics, key, value)

    # Defaults
    if intrinsics.labels is None:
        with open("assets/coco_labels.txt", "r") as f:
            intrinsics.labels = f.read().splitlines()
    intrinsics.update_with_defaults()

    if args.print_intrinsics:
        print(intrinsics)
        exit()

    picam2 = Picamera2(imx500.camera_num)
    main = {'format': 'RGB888'}
    config = picam2.create_preview_configuration(main, controls={"FrameRate": intrinsics.inference_rate}, buffer_count=12)

    imx500.show_network_fw_progress_bar()
    picam2.start(config, show_preview=False)
    if intrinsics.preserve_aspect_ratio:
        imx500.set_auto_aspect_ratio()

    pool = multiprocessing.Pool(processes=4)
    jobs = queue.Queue()

    thread = threading.Thread(target=draw_detections, args=(jobs,))
    thread.start()

    while True:
        # The request gets released by handle_results
        request = picam2.capture_request()
        metadata = request.get_metadata()
        if metadata:
            async_result = pool.apply_async(parse_detections, (metadata,))
            jobs.put((request, async_result))
        else:
            request.release()
