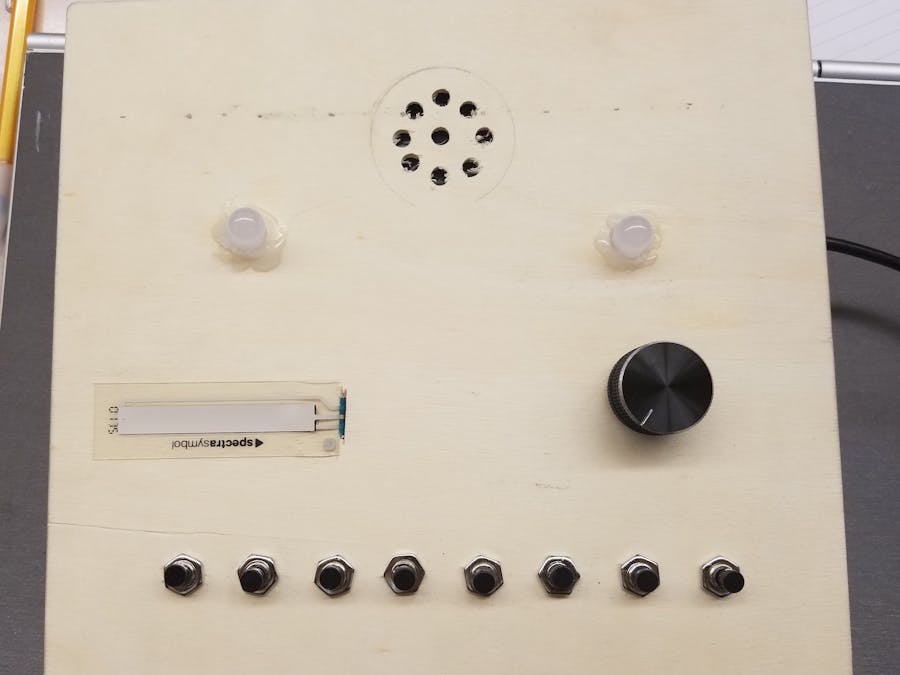

Interactive Toddler Music Box Toy

Musical toy for toddlers.

IntermediateFull instructions provided4,095
Interactive Toddler Music Box Toy

Things used in this project

Hardware components

SparkFun 2 pin momentary button
×8
SparkFun thin speaker
×1
RGB Diffused Common Cathode
RGB Diffused Common Cathode
×2
Arduino UNO
Arduino UNO
×1
Rotary potentiometer (generic)
Rotary potentiometer (generic)
×1
SparkFun Black Metal Knob - 14x24mm
×1
SparkFun SoftPot Membrane Potentiometer - 50mm
×1
Breadboard (generic)
Breadboard (generic)
×1
Resistor 330 ohm
Resistor 330 ohm
×3

Hand tools and fabrication machines

Cordless drill
Soldering iron (generic)
Soldering iron (generic)
Hot glue gun (generic)
Hot glue gun (generic)

Story

Read more

Schematics




Wiring Diagram For The Project (Note: Buttons displayed are not the same as those used in the project)

Code

Music Box Toy Code

Arduino
const int butt0 = 0;
const int butt1 = 8;
const int butt2 = 2;
const int butt3 = 3;
const int butt4 = 4;
const int butt5 = 5;
const int butt6 = 6;
const int butt7 = 7;
const int pot = 2;
const int soft = 1;
const int buzzerPin = 12;


void setup() {
  //start serial connection
  Serial.begin(9600);
  pinMode(butt0, INPUT_PULLUP);
  pinMode(butt1, INPUT_PULLUP);
  pinMode(butt2, INPUT_PULLUP);
  pinMode(butt3, INPUT_PULLUP);
  pinMode(butt4, INPUT_PULLUP);
  pinMode(butt5, INPUT_PULLUP);
  pinMode(butt6, INPUT_PULLUP);
  pinMode(butt7, INPUT_PULLUP);
  pinMode(buzzerPin, OUTPUT);


}

void loop() {
  //read the pushbutton value into a variable
  int val0 = digitalRead(butt0);
  int val1 = digitalRead(butt1);
  int val2 = digitalRead(butt2);
  int val3 = digitalRead(butt3);
  int val4 = digitalRead(butt4);
  int val5 = digitalRead(butt5);
  int val6 = digitalRead(butt6);
  int val7 = digitalRead(butt7);
  int potVal = analogRead(pot);
  int full = potVal/4;
  int half = potVal/8;
  int softVal = analogRead(soft);
  int shift;
  Serial.println(softVal);

  if (softVal >= 15)
  {
    shift = (softVal - 500)/5;
  }
  else
  {
     shift == 0;
  }
  if (val0 == LOW)
  {
    analogWrite(9, full);
    analogWrite(10, 0);
    analogWrite(11, 0);
    tone(buzzerPin, 220.6 + shift, 100);
  }
  else if (val1 == LOW)
  {
    analogWrite(9, full);
    analogWrite(10, half);
    analogWrite(11, 0);
    tone(buzzerPin, 246.9 + shift, 100);
  }
  else if (val2 == LOW)
  {
    analogWrite(9, full);
    analogWrite(10, full);
    analogWrite(11, 0);
    tone(buzzerPin, 261.6 + shift, 100);
  }
  else if (val3 == LOW)
  {
    analogWrite(9, 0);
    analogWrite(10, full);
    analogWrite(11, 0);
    tone(buzzerPin, 293.7 + shift, 100);
  }
  else if (val4 == LOW)
  {
    analogWrite(9, 0);
    analogWrite(10, full);
    analogWrite(11, full);
    tone(buzzerPin, 329.6 + shift, 100);
  }
  else if (val5 == LOW)
   {
    analogWrite(9, 0);
    analogWrite(10, 0);
    analogWrite(11, full);
    tone(buzzerPin, 349.2 + shift, 100);
  }
  else if (val6 == LOW)
    {
    analogWrite(9, full);
    analogWrite(10, 0);
    analogWrite(11, full);
    tone(buzzerPin, 392 + shift, 100);
  }
  else if (val7 == LOW)
    {
    analogWrite(9, full);
    analogWrite(10, full);
    analogWrite(11, full);
    tone(buzzerPin, 440 + shift , 100);
  }
  else
  {
    analogWrite(9, 0);
    analogWrite(10, 0);
    analogWrite(11, 0);
  }
}
