BLEing

This demo project introduces Hexabitz Bluetooth/BLE module (H23R10) and a demo Android App used to control a variety of arrays. You can easily control different shapes and types of arrays by changing the ID of modules your are talking with. The app and BLE module will set you up for success on your IoT and home automation projects! We will also demo, step-by-step, the process to update smartBASIC scripts running on the embedded BT900 module in case you want to write your own scripts

Details

Controlling your projects from a smartphone is an awesome feature that you can easily add with Hexabitz H23R10 Bluetooth/BLE module. We built a really simple Android app to control few modules -nothing fancy- so that anyone can take the App and morph it to her own needs. The App source code is available in the software section.

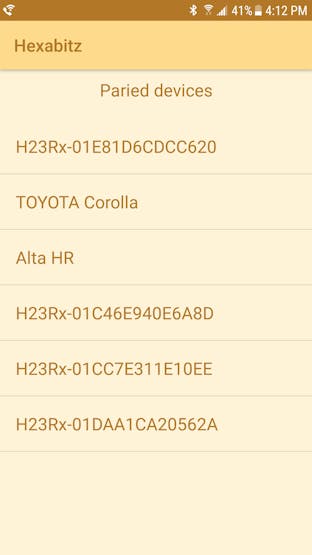

Once you open the App, a list of nearby Bluetooth devices is displayed. You need to pick your BLE module and pair with it.

The app has multiple tabs, one for example controls the H01R00 RGB LED module via a color picker, RGB sliders and toggle buttons.

Another tab controls the solid state relay module (H0FR60) via toggle buttons and a timeout timer: We will add later more tabs with time to control and read signals from other modules.

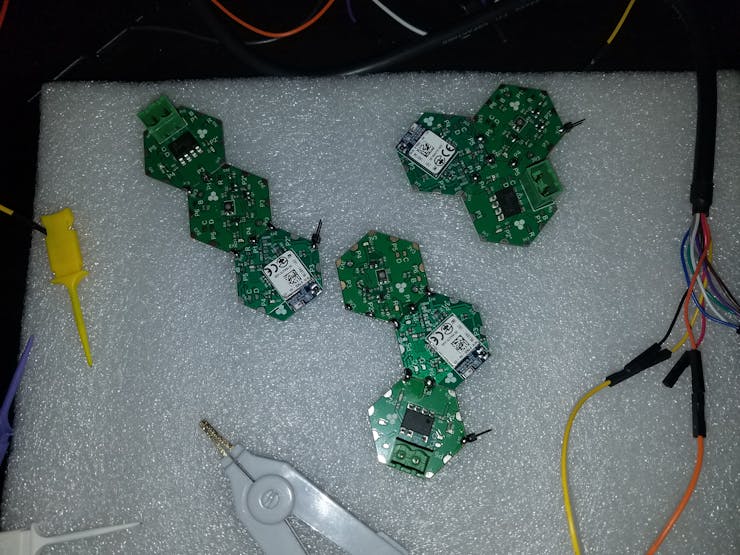

Each tab has a text box to enter module ID so that you can easily control different array shapes. Just build the array, run exploration CLI command and then enter the module ID in the app and start the action!
