Build your own IoT platform using node. js and ESP8266

If you are a hardware enthusiast then you might have blinked an LED through WiFi.

maybe on your local network or over the internet using third-party services like Blynk or ThingSpeak.

But It either works only on your local network or You have to use some 3rd party solutions.

In this article, I am going to guide you on how to build your own IoT minimal platform, that works over the internet.

Our platform will have three parts,

• The User Interface ie. front end
• Server ie back end
• Hardware

And all three parts of the application should be able to communicate with each other in real-time.

The obvious protocol for hardware-based products/projects is MQTT.

MQTT is a lite weight communication protocol designed to run even on low-power hardware. But today we are NOT USING MQTT, for the sake of simplicity and the cost of running the server.

There are many web hosting platforms like Heroku, which we can use free of cost. You don't even need a credit card to sign up for them.

MQTT won't work on these PaaS (Platform as a Service) providers.

So we will use the next best thing, Introducing Web Sockets.

It's not as lite as MQTT but the MCU that we use is powerful enough to handle it.

Below illustrated image is how the system will communicate

Now that we have figured out the protocol

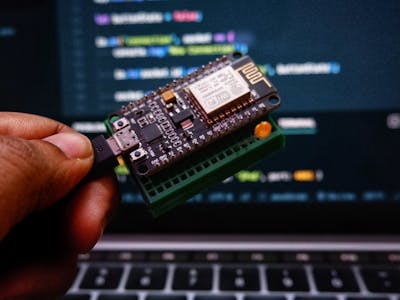

We will be using our trusty old friend ESP8266, it's very popular, cheap and most probably you have one NodeMCU lying around.

And we will use Arduino IDE to program our ESP.

Now let's talk about our server, we will build a node.js [add link] application,

We will take the help of two node.js libraries to create our server.

express.js for HTTP connections and Socket.io for WebSockets connections.

The front end of our platform is plain HTML, CSS and a bit of JavaScript. Nothing fancy like React, Angular or Vue (But you can expect a tutorial in future).

Our UI is simple, it just has a button, we will listen to this button click using javascript and update the server over WebSockets.

Coding Time

Server code walk-through

Let's begin with coding our server.

You need to download and install node.js on your machine.

Based on the Operating system, the installation process may vary.

Once you have done this, let's clone the project codebase.

git clone git@github.com:B45i/ESP-Websocket-Switch.git

Or you can download and extract it from GitHub (But make sure that you have installed git on your machine, we need that for later steps)

Just want to browse the code? try this online code editor.

Once you do this, open the newly created folder in your favourite code editor, I’ll be using VS Code.

You will get to see something like this:

The firmware folder has our Arduino code, and the src folder contains our server and UI code.

package.json file has information about the libraries that we are going to need, though it's not installed in our folder.

Open our project folder in the terminal and type npm i (make sure your terminal points to the location with the package.json file)

This will install all the necessary libraries.

If you take a look at the script section of package.json, you can see commands like this:

"scripts": {
        "dev": "nodemon src/app.js",
        "start": "node src/app.js"
}

we can run these commands by typing npm run dev or npm run start.

npm run dev will run our server in development mode, ie, it will listen for any file changes and re-run the server.

amal@Amals-MacBook-Pro esp-socket % npm run dev
> esp-socket@1.0.0 dev
> nodemon src/app.js
[nodemon] 2.0.19
[nodemon] to restart at any time, enter `rs`
[nodemon] watching path(s): *.*
[nodemon] watching extensions: js,mjs,json
[nodemon] starting `node src/app.js`
Running on :  { address: '::', family: 'IPv6', port: 4001 }

You can see the application by opening http://localhost:4001/

When we deploy our code, the server will be run using npm run start command.

Both of these commands point to app.js in src folder.

Let's take a look at that file.

app.js file starts like this

import express from 'express';
import http from 'http';
import { Server } from 'socket.io';

Here we are importing all the libraries we are going to use.

Please note that here I'm using ES6 import statements, in the package.json file set type as module to enable this.

When we deploy our code to a platform like Heroku, the port in which our server is going to run will be coming from an environment variable called PORT.

const PORT = process.env.PORT || 4001;

In local, the environment variable will be empty, so if it's empty we will set the port as 4001.

now let's configure express (node.js HTTP framework) and Socket.io (WebSocket library)

const app = express();
const httpServer = http.createServer(app);
const io = new Server(httpServer, { cors: { origin: '*' } });

We need to send our UI HTML / CSS and Javascript files when a browser sends a request.

This is done using expresse's staticmiddleware

app.use(express.static('src/ui'));

We need to maintain our button's state in the server, this is done using buttonState.

let buttonState = false;

Rest of the code is to manage our WebSocket connection.

io.on('connection', socket => {
	console.log('New Connection');
	io.to(socket.id).emit('buttonState', buttonState);
	.
	.
	.
}

This code gets executes when a new WS client is connected to the server.

Inside this arrow function, we will write the rest of our WS-related code.

WebSocket is event bases, whenever you want to send some data, you propagate it as an event, and attach some information to it.

This will be much clearer when we take look at our UI code.

We need to tell our clients the current state of the button when they join so that they can be in sync.

io.to(socket.id).emit('buttonState', buttonState);

this piece of code takes the id of the newly joined client and sends the current state of the button to it.

Inside the connection callback function, you can see code related to various WebSocket events

socket.on('disconnect', () => {
        console.log('Disconnected');
    });

    socket.on('buttonState', value => {
				buttonState = value;
        socket.broadcast.emit('buttonState', value);
    });

The first one is disconnect event when a client gets disconnected this event gets fired, we are not going to use this event at this moment.

socket.on('buttonState', value => {
	 			buttonState = value;
        socket.broadcast.emit('buttonState', value);
    });

This is the code that is responsible to connect our UI and hardware.

When the user clicks the button on the UI, our frontend javascript code fires an event (buttonState)

That will execute the above piece of code.

First, we will update buttonState variable then we take this value and send it to all other clients except for the one from which it originated using socket.broadcast.emit('buttonState', value);

We need to serve our express app on the port that was specified (4001 on local), This code does exactly that.

UI Code walkthrough

Our UI code resides in src/ui folder.

You will get to see three files, index.htmlindex.js and style.css

HTML and CSS files are very basic, it just contains and style for the button.

So let's take a look at the JS file.

We need to initialise the socket.io object, this is done by calling the io() function.

const socket = io();

We need to get the button element using JS so that we can attach an event listener to it.

const toggleBtn = document.getElementById('toggleBtn');

we will declare a variable called buttonState that represents our button's state in the UI, we flip values of this variable when the user clicks the button.

now we will attach a click event and listen to these button clicks.

toggleBtn.addEventListener('click', () => {
    buttonState = !buttonState;
    updateUI();
    socket.emit('buttonState', buttonState);
});

we will negate the buttonState variables value if it's true then it becomes false. and vice versa.

then we call the updateUI() function ( we will take a look at this function in a moment)

Till now our changes are on the UI itself, the server is not aware of it.

We need to tell our server about the new update, for that we will use

socket.emit('buttonState', buttonState) function.

This will tell the server about the change in our UI, and the server will broadcast this change to other clients.

When the user clicks the buttons, based on the state, its color and text change.

If the button is off, then it will be red in color and when it's on it will be green.

updateUI is responsible for this change.

const updateUI = () => {
    buttonState
        ? toggleBtn.classList.add('on')
        : toggleBtn.classList.remove('on');
    toggleBtn.innerText = buttonState ? 'Turn off' : 'Turn on';
};

if the value of toggleBtn is true then we add a CSS class called on else we remove it. this class is responsible for the colors.

We also change the text inside the button based on the value.

if you run the command npm run dev in the terminal and open localhost:4001 in your browser, you should be able to see our application UI.

If you open the same address in multiple tabs, you can see the UI in one tab gets updated automatically when you click the button on another tab.

Deploying Server

Our app is running, but it's on our local machine, we need to deploy it so that it can be used from anywhere on the internet.

We are going to use a platform called Heroku to host our application.

Create a free account from Heroku: https://signup.heroku.com/dc

Install heroku cli from https://devcenter.heroku.com/articles/heroku-cli

we will use this command-line utility to manage our app.

Make sure that git and Heroku is successfully installed on your machine by typing the command heroku in the terminal.

Right now the CLI doesn't know about the account that you created, to connect your CLI and account, type heroku login in a terminal, this will open up a browser window, from which you can sign in to your Heroku account.

heroku login
heroku: Press any key to open up the browser to login or q to exit
 ›   Warning: If browser does not open, visit
 ›   https://cli-auth.heroku.com/auth/browser/***
heroku: Waiting for login...
Logging in... done
Logged in as me@example.com

Now let's create an app on our Heroku account

heroku create

This will create a Heroku app, where we can host our code.

heroku create
Creating sharp-rain-871... done, stack is heroku-18
http://sharp-rain-871.herokuapp.com/ | https://git.heroku.com/sharp-rain-871.git
Git remote heroku added

Deploying our code to Heroku is dead simple, we can do it using a single command.

git push heroku main

Our code will get deployed to the internet once this command is finished executing.

git push heroku main
Counting objects: 488, done.
Delta compression using up to 8 threads.
.
.
.
.
remote: Verifying deploy... done.
To https://git.heroku.com/nameless-savannah-4829.git
 * [new branch]      main -> main

To make sure at least one instance of our app is running, run this command:

heroku ps:scale web=1

To open our web app, run heroku open, this will open our app's URL in a browser.

You should be able to open this from anywhere on the internet.

If you open this URL from another device, you can see the UI gets updated in real-time as you click the button on another device.

Hardware code

Now we are going to code our ESP8266 microcontroller using Arduino IDE.

Make sure that you have installed ESP8266 core and the necessary libraries on your Arduino IDE.

Libraries needed for this project:

• ArduinoJson
• arduinoWebSockets

open firmware/firmware.io file on Arduino IDE.

You have to customize this code a little bit.

#define SSID "Your WiFi SSID"
#define PASSWORD "Your WiFi password"
#define SERVER "esp-socket-switch.herokuapp.com"  // Server URL (without <https://www>)

SSID is the name of your WiFi, and PASSWORD is your wifi password.

You need to copy the URL that u got when you typed heroku open and paste it as SERVER.

Make sure that there is no <http://www> in the URL.

We need to create an Object of the class SocketIOclient

SocketIOclient socketIO;

This object will manage the WebSocket connection on our MCU.

Let's take a look at the setup function now, here we will are going to connect to WiFi, register Output pins and Socket.IO event handler.

For the sake of simplicity, I’ll be using the onboard LED of NodeMCU, you can connect an external LED if you want.

PS: On board LED on NodeMCU is inverted, ie it will light up when the pin is low.

pinMode(LED_BUILTIN, OUTPUT);
Serial.begin(9600);

Hope everyone is familiar with what this piece of code does, we are setting our pin as output and setting the baud rate of serial connection.

Now we will call setupWiFi() function, which will connect the MCU to the WiFi SSID you have specified.

The next two lines are related to Socket.IO

socketIO.begin(SERVER, 80, "/socket.io/?EIO=4");
socketIO.onEvent(socketIOEvent);

Here we will try to connect to the WebSocket server, and register the Socket.IO event handler.

socketIOEvent is our event handler function, let's take a look at that now.

void socketIOEvent(socketIOmessageType_t type, uint8_t* payload, size_t length) {
  switch (type) {
    case sIOtype_DISCONNECT:
      Serial.println("Disconnected!");
      break;

    case sIOtype_CONNECT:
      Serial.printf("Connected to url: %s%s\\n", SERVER, payload);
      socketIO.send(sIOtype_CONNECT, "/");
      break;

    case sIOtype_EVENT:
      messageHandler(payload);
      break;
  }
}

Inside this function, you can see a switch statement, we are not using the connect and disconnect even right now.

But for sIOtype_EVENT event, we are calling messageHandler function, which parses the event data.

void messageHandler(uint8_t* payload) {
  StaticJsonDocument<64> doc;

  DeserializationError error = deserializeJson(doc, payload);

  if (error) {
    Serial.println(error.f_str());
    return;
  }

  String messageKey = doc[0];
  bool value = doc[1];

  if (messageKey == "buttonState") {
    digitalWrite(LED_BUILTIN, value);
  }
}

In this message handler, we are trying to parse the JSON data that we received with the event.

parsed data will be in doc variable, doc[0] will contain the event name and doc[1] will have the value.

if the key is buttonState then we'll switch our pins state to the value we got from the server.

Now when we click the button on the UI, LED should turn on and off.

I hope this small tutorial helped you learn something new.
