Bluetooth Chat

Bongilcheon high school

BeginnerShowcase (no instructions)30 minutes26

Things used in this project

Hardware components

Breadboard (generic)

Arduino 101

LED (generic)

Resistor 100 ohm

Jumper wires (generic)

Tessel Bluetooth Low Energy Module

Software apps and online services

Arduino IDE

Story

This project is "Comuter communicate with cell phone by using arduino"

Download the application "Bluetooth spp pro".

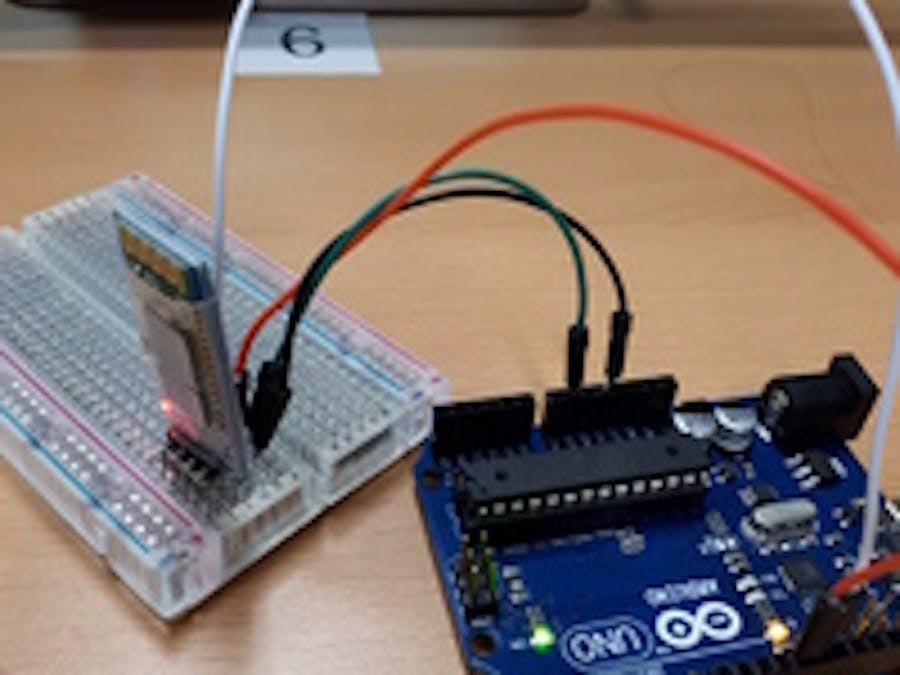

Nest, connect your phone and blutooth module.

Then you can chet computer with phone like these.

You can use this technology in real life.

By chetting, you'll be able to turn the light in your room on and off likely following pictures' LED

#include

SoftwareSerial BTSerial (12, 13); // BTSerial (Rx, Tx); Based on the Aduno board// Connect pin of Aru InnoBoard 12 with Bluetooth module TX pin, pin 13 and RX pinint led = 8; char command; void setup () { Serial.begin (9600); BTSerial.begin (9600); } void loop () { if (BTSerial.available ()) {// If there is an input value from the Bluetooth module, char command = BTSerial.read (); // Save command received in Bluetooth to command Serial.println (char (command)); if (command == 'Y' || command == 'y') { // function call to advance RC car when receiving F or f as input digitalWrite (led, HIGH); } else if (command == 'N' || command == 'n') { digitalWrite (led, LOW); } } }

Code

Untitled file

// How to rename a Bluetooth module
// Enter "AT" on serial monitor and click transfer button. "OK" is displayed on serial monitor if it works normally.
  // Enter new name of Bluetooth module "AT + NAME'New Name ', if OK," OK "is displayed on the serial monitor.
  // If the new name is gledel, write "AT + NAMEgledel"

  #include <SoftwareSerial.h>
  SoftwareSerial BTSerial (12, 13);
  // BTSerial (Rx, Tx); Based on the Aduno board
// Connect pin of Aru InnoBoard 12 with Bluetooth module TX pin, pin 13 and RX pin

void setup () {
    Serial.begin (9600);
    BTSerial.begin (9600);
  }

  void loop () {
     if (BTSerial.available ()) // If there is an input value from the Bluetooth module,
      Serial.write (BTSerial.read ()); // Output to serial monitor
     if (Serial.available ()) // If there is an input from the serial monitor,
      BTSerial.write (Serial.read ()); // send to bluetooth
}
