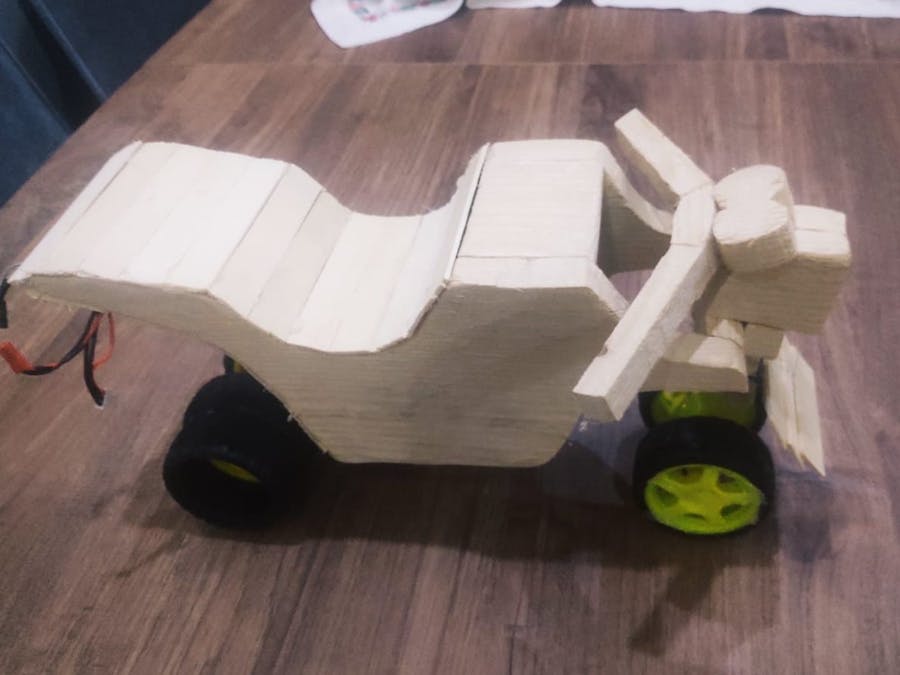

Bluetooth controlled wooden car

Bluetooth controlled wooden car- bluetooth kontrollü ahşap araba.

BeginnerWork in progress38
Bluetooth controlled wooden car

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Dual H-Bridge motor drivers L298
SparkFun Dual H-Bridge motor drivers L298
×1
HC-06 Bluetooth Module
×1
Jumper wires (generic)
Jumper wires (generic)
×1
DC Motor, 12 V
DC Motor, 12 V
×1
Battery, 9 V
Battery, 9 V
×1

Hand tools and fabrication machines

Soldering Iron, Hand Piece
Soldering Iron, Hand Piece

Code

codes

Arduino
#include <Servo.h>
const int motorA1  = 5;  // L298N'in IN3 Girişi
const int motorA2  = 6;  // L298N'in IN1 Girişi
const int motorB1  = 9; // L298N'in IN2 Girişi
const int motorB2  = 10;  // L298N'in IN4 Girişi
Servo servo;

int durum;
int Hiz=255;

void setup() {
    pinMode(motorA1, OUTPUT);
    pinMode(motorA2, OUTPUT);
    pinMode(motorB1, OUTPUT);
    pinMode(motorB2, OUTPUT);
    servo.attach(7);
    int aciDegeri=45;
    Serial.begin(9600);
}

void loop() {
    if(Serial.available() > 0){
      durum = Serial.read();
      servo.write(45);
    }

  // Uygulamadan ayarlanabilen 3 hız seviyesi.(Değerler 0-255 arası)
   if (durum == '1'){
      Hiz=50;}
    else if (durum == '2'){
      Hiz=150;}
    else if (durum == '3'){
      Hiz=255;}

  /******************** İleri *************************/
    if (durum == 'F') {
      analogWrite(motorA1, Hiz); analogWrite(motorA2, 0);
        analogWrite(motorB1, Hiz);      analogWrite(motorB2, 0);
    }
  /****************** İleri Sağ *********************/
    else if (durum == 'I') {
      analogWrite(motorA1,Hiz ); analogWrite(motorA2, 0);
        analogWrite(motorB1,Hiz);    analogWrite(motorB2, 0);
          servo.write(0);
    }
  /****************** İleri Sol ********************/
    else if (durum == 'G') {
        analogWrite(motorA1, Hiz); analogWrite(motorA2, 0);
        analogWrite(motorB1, Hiz);      analogWrite(motorB2, 0);
          servo.write(90);
    }
  /****************** Geri ****************************/
    else if (durum == 'B') {
      analogWrite(motorA1, 0);   analogWrite(motorA2, Hiz);
        analogWrite(motorB1, 0);   analogWrite(motorB2, Hiz);
    }
  /******************* Geri Sağ **********************/
    else if (durum == 'J') {
      analogWrite(motorA1, 0);   analogWrite(motorA2, Hiz);
        analogWrite(motorB1, 0); analogWrite(motorB2, Hiz);
         servo.write(0);
    }
  /******************* Geri Sol *********************/
    else if (durum == 'H') {
      analogWrite(motorA1, 0);   analogWrite(motorA2, Hiz);
        analogWrite(motorB1, 0);   analogWrite(motorB2, Hiz);
        servo.write(90);
    }
  /********************** Sağ *************************/
    else if (durum == 'R') {
      analogWrite(motorA1, 0);   analogWrite(motorA2, 0);
        analogWrite(motorB1, 0); analogWrite(motorB2, 0);
        servo.write(0);
    }
  /*********************** Sol  *************************/
    else if (durum == 'L') {
      analogWrite(motorA1, 0);   analogWrite(motorA2, 0);
        analogWrite(motorB1, 0);   analogWrite(motorB2, 0);
        servo.write(90);
    }
  /********************* Dur ************************/
    else if (durum == 'S'){
        analogWrite(motorA1, 0);  analogWrite(motorA2, 0);
        analogWrite(motorB1, 0);  analogWrite(motorB2, 0);
    }
}
