PEPS Raspberry Pi Expansion Port Status Monitor

Introduction

Remove the need dig through the component box and attach random LEDs, Logic probe or fire up the Scope just to quickly check any GPIO pin output status.

PEPS simple and safe to use Pi Expansion Port Status monitor board will assist with instant visual information on all GPIO port status and is exactly what you need!

Ideal for:

• Experimenters
• Developers
• Education, Schools and Universities
• Classrooms and Workshops
• STEM Learning
• Engineers and Designers
• R&D and Testing
• A super little gadget for the toolbox

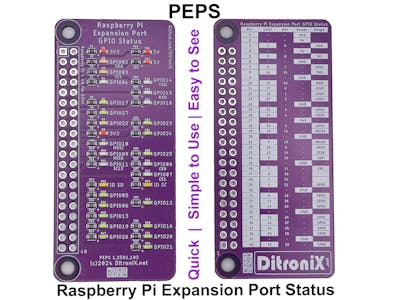

PEPS is a Raspberry Pi Expansion Port Status monitor board, with an LED on each port, that is neatly packaged in a compact PiHat mechanical size.

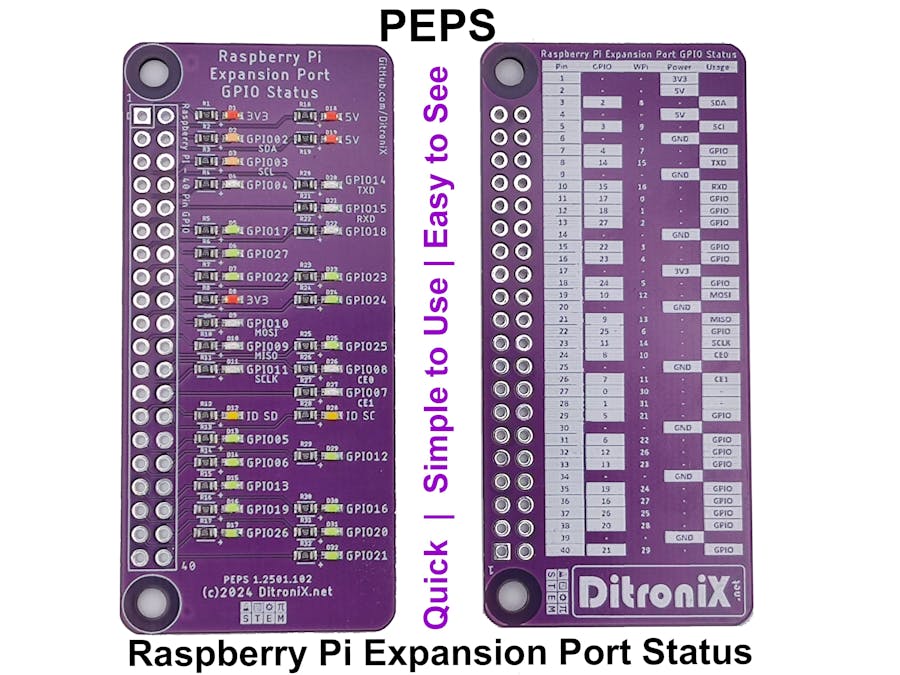

PEPS has a convenient GPIO chart on the rear.

PEPS example with stacking header fitted

PEPS fitted to a Raspberry Pi

PEPS fitted to a Raspberry Pi, stacked on top of an IPEM PiHat, so quick as easy to see GPIO status's and speeding up project testing and development.

Stacking Header Kit (Raspberry Pi PiHat Female Long Pin Header)

• 1 x Raspberry Pi PiHat Female Long 40 (2x20), Pin Header
• 2 x M2.5 15mm Black Nylon Standoffs
• 2 x M2.5 DIN934 Black Nylon Hexagon Nuts
• 2 x 2.5 6mm Round Cross Head Screws

NB A standard M5 Nut Spinner fits the above. The photo also shows two stacking headers together for example.

Specification and Features

• Super easy to use and compact PEPS board is great to quicky and instantly see what ports are high, or low
• Designed to fit on any Raspberry Pi and be left in place as a 'side PiHat', or temporarily placed over the Raspberry Pi Pin Header for fast GPIO debugging
• Each Raspberry Pi GPIO port has a very low current 5mA LED, with 5K1 series resistance, so should not to affect the pin state and minimize current.
• GPIO port LEDs are group coloured to assist with fast and instant identification of a GPIO type and status
• Power 5V and 3V3 LEDS to confirm supplies are up on all four power pins. This is also ideal for other clones of the Raspberry Pi.
• The PEPS board is the same size as a Pi Zero (65 x 30mm)
• PEPS is self powered from the individual GPIO outputs

The stacking Header is available separately. These can be multi-stacked too to give even more headroom. The underside of the PEPS board has a convenient quick lookup of all the Raspberry Pi Pins, Power and GPIOs

PEPS Kit

• 1 x PEPS Raspberry Pi Expansion Port Status Monitor Board

o SMD (Surface Mounted Components) Fully Populated.

o Board Fully Tested

· 1 x Raspberry Pi 40 Pin Stacker Header with Standoff and Fixings.
