EMI Probe Activity for the 12+ Years Old

Learn how to build EMI (Electro Magnetic Interference) probe, detect vampire power and save energy in a fun way!

IntermediateFull instructions provided518

EMI Probe Activity for the 12+ Years Old

Things used in this project

Hardware components

Arduino Nano R3

or Arduino UNO

Story

Introduction

In this tutorial you ll learn how to build you own DIY electromagnetic interference detector.

You ll understand what EMI is, and why it’s important to be aware of it.

EMI is a form of electromagnetic radiation: a combination of electric and magnetic waves traveling outward from anywhere that an electrical power signal is changing or being turned on and off rapidly

Where this gadget excels is spotting “phantom” or “vampire” energy loads.

More correctly called standby power, this is the amount of electricity that constantly flows through some electronic devices, even when they’re supposedly switched off or in standby mode. Devices use standby power on features such as digital clocks, remote control reception, and thermometers.

Relatively weak energy efficiency regulations in the United States result in many devices drawing far more wattage than they need in standby mode.

the EMI detector works by capturing the electrical energy coming into the arduino's analog port, and turning it into a sound via the speaker.

Building the EMI detector

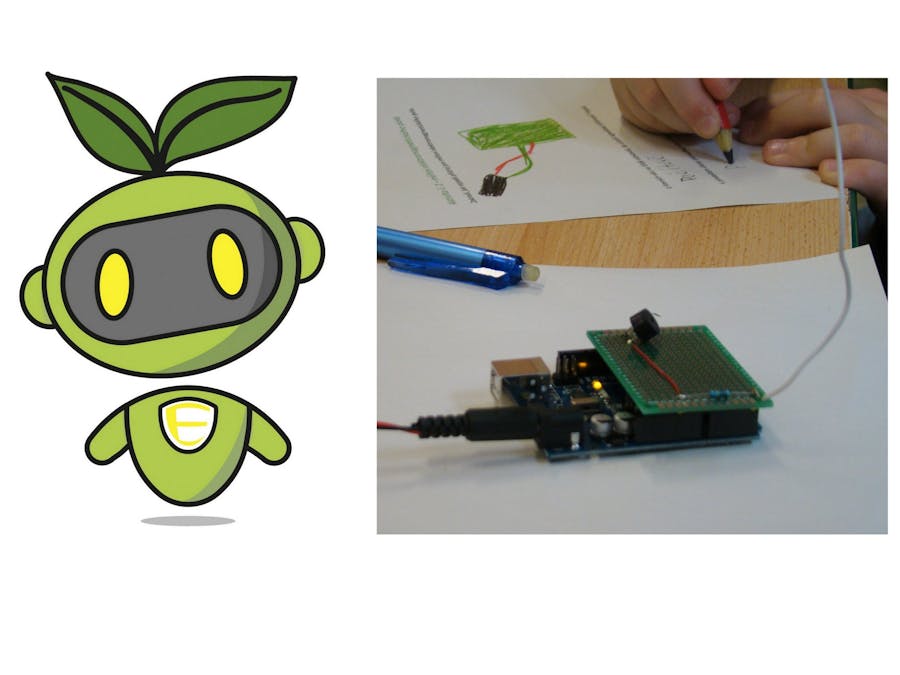

The EMI detector comes in two forms: the gadget is mounted on a shield suitable for an arduino uno board, or the detector is embedded on a shield on which an arduino nano is mounted.

We will start by building the shield for arduino uno

List of parts:

1x 8ohm speaker

1x arduino uno board

1x 40x60 PCB

1x 1Mohm resistor

single core electric wire

male pin header strip for arduino

1x arduino uno or nano board

Here is the wiring diagram for the EMI detector:

Step by step instructions for the Arduino Uno shield

First, solder at least a couple of pins to the PCB. These will go into GND and Analog 5 in th arduino uno board.

Next, solder an extra pin on the opposite side of the PCB. This will connect to Digital 9 on the arduino board.

The speaker will also be soldered onto the PCB. Solder the positive end of the speaker to the pin which goes into analog 9 on the arduino.

Solder the negative end of the speaker into the PCB.

Then connect a short (5 cm max) piece of electric wire to the negative end of the speaker. The other end of the cable is soldered on the pin which goes into GND.

Use a 1Mohm resistor to connect the pin which goes into GND and the one that goes into Analog 5 on the PCB (see photo above).

It’s now time to add the antenna of your EMI detector.

Take about 20 cm of solid core wire, and solder one end of it on to the PCB, precisely to the pin that goes into Analog 5 on the board.

Step by step instructions for the Arduino Nano shield

Solder two strips of female headers onto a PCB (3cm x 7cm).

You will need to be able to arrange the arduino nano onto these strips of female headers.

Solder the positive side of the speaker to the PCB, in correspondence with the D3 pin. Solder the other end of the speaker onto the PCB, in correspondence with GND pin of the arduino nano.

Next, grab the 1Mohm resistor, and solder one end to the PCB pin which leads to A5 on the board, the other end to the PCB pin which goes into GND.

To make the antenna of your device, take a piece of solid core wire (about 15 cm long), and solder one end of it to the PCB pin which leads to GND on the arduino nano.

Finally, grap two short pieces of electric wire. You will use them to connect a 9V battery to the arduino nano and power the board. Solder one end of the first cable to VIN on the arduino nano, solder one end of the other cable to GND.

Place the EMI detector inside its case

You can download the stl file and 3D print the case. The stl file is available here.

Program the arduino board

Whether you re using an arduino uno or a nano, the code that you ll need to upload in order for the probe to function correctly is basically the same.

Just make sure to program the correct digital pin for the piezo speaker. In the instructions above, we connected the speaker on D9 on an arduino uno, and D3 on an arduino nano.

The full arduino code is also available here (or below).

Activity Idea

Let students discuss or write on a board which electronic appliances readiated EMI and discuss why this is relevant to the environmental topic of energy saving.

Once you ve found out which electronic appliances radiate the biggest amount of EMI when in standby mode, you can learn ways to eliminate vampire power. There are several options how to do that:

Unplug electronic appliances and chargers when you don't use them.

Set devices to energy save mode.

Use a power strip to turn all electronics off at the same time.

This tutorial has been produced as part of the DEEDU project, co-financed by the Erasmus + Programme of the European commission. Project n°: 2018-1-FR02-KA205-014144.

The content of this publication does not reflect the official opinion of the European Union. Responsibility for the information and views expressed therein lies entirely with the authors. For more information, email us at info@digijeunes.com.

EMI detector

// Arduino Electromagnetic interference detector
// Code modified by Patrick Di Justo, based on
// Aaron ALAI EMF Detector April 22nd 2009 VERSION 1.0
// aaronalai1@gmail.com
//
// This outputs sound and numeric data to the 4char
#include <SoftwareSerial.h>
#define SerialIn 2
#define SerialOut 7
#define wDelay 900
int inPin = 5;
int val = 0;
SoftwareSerial mySerialPort(SerialIn, SerialOut);
void setup()

{
 pinMode(SerialOut, OUTPUT);
 pinMode(SerialIn, INPUT);
 mySerialPort.begin(19200);
 mySerialPort.print("vv");
 mySerialPort.print("xxxx");
 delay(wDelay);
 mySerialPort.print("----");
 delay(wDelay);
 mySerialPort.print("8888");
 delay(wDelay);
 mySerialPort.print("xxxx");
 delay(wDelay);
 Serial.begin(9600);
}
void loop()
{
 val = analogRead(inPin);
 Serial.println(val);
 dispData(val);
 val = map(val, 1, 100, 1, 2048);
 tone(3,val,10);
}
void dispData(int i)
{
 if ((i<-999) || (i>9999))
 {
 mySerialPort.print("ERRx");
 return;
 }
 char fourChars[5];
 sprintf(fourChars, "%04d", i);
 mySerialPort.print("v");
 mySerialPort.print(fourChars);
}
