3D Artificial Horizon - Gyroscope with MPU6050 GY-521

After many hours of work, I present thee! Navi, the NavBall! Based on the Navball in Kerbal Space Program. Als works with mouse, or ADXL345.

BeginnerFull instructions provided8,506

3D Artificial Horizon - Gyroscope with MPU6050 GY-521

Things used in this project

Hardware components

Arduino UNO

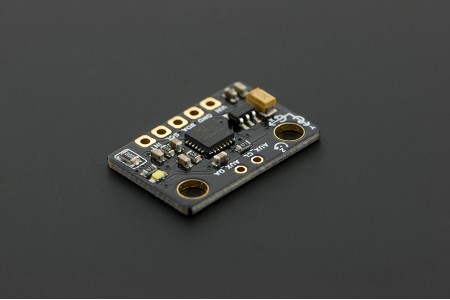

DFRobot 6 DOF Sensor - MPU6050

Jumper wires (generic)

M to F x 4

Software apps and online services

Arduino IDE

The Processing Foundation Processing

My 2nd code ever in Processing. And it broke me a few times.

Story

3D Artificial Horizon/ Gyroscope Using Arduino and Processing3+

Works with mouse if desired.

Also works with ADXL345 and MPU6050/GY-521 Accelerometer/Gyroscope variations.

Note: This project is not completed. Dare I ever to lose this code on my HDD.

Azimuth doesn't work, but fully serves purpose without it.

A little shaky. Altitude also doesn't work... yet

Based on Kerbal Space Program (KSP)

Face the module like this when operating.

Face the Accelerometer/Gyroscope module this way during operation.

Connect the ADXL345 or MPU6050/ GY-521 into the Arduino.

We will use A4 and A5 here.

SCL - A5

SDA - A4

Code

// NavBall Code

//https://www.instructables.com/How-to-Measure-Angle-With-MPU-6050GY-521/

// library link for MPU6050 or GY-521
// https://github.com/jarzebski/Arduino-MPU6050

#include<Wire.h>  // wire library

const int MPU_addr=0x68;   // MPU address

int16_t AcX,AcY,AcZ,Tmp,GyX,GyY,GyZ;  // 16 bit data array

int minVal=265;
int maxVal=402;

double x; double y; double z;

void setup() {

  Serial.begin(9600);

  Wire.begin();
  Wire.beginTransmission(MPU_addr);
  Wire.write(0x6B);
  Wire.write(0);
  Wire.endTransmission(true);


   }

void loop() {

  Wire.beginTransmission(MPU_addr);
  Wire.write(0x3B);
  Wire.endTransmission(false);
  Wire.requestFrom(MPU_addr,14,true);

  AcX=Wire.read()<<8|Wire.read();
  AcY=Wire.read()<<8|Wire.read();
  AcZ=Wire.read()<<8|Wire.read();

  int xAng = map(AcX,minVal,maxVal,-90,90);
  int yAng = map(AcY,minVal,maxVal,-90,90);
  int zAng = map(AcZ,minVal,maxVal,-90,90);

x= RAD_TO_DEG * (atan2(-yAng, -zAng)+PI);
y= RAD_TO_DEG * (atan2(-xAng, -zAng)+PI);
z= RAD_TO_DEG * (atan2(-yAng, -xAng)+PI);


      Serial.print(x);
      Serial.print(" ");

      Serial.print(y);
      Serial.print(" ");

      Serial.print(z);
      Serial.print(" ");

      Serial.print("\n");

   }

// it all started here....
//https://forum.processing.org/two/discussion/13353/creating-arc-sections-in-3d

import org.firmata.*;
import cc.arduino.*;
import processing.serial.*;
import java.awt.event.KeyEvent;
import java.io.IOException;
import processing.opengl.*;


Serial myPort;

String data="";

float Pitch;     // replaces roll and pitch
float Bank;
float Azimuth;

float Phi;    //Dimensional axis
float Theta;
float Psi;

float radius = 250.0;
float rho = radius;
float factor = TWO_PI / 40.0;    // detail is 40
float x, y, z;

PVector[] sphereVertexPoints;

////////////////////////////////////////////////////////////////////////

void setup() {

   size(400, 400, P3D);
   smooth();

myPort = new Serial(this, "COM4", 9600); // starts the serial communication myPort.bufferUntil('\n');

        }

 ////////////////////////////////////////////////////////////////////

void draw() {

background(0);

  stroke(100);
  strokeWeight(4);
  fill(200);
  rect(130, 10, 150, 50, 7);  // (x,y,w,h, round corner dia)
  fill(CLOSE);

  fill(0);
  rect(150, 30, 70, 25, 7);
  fill(CLOSE);

  strokeWeight(CLOSE); // very useful
  fill(CLOSE);
  stroke(CLOSE);

  fill(0);
  textSize(14);
  text("Altitude: ", 150, 50, 50);
  fill(CLOSE);
  float y1 = y++;
  float Alt = abs(Pitch/25+y1*10);

  fill(0,255,255);
  text(Alt, 160,70,50);  // alt, x,y,z
  fill(CLOSE);


  fill(0, 0, 255);
  textSize(12);
  text(" m/s", 220, 70, 50 );
  fill(CLOSE);


  translate(width/2, height/2, -250);  // camera placement
  lights();

  textLayer();
  MakeAnglesDependentOnMPU6050();


   fill(100);
   circle(0,0,700);  // dark gray circle
   fill(CLOSE);

   fill(150);
   circle(0,0,670);   // light grey circle
   fill(CLOSE);

  beginShape();

  fill(255,255,0);
    vertex(-14, -10, 300);
    vertex(14, -10, 300);       // yellow triangle, each vertex is x and y coords
    vertex(0, -20, 300);
    vertex(0, -20, 300);
   stroke(0);
   strokeWeight(2);
   stroke(CLOSE);


  endShape(CLOSE);

   beginShape();
    fill(255,255,0);
    stroke(0);
    strokeWeight(2);
    stroke(CLOSE);
    vertex(-50, -5, 300);
    vertex( 50, -5, 300);       // yellow  line
    vertex( 50, -10, 300);
    vertex(-50, -10, 300);
    fill(CLOSE);
  endShape(CLOSE);


  fill(210);
  arc(-120, 0, 380, 525, PI/2, 3*PI/2);   // left gauge fill
  arc(120, 0, -380, -525, PI/2, 3*PI/2);  // right gauge fill
  fill(CLOSE);

 //////////////////////////////////////////////////////////////

  pushMatrix();



     rotateX(radians(Bank));
     rotateZ(radians(Pitch));    // comment out to change to mouse
     rotateY(radians(Azimuth));



 // rotateX(radians(mouseY));  // comment in, to change to mouse.
 // rotateY(radians(mouseX));

  for(float PHI = 0.0; PHI < HALF_PI; PHI += factor) {

    beginShape(QUAD_STRIP);
    stroke(240);
    strokeWeight(1);

    for(float THETA = 0.0; THETA < TWO_PI + factor; THETA += factor) {

      x = rho * sin(PHI) * cos(THETA);
      z = rho * sin(PHI) * sin(THETA);
      y = -rho * cos(PHI);

      vertex(x, y, z);

      x = rho * sin(PHI + factor) * cos(THETA);
      z = rho * sin(PHI + factor) * sin(THETA);
      y = -rho * cos(PHI + factor);

      vertex(x, y, z);
      fill(100, 100,255);

   }

    endShape(CLOSE);
  }





for(float phi = 0.0; phi < HALF_PI; phi += factor) {

    beginShape(QUAD_STRIP);

    for(float theta = 0.0; theta < TWO_PI + factor; theta += factor) {

      x = rho * sin(phi) * cos(theta);
      z = rho * sin(phi) * sin(theta);
      y = -rho * cos(phi);

      vertex(-x, -y, -z);

      x = rho * sin(phi + factor) * cos(theta);
      z = rho * sin(phi + factor) * sin(theta);
      y = -rho * cos(phi + factor);

      vertex(-x, -y, -z);
      fill(255,128,0);


  }


    endShape(CLOSE);

}

   popMatrix();

 /////////////////////////////////////////////////////////////////////

    } // void draw



//////////////////////////////////////////////////////////////////////////

    void textLayer() {


         MakeAnglesDependentOnMPU6050();

     /*pushMatrix();

         rotateX(Bank/10);
         rotateY(-Pitch/10);
         rotateZ(Azimuth/10);

         fill(255);

              textSize(15);
              text( "50", 0, 110, 230);
              text( "90", 0, 180, 200);

           popMatrix(); */

      /////////////////////////////////////////////////////////

           pushMatrix();

             float y1 = y++;
             float alt = abs(Pitch/25+y1*10+90);


             beginShape();
             rotateZ(alt);
             stroke(255,255,0);              // throttle measurement  yellow
             strokeWeight(8);
             line(0,0,-310, 0);
             stroke(CLOSE);
             endShape();
             strokeWeight(CLOSE);

            popMatrix();

 /////////////////////////////////////////////////////////////////////////////



    int radius = 300;
    int lines = 5*17;

  for (int a=120; a<240; a=a+360/lines) {

    float x = radius * cos(radians(a));        // gauge lines yeah baby
    float y = radius * sin(radians(a));



      stroke(50);
      line(0,0,x,y);
      line(0,0,-x,-y);
      strokeWeight(3);
      stroke(CLOSE);

     }

///////////////////////////////////////////////////////////


     for (int a=120; a<160; a=a+360/lines) {

       float x = radius * cos(radians(a));        // red gauge lines yeah baby
       float y = radius * sin(radians(a));

       stroke(255,0,0);
       line(0,0,-x,-y);
       strokeWeight(3);
       stroke(CLOSE);
     }

  for (int a=160; a<190; a=a+360/lines) {

       float x = radius * cos(radians(a));        // orange gauge lines yeah baby
       float y = radius * sin(radians(a));

       stroke(255,128,0);
       line(0,0,-x,-y);
         strokeWeight(3);
       stroke(CLOSE);


   }


      for (int a=220; a<240; a=a+360/lines) {

       float x = radius * cos(radians(a));        // red gauge max throttle
       float y = radius * sin(radians(a));

       stroke(255,0,0);
       strokeWeight(3);
       line(0,0,x,y);
       stroke(CLOSE);


   }


////////////////////////////////////////////////////////////////



         }


///////////////////////////////////////////////////////////////////////

       void serialEvent(Serial myport)       {     //Reading the datas by Processing.

          String input = myport.readStringUntil('\n');

            if   (input != null)      {

                input = trim(input);
               String[] values = split(input, " ");

             if  (values.length == 3)  {


                  float phi = float(values[0]);
                  float theta = float(values[1]);
                  float psi = float(values[2]);

                  print(phi);
                  print(theta);
                  println(psi);

                  Phi = phi;
                  Theta = theta;
                  Psi = psi;




                          }
                      }
                   }

///////////////////////////////////////////////////////////////////////


      void MakeAnglesDependentOnMPU6050()   {

         Bank = round(-Theta);
         Pitch =round(-Phi-3);
         Azimuth = round(Psi/700);


     //   Bank =  -Phi/10;
       // Pitch =  Theta/10;       // use these values for the ADXL345
       // Azimuth = Psi/10;

        }

 /////////////////////////////////////////////////////////////////////////

Credits

Gallax

4 projects • 3 followers

3D Artificial Horizon - Gyroscope with MPU6050 GY-521
