Inflate With A Broken Balloon

I made trick toy using circuito.io. circuito.io generates circuit and test program just by selecting parts you want to use. Super convenience!

Constitution

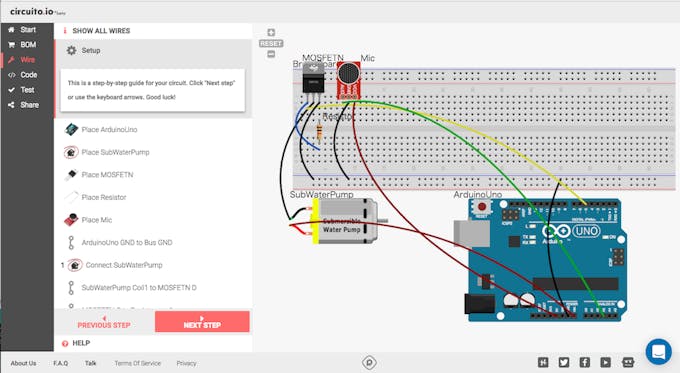

I added a motor and a microphone, and a wiring diagram is generated as shown in the following figure.

https://storage.circuito.io/index.html?solutionId=58ece9cc4e95b700128641cb

Wired according to the figure.

Arduino IDE program

I modified the program generated by the circuito.io as follows.

// Include Libraries
#include "Arduino.h"
#include "Mic.h"
#include "Pump.h"
// Pin Definitions
#define MIC_PIN_SIG	A3
#define WATERPUMP_PIN_COIL1	5
// Global variables and defines
// Constructors
Mic mic(MIC_PIN_SIG);
Pump waterpump(WATERPUMP_PIN_COIL1);
/* This code sets up the essentials for your circuit to work. It runs first every time your circuit is powered with electricity. */
void setup() {
   // Setup Serial which is useful for debugging
   // Use the Serial Monitor to view printed messages
   Serial.begin(9600);
}
/* This code is the main logic of your circuit. It defines the interaction between the components you selected. After setup, it runs over and over again, in an eternal loop. */
void loop() {
 //Mic
 int micVal = abs(mic.read() -500);
 Serial.print(F("Val: ")); Serial.println(micVal);

 //SubWaterPump
 if(micVal > 400){
   waterpump.on(); // turns on
 }else{
   waterpump.off();// turns off
 }
}

Operation

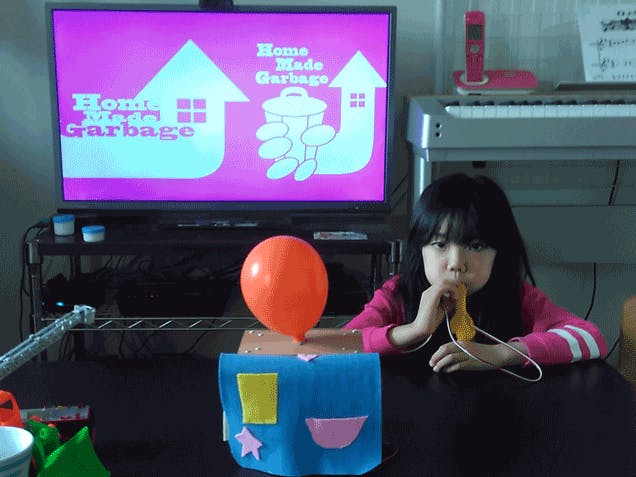

Place a microphone in a broken balloon and attach a balloon to the motor. Blowing a broken balloon inflate the other balloon.
