Pressure Sensors 2Go: The DPS310 & DPS368

Learn how you can easily measure pressure and temperature with Infineon's DPS310 & DPS368 Pressure Sensors 2Go within the Arduino IDE!

BeginnerProtip2 hours859
Pressure Sensors 2Go: The DPS310 & DPS368

Things used in this project

Story

Read more

Schematics

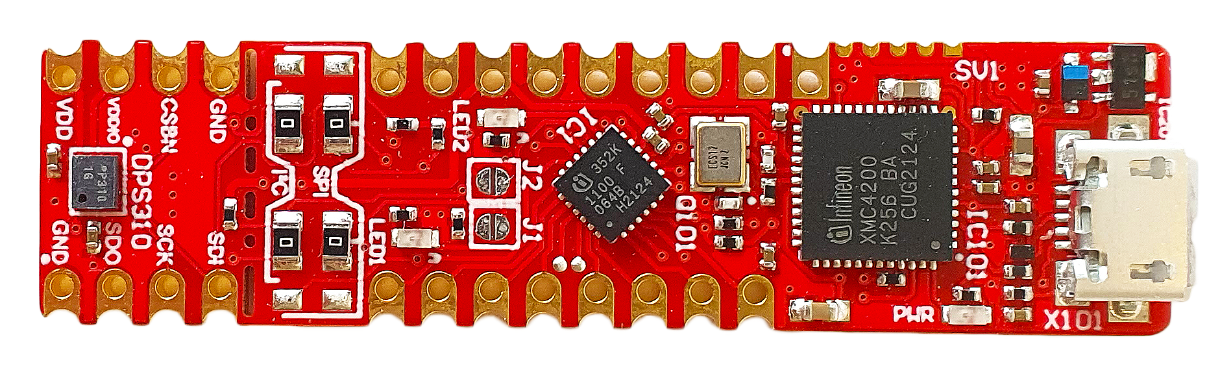

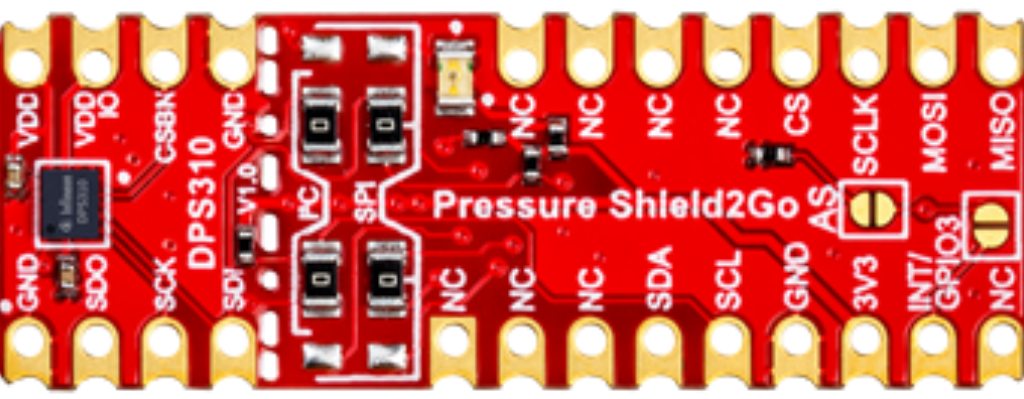

Kit2Go DPS310 Fritzing file

Fritzing file of the Infineon Kit2Go DPS310

Kit2Go DPS368 Fritzing file

Fritzing file of the Infineon Kit2Go DPS310

Code

i2c_background

Arduino
The DPS in I²C - background mode
#include <Dps3xx.h>

// Dps3xx Opject
Dps3xx Dps3xxPressureSensor = Dps3xx();

void setup()
{
  Serial.begin(9600);
  while (!Serial);

  //Call begin to initialize Dps3xxPressureSensor
  //The parameter 0x76 is the bus address. The default address is 0x77 and does not need to be given.
  //Dps3xxPressureSensor.begin(Wire, 0x76);
  //Use the line below instead to use the default I2C address.
  Dps3xxPressureSensor.begin(Wire);

  //temperature measure rate (value from 0 to 7)
  //2^temp_mr temperature measurement results per second
  int16_t temp_mr = 2;
  //temperature oversampling rate (value from 0 to 7)
  //2^temp_osr internal temperature measurements per result
  //A higher value increases precision
  int16_t temp_osr = 2;
  //pressure measure rate (value from 0 to 7)
  //2^prs_mr pressure measurement results per second
  int16_t prs_mr = 2;
  //pressure oversampling rate (value from 0 to 7)
  //2^prs_osr internal pressure measurements per result
  //A higher value increases precision
  int16_t prs_osr = 2;
  //startMeasureBothCont enables background mode
  //temperature and pressure ar measured automatically
  //High precision and hgh measure rates at the same time are not available.
  //Consult Datasheet (or trial and error) for more information
  int16_t ret = Dps3xxPressureSensor.startMeasureBothCont(temp_mr, temp_osr, prs_mr, prs_osr);
  //Use one of the commented lines below instead to measure only temperature or pressure
  //int16_t ret = Dps3xxPressureSensor.startMeasureTempCont(temp_mr, temp_osr);
  //int16_t ret = Dps3xxPressureSensor.startMeasurePressureCont(prs_mr, prs_osr);


  if (ret != 0)
  {
    Serial.print("Init FAILED! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.println("Init complete!");
  }
}



void loop()
{
  uint8_t pressureCount = 20;
  float pressure[pressureCount];
  uint8_t temperatureCount = 20;
 float temperature[temperatureCount];

  //This function writes the results of continuous measurements to the arrays given as parameters
  //The parameters temperatureCount and pressureCount should hold the sizes of the arrays temperature and pressure when the function is called
  //After the end of the function, temperatureCount and pressureCount hold the numbers of values written to the arrays
  //Note: The Dps3xx cannot save more than 32 results. When its result buffer is full, it won't save any new measurement results
  int16_t ret = Dps3xxPressureSensor.getContResults(temperature, temperatureCount, pressure, pressureCount);

  if (ret != 0)
  {
    Serial.println();
    Serial.println();
    Serial.print("FAIL! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.println();
    Serial.println();
    Serial.print(temperatureCount);
    Serial.println(" temperature values found: ");
    for (int16_t i = 0; i < temperatureCount; i++)
    {
      Serial.print(temperature[i]);
      Serial.println(" degrees of Celsius");
    }

    Serial.println();
    Serial.print(pressureCount);
    Serial.println(" pressure values found: ");
    for (int16_t i = 0; i < pressureCount; i++)
    {
      Serial.print(pressure[i]);
      Serial.println(" Pascal");
    }
  }

  //Wait some time, so that the Dps3xx can refill its buffer
  delay(10000);
}

i2c_command

Arduino
The DPS in I²C-Command Mode
#include <Dps3xx.h>

// Dps3xx Opject
Dps3xx Dps3xxPressureSensor = Dps3xx();

void setup()
{
  Serial.begin(9600);
  while (!Serial);


  //Call begin to initialize Dps3xxPressureSensor
  //The parameter 0x76 is the bus address. The default address is 0x77 and does not need to be given.
  //Dps3xxPressureSensor.begin(Wire, 0x76);
  //Use the line below instead of the one above to use the default I2C address.
  //if you are using the Pressure 3 click Board, you need 0x76
  Dps3xxPressureSensor.begin(Wire);

  Serial.println("Init complete!");
}



void loop()
{
  float temperature;
  float pressure;
  uint8_t oversampling = 7;
  int16_t ret;
  Serial.println();

  //lets the Dps3xx perform a Single temperature measurement with the last (or standard) configuration
  //The result will be written to the paramerter temperature
  //ret = Dps3xxPressureSensor.measureTempOnce(temperature);
  //the commented line below does exactly the same as the one above, but you can also config the precision
  //oversampling can be a value from 0 to 7
  //the Dps 3xx will perform 2^oversampling internal temperature measurements and combine them to one result with higher precision
  //measurements with higher precision take more time, consult datasheet for more information
  ret = Dps3xxPressureSensor.measureTempOnce(temperature, oversampling);

  if (ret != 0)
  {
    //Something went wrong.
    //Look at the library code for more information about return codes
    Serial.print("FAIL! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.print("Temperature: ");
    Serial.print(temperature);
    Serial.println(" degrees of Celsius");
  }

  //Pressure measurement behaves like temperature measurement
  //ret = Dps3xxPressureSensor.measurePressureOnce(pressure);
  ret = Dps3xxPressureSensor.measurePressureOnce(pressure, oversampling);
  if (ret != 0)
  {
    //Something went wrong.
    //Look at the library code for more information about return codes
    Serial.print("FAIL! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.print("Pressure: ");
    Serial.print(pressure);
    Serial.println(" Pascal");
  }

  //Wait some time
  delay(5000);
}

SPI_command mode

Arduino
The DPS in SPI-Command Mode
#include <Dps3xx.h>

// Dps3xx Opject
Dps3xx Dps3xxPressureSensor = Dps3xx();

void setup()
{
  //pin number of your slave select line
  //XMC2GO
  int16_t pin_cs = 3;
  //for XMC 1100 Bootkit  & XMC4700 Relax Kit uncomment the following line
  //int16_t pin_cs = 10;

  Serial.begin(9600);
  while (!Serial);


  //Call begin to initialize Dps3xxPressureSensor
  //The parameter pin_nr is the number of the CS pin on your Microcontroller
  Dps3xxPressureSensor.begin(SPI, pin_cs);

  Serial.println("Init complete!");
}



void loop()
{
  float temperature;
  float pressure;
  uint8_t oversampling = 7;
  int16_t ret;
  Serial.println();

  //lets the Dps3xx perform a Single temperature measurement with the last (or standard) configuration
  //The result will be written to the paramerter temperature
  //ret = Dps3xxPressureSensor.measureTempOnce(temperature);
  //the commented line below does exactly the same as the one above, but you can also config the precision
  //oversampling can be a value from 0 to 7
  //the Dps 3xx will perform 2^oversampling internal temperature measurements and combine them to one result with higher precision
  //measurements with higher precision take more time, consult datasheet for more information
  ret = Dps3xxPressureSensor.measureTempOnce(temperature, oversampling);

  if (ret != 0)
  {
    //Something went wrong.
    //Look at the library code for more information about return codes
    Serial.print("FAIL! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.print("Temperature: ");
    Serial.print(temperature);
    Serial.println(" degrees of Celsius");
  }


  //ret = Dps3xxPressureSensor.measurePressureOnce(pressure);
  ret = Dps3xxPressureSensor.measurePressureOnce(pressure, oversampling);
  if (ret != 0)
  {
    //Something went wrong.
    //Look at the library code for more information about return codes
    Serial.print("FAIL! ret = ");
    Serial.println(ret);
  }
  else
  {
    Serial.print("Pressure: ");
    Serial.print(pressure);
    Serial.println(" Pascal");
  }

  //Wait some time
  delay(1000);
}

DPS3xx Arduino Library

Arduino
Latest library for all Pressure Sensors 2Go
No preview (download only).

Infineon DPS3xx library for Arduino

Arduino Library for all variants of DPS310 and DPS368 boards
