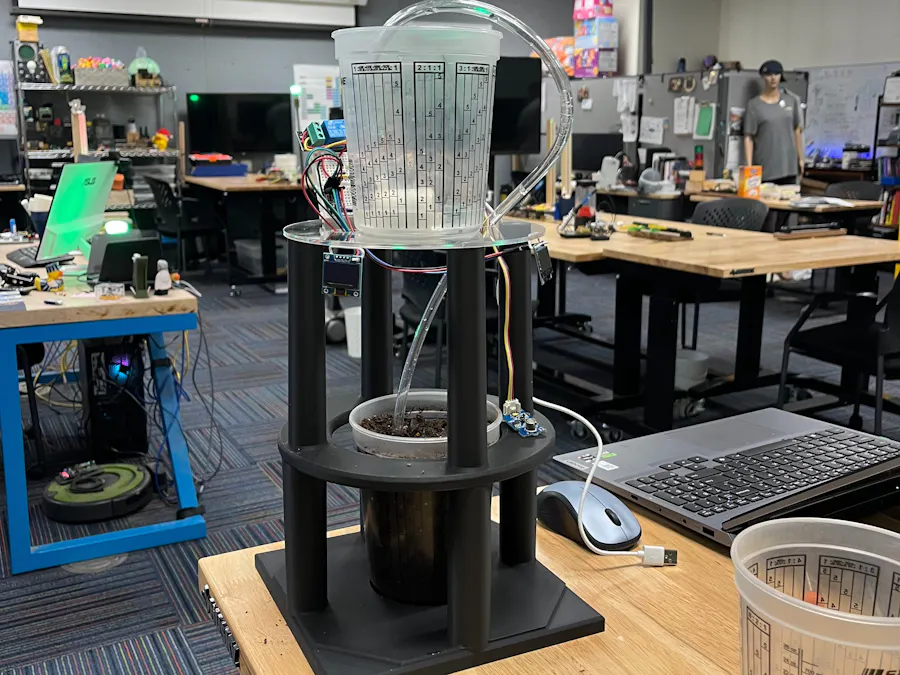

SmartGrow Tower

// Include Particle Device OS APIs
// Project: SmartGrow Tower
// Author: Jeren Arellano Reeder
#include "Particle.h"
#include "Air_Quality_Sensor.h"
#include "Grove_Air_quality_Sensor.h"
#include <Adafruit_MQTT.h>
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"
#include "Adafruit_MQTT/Adafruit_MQTT.h"
#include "credentials.h"
#include "Adafruit_SSD1306.h"
#include "Adafruit_GFX.h"
#include "Adafruit_BME280.h"
//classes
AirQualitySensor sensor (A0);
TCPClient TheClient;
Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);
Adafruit_MQTT_Publish pubFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantAQ");
Adafruit_MQTT_Publish pubFeed2 = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantmoisture");
Adafruit_MQTT_Publish pubFeed3 = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/planttemp");
Adafruit_MQTT_Publish pubFeed4 = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/planthumid");
Adafruit_MQTT_Publish pubFeed5 = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantpressure");
Adafruit_MQTT_Subscribe subFeed = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/WaterButton");
//bme
char number = 164;
Adafruit_BME280 bme;
int hexAddress = 0x76;
const int OLED_RESET=-1;
Adafruit_SSD1306 display1(OLED_RESET);
Adafruit_SSD1306 display2(OLED_RESET);

//relay
const int relayPin = D6;
int relayState;
unsigned int lastRelay;
unsigned int lastRelay2;
unsigned int lastPublish;
//stats
float temp, pres, humid, Fahrenheit, inHg;
bool status;
//strings floats ints
float subValue,pubValue,pubValue2,pubValue3,pubValue4,pubValue5,pubValue6,pubValue7;
String dateTime;
String timeOnly;
unsigned int last, lastTime;
const int moisturePin = A1;
float moistureValue;
//functions
void MQTT_connect();
bool MQTT_ping();
void OLED(void);

SYSTEM_MODE(AUTOMATIC);
SYSTEM_THREAD(ENABLED);


void setup() {

pinMode(relayPin,OUTPUT);

  Time.zone(-6);
  Particle.syncTime();
  Serial.begin(9600);
  waitFor(Serial.isConnected,10000);
  //wifi
  WiFi.on();
  WiFi.connect();
  while(WiFi.connecting()) {
    Serial.printf(".");
  }
  Serial.printf("\n\n");

  mqtt.subscribe(&subFeed);
  while(!Serial);
  //air sensor
  Serial.println("Starting Sensor");
  delay(10000);

  if(sensor.init()){
    Serial.println("Sensor is ready");
  }
  else{
    Serial.println("Sensor Error");
  }

  status = bme.begin(hexAddress);
  if (status == TRUE) {
    Serial.printf("BME280 at address 0x%02X started successfully!\n",hexAddress);
//OLED
display1.begin(SSD1306_SWITCHCAPVCC, 0x3C);
display2.begin(SSD1306_SWITCHCAPVCC, 0x3D);
display1.clearDisplay();
display2.clearDisplay();
display1.display();
display2.display();
delay(2000);
  }
}

void loop() {

  OLED();
//BME280
  temp = bme.readTemperature();
  pres = bme.readPressure();
  humid = bme.readHumidity();
  Fahrenheit = (temp * 9/5) + 32;
  inHg = (pres * 0.00029529983071445);
  Serial.printf("Pressure %f\nHumidity %f\nFahrenheit %f\n",inHg,humid,Fahrenheit);
  delay(1000);
//AIR SENSOR
 int quality = sensor.slope();

 Serial.print("Air Quality: ");
 Serial.println(sensor.getValue());

 if (quality == AirQualitySensor::FORCE_SIGNAL){
  Serial.println("VERY HIGH POLLUTION WARNING");
 }
 else if(quality == AirQualitySensor::HIGH_POLLUTION){
  Serial.println("HIGH POLLUTION");
 }
 else if(quality == AirQualitySensor::LOW_POLLUTION){
  Serial.println("LOW POLLUTION");
 }
 else if(quality == AirQualitySensor::FRESH_AIR){
  Serial.println("FRESH AIR");
 }

 delay(1000);

{
    lastTime = millis();
//MOISTURE SENSOR AND TIME
  moistureValue = analogRead(moisturePin);
  dateTime = Time.timeStr();
  timeOnly = dateTime.substring(11,19);
  if( millis () - lastTime >10000) {
  lastTime = millis ();

 Serial.printf ("Date/Time %s\n", dateTime.c_str () );
 Serial.printf ("Time is %s\n", timeOnly.c_str () );
 Serial.printf("Moisture Level is %0.2f",moistureValue);
  }
}

  Adafruit_MQTT_Subscribe *subscription;
  while ((subscription = mqtt.readSubscription(100))) {
    if (subscription == &subFeed) {
      subValue = atof((char *)subFeed.lastread);
    }
  }
//RELAY EVERY 2 MINS
  if (millis() - lastRelay > 120000) {
  lastRelay = millis();

  if (moistureValue > 2670) {
    digitalWrite(relayPin, HIGH);
    Serial.println("RELAY ON");
    delay(500);
    digitalWrite(relayPin, LOW);
    Serial.println("RELAY OFF");
  }
}
//ADAFRUIT WATERBUTTON
if (subValue == 1) {
  digitalWrite(relayPin, HIGH);
  Serial.println(" relayState =  ON");
  delay(500);
  digitalWrite(relayPin, LOW);
  Serial.println(" relayState =  OFF");
}

if (subValue == 0) {
  digitalWrite(relayPin, LOW);
  Serial.println(" relayState =  OFF");
}

   if((millis()-lastPublish > 15000)) {
    if(mqtt.Update()) {
      pubValue = sensor.getValue();
      pubValue2 = moistureValue;
      pubValue3 = Fahrenheit;
      pubValue4 = humid;
      pubValue5 = inHg;
      pubFeed.publish(pubValue);
      pubFeed2.publish(pubValue2);
      pubFeed3.publish(pubValue3);
      pubFeed4.publish(pubValue4);
      pubFeed5.publish(pubValue5);
      Serial.printf("Publishing %0.2f \n",pubValue);
      Serial.printf("Publishing %0.2f \n",pubValue2);
      Serial.printf("Publishing %0.1f \n",pubValue3);
      Serial.printf("Publishing %0.2f \n",pubValue4);
      Serial.printf("Publishing %0.2f \n",pubValue5);
      }
    lastPublish = millis();
}
}
//CONNECTING
void MQTT_connect() {
  int8_t ret;

  if (mqtt.connected()) {
    return;
  }

  Serial.print("Connecting to MQTT... ");

  while ((ret = mqtt.connect()) != 0) {
       Serial.printf("Error Code %s\n",mqtt.connectErrorString(ret));
       Serial.printf("Retrying MQTT connection in 5 seconds...\n");
       mqtt.disconnect();
       delay(5000);
  }
  Serial.printf("MQTT Connected!\n");
}

bool MQTT_ping() {
  static unsigned int last;
  bool pingStatus;

  if ((millis()-last)>120000) {
      Serial.printf("Pinging MQTT \n");
      pingStatus = mqtt.ping();
      if(!pingStatus) {
        Serial.printf("Disconnecting \n");
        mqtt.disconnect();
      }
      last = millis();
  }
  return pingStatus;
}
//OLEDS
void OLED(void){
   int quality = sensor.slope();
  dateTime = Time.timeStr();
  timeOnly = dateTime.substring(11,19);

   //DISPLAYS
  display1.display();
  display1.clearDisplay();
  display1.setTextSize(1);
  display1.setTextColor(WHITE);
  display1.setCursor(1,0);
  display1.printf("MoistureMeter %0.2f\n %s\n",moistureValue, dateTime.c_str ());

  display1.setTextSize(1);
  display1.setTextColor(WHITE);
  display1.setCursor(1,38);
  display1.printf("Fahrenheit %0.1fF\nHumidity %0.1f\nPressure %0.1f\n",Fahrenheit,humid,inHg);;

  display1.display();
   display1.clearDisplay();

  display2.display();
  display2.clearDisplay();
  display2.setTextSize(1);
  display2.setTextColor(WHITE);
  display2.setCursor(1,0);
  display2.print("Sensor value:\n");
  display2.println(sensor.getValue());
 if (quality == AirQualitySensor::FORCE_SIGNAL){
  display2.println("VERY HIGH POLLUTION WARNING\n");
 }
 else if(quality == AirQualitySensor::HIGH_POLLUTION){
  display2.println("HIGH POLLUTION\n");
 }
 else if(quality == AirQualitySensor::LOW_POLLUTION){
  display2.println("LOW POLLUTION\n");
 }
 else if(quality == AirQualitySensor::FRESH_AIR){
  display2.println("FRESH AIR\n");
 }

display2.display();
display2.clearDisplay();
   delay(1000);
}
