Arduino Radar Using Android Mobile App

Arduino Radar Using Android Mobile App

This project is a radar system powered by ultrasonic sensors and servo motors. This system detects obstacles and collects distance and angle information and can be controlled via Bluetooth via a mobile application. The system provides the user with features such as target identification and automatic firing.

Click to buy the app, version only available for Android:PLAY STORE APP

Key Components of the System

• HC-SR04 Ultrasonic Sensor: Used to measure the distance of targets.
• SG90 AND MG995 Servo Motors: Used for radar scanning and firing.
• Bluetooth Module (HC-05 / HC-06/ESP32): Allows data to be transferred wirelessly to the mobile application.
• ESP32 / Arduino: Processes the sensor data and transmits it to the application.
• TCRT5000: Checks whether there is a bullet.
• LM2596 power module: provides power to the circuit.
• Mobile Application:Interface that allows the user to control and monitor the radar unit.

Step 1: HOW TO USE

Send and Receive Data

Sensor and Servo Motor Data: The radar system sends distance, angle and firing information to the mobile application via Bluetooth.

Sample Data Format:20|25|1|1\rn

• 20: Distance (cm)
• 25: Servo motor angle (degrees)
• 1: Whether there are bullets (1: Yes, 0: No)
• 1: System active status (1: RUNING, 0: STOPING)

Mobile Application Commands: The user can send commands to the radar system through the application.

Sample Command Format: fire&set_value&on_off&oto_mode

Sample Data: 1&50&1&0\rn

• 1: Ignition command (1: Fire, 0: No fire)
• 50: Target distance limit (cm)
• 1: System on/off status (1: START CMD, 0: STOP CMD)
• 0: Automatic mode (1: Active, 0: Off)

Mobile Application and Control Panel

The app offers the user the following control options:

Bluetooth Connection: Press the “BT_SELECT” key to communicate with the radar unit.

System RUN/STOP: Activate the system with the “START” button.

Target Distance Setting: Enter the distance value with “Set Control Distance”.

Auto Fire Mode: Activate by checking the “AUTO FIRE ON” box.

Bullet Control: The system can be activated if there is a bullet.

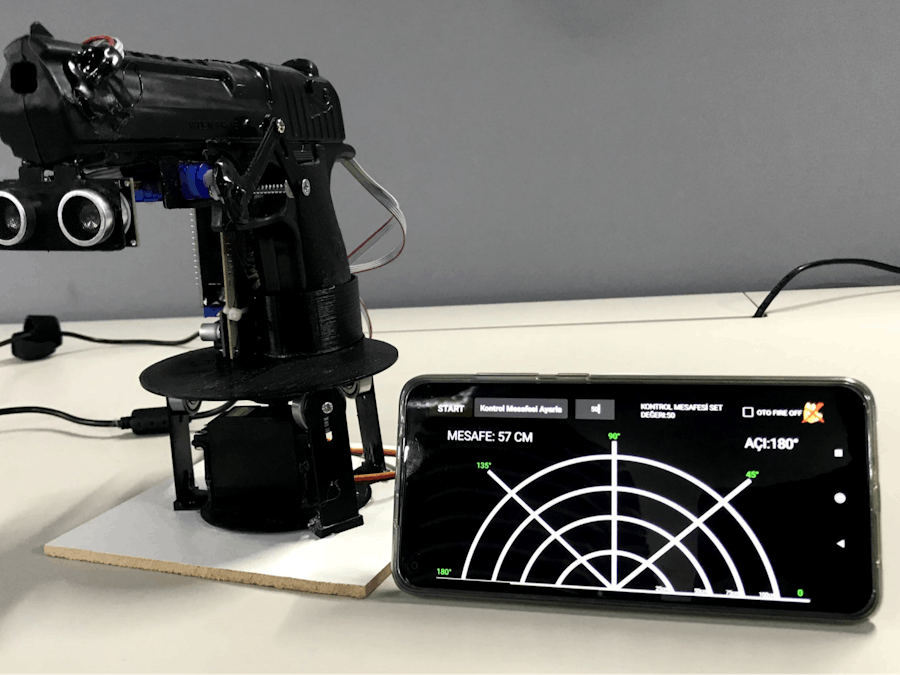

The completed version of the project is as above. If requested, full code and file sharing will be made on the cult3d.com page.

Thanks for reading...
