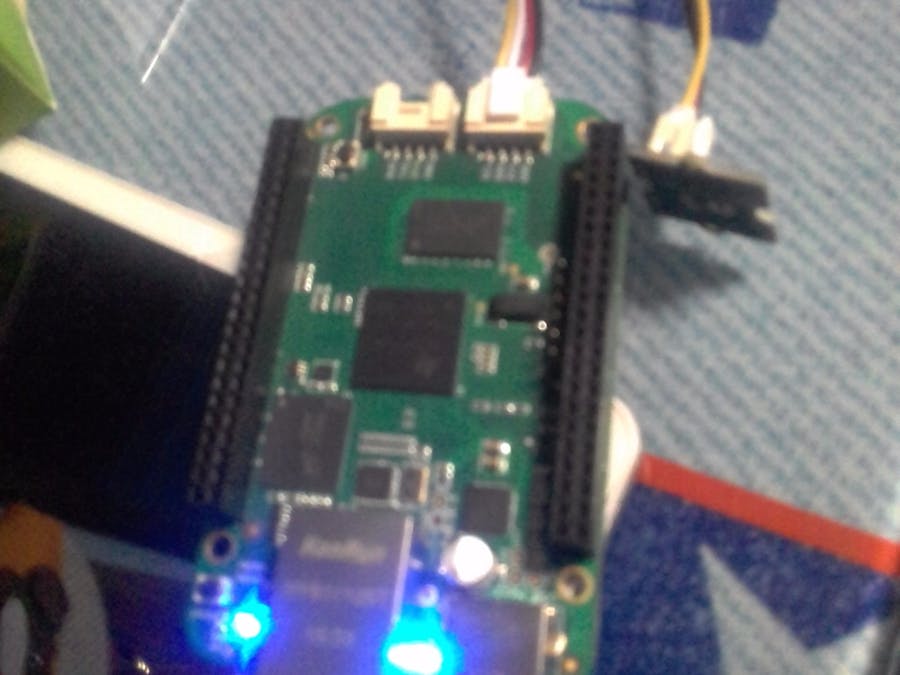

BeagleBone Green Temperature Monitor on Artik Cloud

It's a simple project for send data from BBG to Artik Cloud, in my opinion Artik Cloud is very promising, but their website is very unstable (and slow), and I had some problems and errors (as you will see at the end of the project).

Reading temperature VIA I2C ADC

import time
import math
import grove_i2c_adc
import Adafruit_BBIO.GPIO as GPIO
BUZZER = "P9_22"            # GPIO P9_22
GPIO.setup(BUZZER, GPIO.OUT)
# The threshold to turn the buzzer on 28 Celsius
THRESHOLD_TEMPERATURE = 28
adc = grove_i2c_adc.I2cAdc()
#   The argument in the read_temperature() method defines which Grove board(Grove Temperature Sensor) version you have connected.
#   Defaults to 'v1.2'. eg.
#       temp = read_temperature('v1.0')          # B value = 3975
#       temp = read_temperature('v1.1')          # B value = 4250
#       temp = read_temperature('v1.2')          # B value = 4250
def read_temperature(model = 'v1.2'):
   "Read temperature values in Celsius from Grove Temperature Sensor"
   # each of the sensor revisions use different thermistors, each with their own B value constant
   if model == 'v1.2':
       bValue = 4250  # sensor v1.2 uses thermistor ??? (assuming NCP18WF104F03RC until SeeedStudio clarifies)
   elif model == 'v1.1':
       bValue = 4250  # sensor v1.1 uses thermistor NCP18WF104F03RC
   else:
       bValue = 3975  # sensor v1.0 uses thermistor TTC3A103*39H
   total_value = 0
   for index in range(20):
       sensor_value = adc.read_adc()
       total_value += sensor_value
       time.sleep(0.05)
   average_value = float(total_value / 20)
   # Transform the ADC data into the data of Arduino platform.
   sensor_value_tmp = (float)(average_value / 4095 * 2.95 * 2 / 3.3 * 1023)
   resistance = (float)(1023 - sensor_value_tmp) * 10000 / sensor_value_tmp
   temperature = round((float)(1 / (math.log(resistance / 10000) / bValue + 1 / 298.15) - 273.15), 2)
   return temperature
# Function: If the temperature sensor senses the temperature that is up to the threshold you set in the code, the buzzer is ringing for 1s.
# Hardware: Grove - I2C ADC, Grove - Temperature Sensor, Grove - Buzzer
# Note: Use P9_22(UART2_RXD) as GPIO.
# Connect the Grove Buzzer to UART Grove port of Beaglebone Green.
# Connect the Grove - I2C ADC to I2C Grove port of Beaglebone Green, and then connect the Grove - Temperature Sensor to Grove - I2C ADC.
if __name__ == '__main__':
   while True:
       try:
           # Read temperature values in Celsius from Grove Temperature Sensor
           temperature = read_temperature('v1.2')
           # When the temperature reached predetermined value, buzzer is ringing.
           print "temperature = ", temperature
       except IOError:
           print "Error"

Create a new device (on Artik Cloud)

Test Publishing Data

import requests
import json
import time
ts = int(time.time())
headers = {'Content-Type': 'application/json','Authorization':'Bearer 5ab083f9631e48729423bc0a6978eaa5'}
url = 'https://api.artik.cloud/v1.1/messages'
data = {
 'sdid': '385261a597fd4e808562fde4a87dee3f',
 'type': 'message',
 'ts': '1475160627',
 'data': {'TEMPERATURE':36}
}
params = {}
response = requests.post(url, params=params, data=json.dumps(data), headers=headers)
print "enviado"
print response.status_code
print response.text

Publish temperature in real time

import time
import math
import grove_i2c_adc
import Adafruit_BBIO.GPIO as GPIO
BUZZER = "P9_22"            # GPIO P9_22
GPIO.setup(BUZZER, GPIO.OUT)
THRESHOLD_TEMPERATURE = 28
adc = grove_i2c_adc.I2cAdc()
def read_temperature(model = 'v1.2'):
   "Read temperature values in Celsius from Grove Temperature Sensor"
   # each of the sensor revisions use different thermistors, each with their own B value constant
   if model == 'v1.2':
       bValue = 4250  # sensor v1.2 uses thermistor ??? (assuming NCP18WF104F03RC until SeeedStudio clarifies)
   elif model == 'v1.1':
       bValue = 4250  # sensor v1.1 uses thermistor NCP18WF104F03RC
   else:
       bValue = 3975  # sensor v1.0 uses thermistor TTC3A103*39H
   total_value = 0
   for index in range(20):
       sensor_value = adc.read_adc()
       total_value += sensor_value
       time.sleep(0.05)
   average_value = float(total_value / 20)
   # Transform the ADC data into the data of Arduino platform.
   sensor_value_tmp = (float)(average_value / 4095 * 2.95 * 2 / 3.3 * 1023)
   resistance = (float)(1023 - sensor_value_tmp) * 10000 / sensor_value_tmp
   temperature = round((float)(1 / (math.log(resistance / 10000) / bValue + 1 / 298.15) - 273.15), 2)
   return temperature
if __name__ == '__main__':
   while True:
       try:
           # Read temperature values in Celsius from Grove Temperature Sensor
           temperature = read_temperature('v1.2')
           # When the temperature reached predetermined value, buzzer is ringing.
           print "temperature = ", temperature
           import requests
           import json
           import time
           ts = int(time.time())
           print "time = ",ts
           headers = {'Content-Type': 'application/json','Authorization':'Bearer 0122adc59504416aabd19af802912339'}
           url = 'https://api.artik.cloud/v1.1/messages'
           data = {
             'sdid': '385261a597fd4e808562fde4a87dee3f',
             'type': 'message',
             'ts': ts,
             'data': {'TEMPERATURE':temperature}
           }
           params = {}
           response = requests.post(url, params=params, data=json.dumps(data), headers=headers)
           print "enviado"
           print response.status_code
           time.sleep(1)
       except IOError:
           print "Error"

See Data Log

Publishing from BBG

Messages Log

For How use Postman, see my previous Project:

https://www.hackster.io/LaurenceHR/consuming-artik-cloud-api-from-postman-chrome-extension-8f6dfb?ref=user&ref_id=43908&offset=1

On Artik Cloud

For an inexplicable reason, Artik doesn't show my data sent in the charts :/
