Remote Doorbell with Custom (mp3) Song with Cayenne

By a button on a board connected to Internet, activates the sound of a melody (whose mp3 file you have selected) in another board.

IntermediateFull instructions provided2 hours1,655

Remote Doorbell with Custom (mp3) Song with Cayenne

Things used in this project

Hardware components

Particle Photon

Software apps and online services

myDevices Cayenne

Story

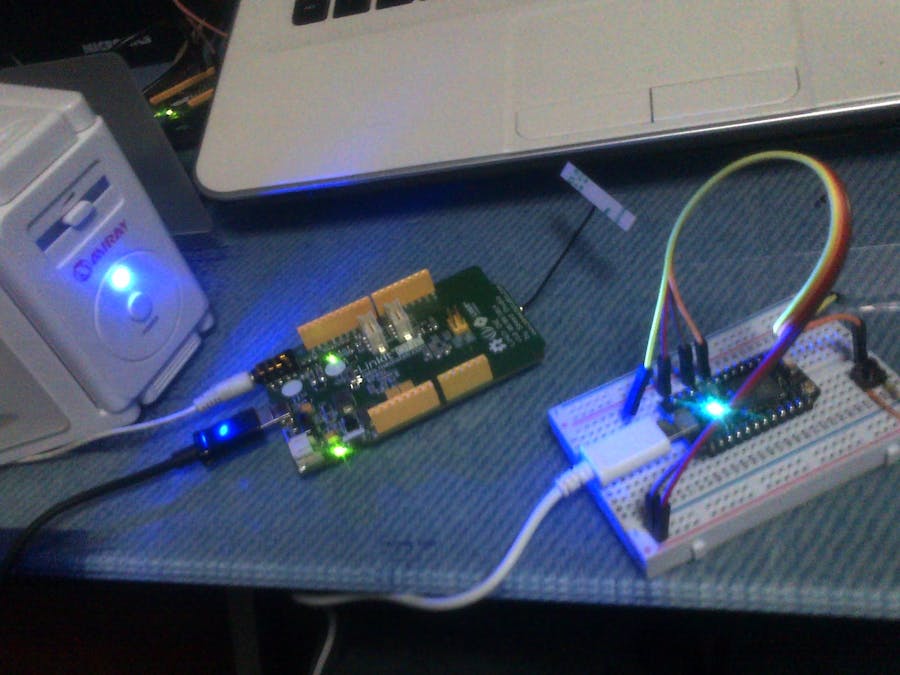

The idea is simple, but the development not so much hehe. By a button on a board connected to Internet, activates the sound of a melody (whose mp3 file you have selected) in another board connected to Internet too (the Doorbell).

1 / 2

STEP 2: Flash the code on Cloud Editor

1 / 3

STEP 4: Select your prefered song (mp3) and save on a root of a micro SD Card

After, put the microSD in LinkIt ONE Slot, and toggle mode to SD (SD/SPI).

STEP 5: Upload sketch for LinkIt ONE

1 / 2

STEP 6: Create trigger for both boards

1 / 3

STEP 7: Test and Fun!

thx for read, and don't forget respect this ;)

#define CAYENNE_PRINT Serial
#include "cayenne-particle/cayenne-particle.h"

char auth[] = "nezswd70wi";
int ledPin = D7;
int btnPin = D6;


void setup()
{
    pinMode(ledPin, OUTPUT);
    pinMode(btnPin, INPUT);
    Serial.begin(9600);
    delay(5000); // Allow board to settle
    Blynk.begin(auth);
}

BLYNK_READ(V0){
    pinData = digitalRead(btnPin);
    Blynk.virtualWrite(V0,pinData);
}


BLYNK_WRITE(V0){ int currentValue = param.asInt(); // 0 to 1
  if (currentValue == 1) {
      digitalWrite(ledPin, HIGH);
  } else {
      digitalWrite(ledPin, LOW);
  }
}


void loop(){ Blynk.run(); }

#include <LWiFi.h>
#include <LWiFiClient.h>
#define CAYENNE_DEBUG         // Uncomment to show debug messages
#define CAYENNE_PRINT Serial  // Comment this out to disable prints and save space
#include <CayenneLWiFiWpa.h>

#include <LSD.h>
#include <LAudio.h>

char token[] = "2fm04460o2";
char ssid[] = "MOVLAU";
char password[] = "l4ur3nc3.w1";

// Custom Widget
#define CAYENNE_PRINT Serial
#define VIRTUAL_PIN 1
#define LED_DIGITAL_PIN 12

#define file_name (char *)"iphone.mp3"

void setup(){
  pinMode(LED_DIGITAL_PIN, OUTPUT);
  Serial.begin(9600);
  LSD.begin();
  Cayenne.begin(token, ssid, password);
  LAudio.setVolume(5);
}

CAYENNE_IN(VIRTUAL_PIN){
  int currentValue = getValue.asInt(); // 0 to 1
  if (currentValue == 1) {
    digitalWrite(LED_DIGITAL_PIN, HIGH);
    Serial.print("Playing: ");
    Serial.println(file_name);
    LAudio.playFile(storageSD,file_name);
    delay(3000);
    LAudio.playFile(storageSD,file_name);
    delay(3000);
    LAudio.stop();
    digitalWrite(LED_DIGITAL_PIN, LOW);
    Cayenne.virtualWrite(1,LOW);
  } else {
    LAudio.stop();
    digitalWrite(LED_DIGITAL_PIN, LOW);
  }
}

void loop(){Cayenne.run();}

Credits

Laurence Daxes

19 projects • 36 followers

Systems Engineer Bachellor, I Love technology, and IoT World https://youtube.com/c/DaxesHacks
