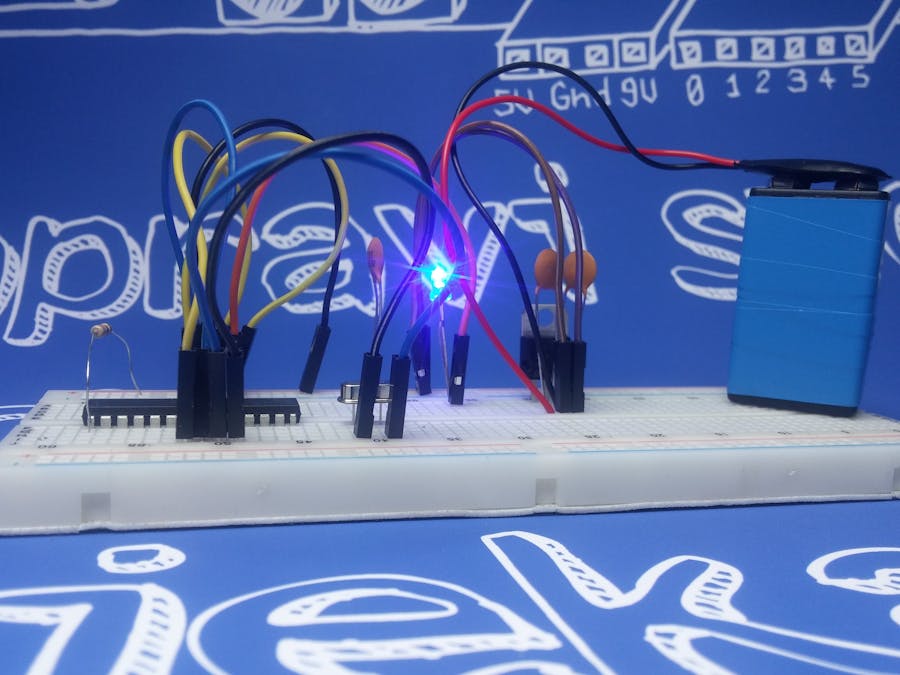

Arduino Chip AtMega328p on the Protoboard

A chip was removed from the control unit of an Arduino Uno and placed on an ATmega328P protoboard. A fun project.

BeginnerShowcase (no instructions)30 minutes838
Arduino Chip AtMega328p on the Protoboard

Things used in this project

Hardware components

Microchip AtMega328p
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1
LED (generic)
LED (generic)
×1
16 MHz Crystal
16 MHz Crystal
×1
Capacitor 10 nF
Capacitor 10 nF
×3
Linear Regulator (7805)
Linear Regulator (7805)
×1

Story

Read more

Schematics


Code

Untitled file

Arduino
Any program
int led=13;

void setup() {
  pinMode(led, OUTPUT);
}

void loop() {
  digitalWrite(led, HIGH);
  delay(1000);
  digitalWrite(led, LOW);
  delay(1000);
}
