Flip-disc Binary Clock

Binary clock based on electromechanical flip-disc displays.

IntermediateWork in progress1 hour283

Things used in this project

Hardware components

2x6 Flip-disc Display

Software apps and online services

Arduino IDE

Story

I decided to design a binary clock using flip-disc displays. I use the Arduino platform very often and this time I did the same. The clock is basically a simplified and modified copy of the Arduino Uno (see the diagram and description below) and the code is written in the Arduino IDE. Flip-disc Binary Clock can be found on Kickstarter.

The clock should display hours and minutes. I also thought about seconds but came to the conclusion that reading seconds in the binary system can introduce unnecessary confusion - decoding the value takes a while, of course you can learn to read it quickly but for an inexperienced user it can be inconvenient. Assuming that each disc is another bit, with 6 discs the largest value is 63, which is ideal for displaying seconds 0-59. The top row corresponding to the hours does not need as many bits but for the aesthetics of the clock it will have the same number of bits.

The top row for displaying hours and the bottom for minutes.

Flip-disc displays are really old technology, they are electromechanical displays. The control is very specific and is based on precise current pulses thanks to which we can rotate individual discs. A detailed explanation of how flip-disc displays work and how to control them can be found here.

Design assumptions:

modular design
displaying hours and minutes in binary code
ATmega328 as the heart of the clock
clock code written in Arduino IDE
option to update the clock code yourself
accurate RTC real-time clock on board
RTC backup power supply - supercapacitor
time setting buttons
clock power switch
simple, aesthetic casing for 3d printing and/or laser cutting

I like modular construction of electronic devices, so the clock will be a compact structure of two pcb boards connected to each other and to the casing with a set of spacers. The clock consists of two main modules: a 2x6 display module and a clock controller module.

2x6 Flip-disc display

Display with two rows of 6 discs each. The simplest way to control flip-disc display is to control one disc at a time (see detailed explanation). With this assumption, we can treat both rows as a matrix of two rows and 6 columns, which will reduce by half the number of mosfet transistors needed to control individual discs. See the diagram below or download.

2x6 Flip-disc Display

I used mosfet N/P transistors to directly control the discs, while the transistors are controlled by two popular 595D shift registers. This reduced the number of control lines used by the microcontroller to 3. You can, of course, omit the shift registers and control the transistors directly through the microcontroller using 16 pins but then only a few pins remain for other tasks. I also wanted the 2x6 flip-disc display to be versatile and usable for purposes other than the binary clock. There is another advantage of using shift registers that I didn't mention: the displays can be connected in series with each other up to 8 and all the time the number of control lines will remain the same - only 3 lines. Connecting flip-disc displays in series is made possible by a dedicated library for Arduino FlipDisc.h

2x6 Flip-disc Display Pinout

2x6 Flip-disc Display PCB

2x6 Flip-disc Display

Binary Clock Controller

Below you will find a schematic of the clock controller - download schematic.

Binary Clock Controller Schematic

I chose the RX8025T real-time clock - I wrote the RX8025T.h library for Arduino. The accuracy of the clock is comparable to the popular DS3231.

How the binary clock works: The RX8025T stores the current time and generates an interrupt to the INT0 output every 60 seconds. The ATmega328, upon detecting the interrupt, reads the current time from the RTC and displays it on the flip-disc display in binary code. The RTC clock has a backup power supply, a supercapacitor. Two buttons are used to set the time and the 12/24 hour format. The clock's power supply is quite archaic as it is 12V - this was the easiest way without unnecessary DC-DC converters. The microcontroller and all control electronics operate on a 5V.

VF - power supply for flip-disc displays requires some more extensive explanation.

Simplified diagram of the pulse (shaper) generator power supply for flip-disc display

The pulse shaper power supply consists of two transistor switches and a capacitors. When the CH (charging) line is turned on, the capacitor accumulates charge, then the charge is released when the PL (pulse) line is turned on.

Operating principles of the pulse (shaper) generator power supply for flip-disc display

A more detailed description of the operation can be found here.

Flip-disc Binary Clock PCB

1 / 3 • Flip-disc Binary Clock PCB

The controller board can be connected to the flip-disc display board via the PH1 pin connector on both boards. To further stiffen the structure, there are 4 spacers of 6mm length between the boards, the remaining spacers are used to screw the clock to the casing.

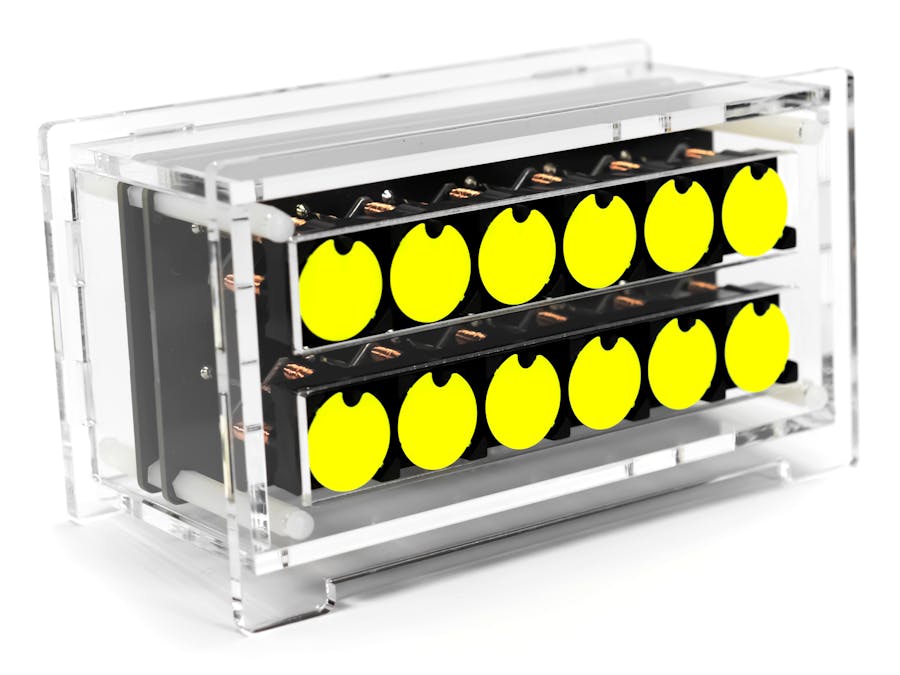

Binary Clock without casing

How to Read Binary Time

The clock displays hours and minutes. The top row displaying hours and the bottom row displaying minutes. The time is displayed in binary code, i.e. each of the discs in the two rows has a different bit weight, starting from 2^0 = 1, each successive bit is another power of two 2^1 = 2, 2^2 = 4 etc. Inactive discs are ignored and have a binary representation of 0, while displayed discs are 1. Adding up the active discs, we can read the time.

It may not be easy at first and requires some mental effort, but it gives some intellectual satisfaction and you can quickly learn to read the binary code.

How to Read Binary Time

Casing Design

3d printable - design no.1 - open
3d printable - design no.2 - open
3d printable - design no.3 - open

Design no.1

Design no.2

Design no.3

Arduino Code

The heart of the clock is the ATmega 328 microcontroller (default 16 MHz external crystal). The clock code was written in the Arduino IDE and uses MiniCore.

If you want to upload your own code, there is an ISP connector on board for programming. If you use a programmer that allows you to power the microcontroller to be programmed, all you have to do is turn off (slide switch) the clock during programming. If the programmer (e.g. Atmel-ICE ISP) requires an additional power supply for the microcontroller to be programmed, the clock controller board should be disconnected from the flip-disc display board during programming - this is very important because the flip-disc display may be damaged during programming.

Binary Clock Controller PCB - ISP Connector

Flip-disc Binary Clock can be found on Kickstarter.

Code

Flip-disc Binary Clock Code

/*-----------------------------------------------------------------------------------------------*
 * Flip-disc 2x6 Binary Clock by Marcin Saj https://flipo.io                                     *
 * https://github.com/marcinsaj/Flipo-Binary-Clock-2x6-Flip-Disc-Display                         *
 *                                                                                               *
 * Final Flip-disc Clock 4x7-Segment                                                             *
 * Setting Options:                                                                              *
 * - hour format 12/24                                                                           *
 * - time, hours & minutes                                                                       *
 *                                                                                               *
 * Attention!!! - Firmware update only for intermediate users!                                   *
 * The heart of the clock is the ATmega 328 microcontroller (default 16 MHz external crystal)    *
 * The clock code was written in the Arduino IDE and uses MiniCore                               *
 *                                                                                               *
 * If you want to upload your own code, there is an ISP connector on board for programming.      *
 * If you use a programmer that allows you to power the microcontroller to be programmed,        *
 * all you have to do is turn off (slide switch) the clock during programming.                   *
 * If the programmer (e.g. Atmel-ICE ISP) requires an additional power supply for                *
 * the microcontroller to be programmed, the clock controller board should be disconnected       *
 * from the 2x6 flip-disc display board during programming - this is very important because      *
 * the flip-disc display may be damaged during programming.                                      *
 *                                                                                               *
 * MiniCore - https://github.com/MCUdude/MiniCore                                                *
 * Clock schematic - https://bit.ly/BC-SCH                                                       *
 *-----------------------------------------------------------------------------------------------*/

#include <FlipDisc.h>         // https://github.com/marcinsaj/FlipDisc
#include <RTC_RX8025T.h>      // https://github.com/marcinsaj/RTC_RX8025T
#include <TimeLib.h>          // https://github.com/PaulStoffregen/Time
#include <Wire.h>             // https://arduino.cc/en/Reference/Wire (included with Arduino IDE)
#include <OneButton.h>        // https://github.com/mathertel/OneButton
#include <EEPROM.h>           // https://www.arduino.cc/en/Reference/EEPROM (included with Arduino IDE)


// Pin declaration for binary clock controller
#define EN_PIN  10
#define CH_PIN  A1
#define PL_PIN  A0

// Buttons
#define B1_PIN A3  // Right button
#define B2_PIN A2  // Left button

// RTC
#define RTC_PIN 2 // RTC interrupt input

// Display rows
static const uint8_t TOP_ROW = 2;
static const uint8_t BOT_ROW = 1;

// Aliases for individual option settings
static const uint8_t HR12 = 0;   // Display time in 12 hour format
static const uint8_t HR24 = 1;   // Display time in 24 hour format

// "0" - all discs are cleared
// "63" - all discs are set
static const uint8_t CLR_ALL = 0;
static const uint8_t SET_ALL = 63;

// Declare structure that allows convenient access to the time elements:
// - tm.Hour - hours
// - tm.Minute - minutes
tmElements_t tm;

// Initialize a new OneButton instance for a buttons
// BUTTON_PIN - Input pin for the button
// true - Button is active low
// true - Enable internal pull-up resistor
OneButton button1(B1_PIN, true, true);
OneButton button2(B2_PIN, true, true);

// Flags for storing button press status
bool shortPressButton1Status = false;
bool shortPressButton2Status = false;
bool longPressButton1Status = false;
bool longPressButton2Status = false;

// RTC interrupt flag
volatile bool interruptRtcStatus = false;

uint8_t binaryTopRowAR[6];
uint8_t binaryBotRowAR[6];

int hour_time = 0;
int minute_time = 0;
int time_hr = 0;

// Eeprom address where time format is stored
static const uint16_t ee_time_hr_address = 0;  // Time format 12/24 hour

uint32_t flipDelay = 5;
bool settingsStatus = false;


// Interrupt from RTC
void rtcInterruptISR(void)
{
  interruptRtcStatus = true;
}

void setup()
{
  Flip.Pin(EN_PIN, CH_PIN, PL_PIN);
  Flip.Init(D2X6);

  pinMode(RTC_PIN, INPUT_PULLUP);

  // RTC RX8025T initialization
  RTC_RX8025T.init();

  // Time update interrupt initialization. Interrupt generated by RTC (INT output):
  // "INT_SECOND" - every second,
  // "INT_MINUTE" - every minute.
  RTC_RX8025T.initTUI(INT_MINUTE);

  // "INT_ON" - turn ON interrupt generated by RTC (INT output),
  // "INT_OFF" - turn OFF interrupt.
  RTC_RX8025T.statusTUI(INT_ON);

  // Assign an interrupt handler to the RTC output,
  // an interrupt will be generated every minute to display the time
  attachInterrupt(digitalPinToInterrupt(RTC_PIN), rtcInterruptISR, FALLING);

  // Link the button functions
  button1.attachClick(ShortPressButton1);
  button2.attachClick(ShortPressButton2);
  button1.attachLongPressStart(LongPressButton1);
  // button2.attachLongPressStart(LongPressButton2);

  DelayTime(3000);

  // If the read values are different from expected, set the time format to 12 hours.
  time_hr = EEPROM.read(ee_time_hr_address);
  if(time_hr != HR12 && time_hr != HR24) time_hr = HR12;  // Set the time display to 12 hour format

  DisplayTime();
}


void loop()
{
  WatchButtons();
  if(interruptRtcStatus == true) DisplayTime();
  if(longPressButton1Status == true) SetTime();

  // Maybe for future settings
  // if(longPressButton2Status == true) DisplaySequence();
}

void DisplaySequence(void)
{
  // Maybe for future settings
}

void DisplayTime(void)
{
  GetRtcTime();

  DisplayData(BOT_ROW, minute_time);
  DisplayData(TOP_ROW, hour_time);

  interruptRtcStatus = false;
}


void GetRtcTime(void)
{
  // Get the time from the RTC and save it to the tm structure
  RTC_RX8025T.read(tm);

  hour_time = tm.Hour;
  minute_time = tm.Minute;

  // 12-Hour conversion
  if(time_hr == HR12)
  {
    if(hour_time > 12) hour_time = hour_time - 12;
    if(hour_time == 0) hour_time = 12;
  }
}


void DisplayData(uint8_t row, uint8_t data)
{
  uint32_t waitTime = 0;

  if(settingsStatus == true) waitTime = 0;
  else waitTime = flipDelay;

  if(row == BOT_ROW)
  {
    DecToBinary(data, binaryBotRowAR);
    for(int i = 1; i <= 6 ; i++)
    {
      Flip.Disc_2x6(1, i, binaryBotRowAR[i-1]);
      DelayTime(waitTime);
    }
  }

  if(row == TOP_ROW)
  {
    DecToBinary(data, binaryTopRowAR);
    for(int i = 1; i <= 6; i++)
    {
      Flip.Disc_2x6(1, i+6, binaryTopRowAR[i-1]);
      DelayTime(waitTime);
    }
  }
}

// Time settings, 12/24 format, hours and minutes
void SetTime(void)
{
  ClearPressButtonFlags();
  settingsStatus = true;

  uint8_t time_settings_level = 1;
  bool updateDisplay = true;

  do // Stay in settings until all values are set
  {
    WatchButtons();

    if(shortPressButton1Status == true || shortPressButton2Status == true)
    {
      if(shortPressButton1Status == true)
      {
        if(time_settings_level == 2) time_hr++;
        if(time_settings_level == 4) hour_time++;
        if(time_settings_level == 6) minute_time++;
      }

      if(shortPressButton2Status == true)
      {
        if(time_settings_level == 2) time_hr--;
        if(time_settings_level == 4) hour_time--;
        if(time_settings_level == 6) minute_time--;
      }

      ClearPressButtonFlags();
      updateDisplay = true;
    }

    if(longPressButton1Status == true)
    {
      time_settings_level++;
      if(time_settings_level >  6) time_settings_level = 0;  // Exit settings
      if(time_settings_level <= 6)
      {
        updateDisplay = true;
      }

      ClearPressButtonFlags();
    }

    if(updateDisplay == true)
    {
      if(time_settings_level == 1)
      {
        DisplayData(TOP_ROW, SET_ALL);
        DisplayData(BOT_ROW, SET_ALL);
        DelayTime(1000);
        time_settings_level = 2;
      }

      if(time_settings_level == 2)
      {
        // HR12 = 0; HR24 = 1;
        if(time_hr > 1) time_hr = 0;
        if(time_hr < 0) time_hr = 1;
        if(time_hr == HR12) DisplayData(TOP_ROW, 12);
        if(time_hr == HR24) DisplayData(TOP_ROW, 24);
      }

      if(time_settings_level == 3)
      {
        DisplayData(TOP_ROW, SET_ALL);
        DisplayData(BOT_ROW, SET_ALL);
        DelayTime(1000);
        GetRtcTime();
        time_settings_level = 4;
      }

      if(time_settings_level == 4)
      {
        if(time_hr == HR12)
        {
          if(hour_time > 12) hour_time = 1;
          if(hour_time <= 0) hour_time = 12;
        }

        if(time_hr == HR24)
        {
          if(hour_time > 23) hour_time = 0;
          if(hour_time <  0) hour_time = 23;
        }

        DisplayData(TOP_ROW, hour_time);
      }

      if(time_settings_level == 5)
      {
        DisplayData(TOP_ROW, SET_ALL);
        DisplayData(BOT_ROW, SET_ALL);
        DelayTime(1000);
        time_settings_level = 6;
      }

      if(time_settings_level == 6)
      {
        if(minute_time > 59) minute_time = 0;
        if(minute_time <  0) minute_time = 59;

        DisplayData(BOT_ROW, minute_time);
      }

      updateDisplay = false;
    }
  } while(time_settings_level > 0);

  // setTime(hh, mm, ss, day, month, year)
  // The date is skipped and the seconds are set by default to 1
  // We are only interested in hours and minutes
  setTime(hour_time, minute_time, 0, 1, 1, 1);

  // Set the RTC from the system time
  RTC_RX8025T.set(now());

  EEPROM.write(ee_time_hr_address, time_hr);

  settingsStatus = false;
  DisplayTime();
}

// Better delay function
void DelayTime(uint32_t delayTime)
{
  uint32_t millis_time_now = millis();
  do
  {
    // do nothing
  } while(millis() - millis_time_now < delayTime);
}

// Converting decimal values to binary
void DecToBinary(uint8_t decValue, uint8_t binaryArray[])
{
  for(int i = 0; i < 6; i++)
  {
    binaryArray[i] = decValue & B00000001;
    decValue = decValue >> 1;
  }
}

// Keep watching the buttons
void WatchButtons(void)
{
  button1.tick();
  button2.tick();
}

// Button flags clearing function
void ClearPressButtonFlags(void)
{
  shortPressButton1Status = false;
  shortPressButton2Status = false;
  longPressButton1Status = false;
  longPressButton2Status = false;
}

// Button press handling functions
void ShortPressButton1(void){shortPressButton1Status = true;}
void ShortPressButton2(void){shortPressButton2Status = true;}
void LongPressButton1(void){longPressButton1Status = true;}
void LongPressButton2(void){longPressButton2Status = true;}

Credits

Marcin Saj

28 projects • 29 followers

I am currently involved in the development of the Flipo.io and NixieTester.com project.

Contact

Comments

Please log in or sign up to comment.

Flip-disc Binary Clock

Things used in this project

Hardware components

Software apps and online services

Story

Design assumptions:

2x6 Flip-disc display

Binary Clock Controller

How to Read Binary Time

Casing Design

Arduino Code

Schematics

2x6 Flip-disc Display Module

2x6 Flip-disc Display Pinout

2x6 Flip-disc Display Dimensions

2x6 Flip-disc Binary Clock Schematic

Code
