Build Your Own Luxmeter 🎉

Measure light like a pro! Build your own Luxmeter with our DIY kit. Accurate readings, customizable design. Shed light on your world! 🌍

BeginnerFull instructions provided1 hour1,000

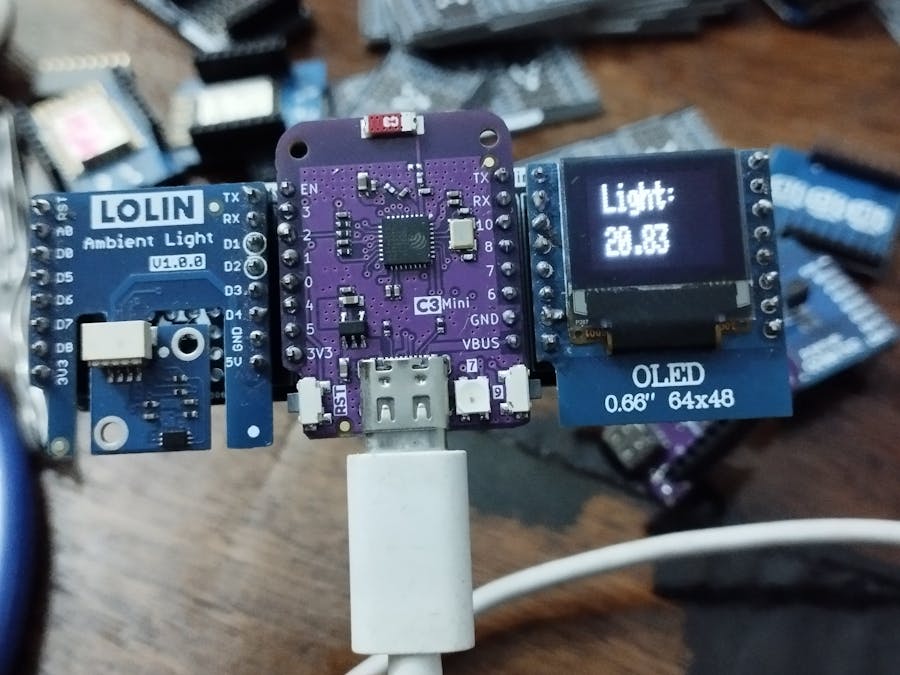

Build Your Own Luxmeter 🎉

Things used in this project

Hardware components

BH1750 ambient light sensor
×1
Adafruit O.66 OLED display
×1
C3-Mini
×1
Triple adapter
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Components simple scheme

Here is all you need for your project

Code

Sketch

C/C++
This code runs with the C3 mini and BH1750-Ambient light sensor
#include <Wire.h>
 #include <Adafruit_GFX.h>
 #include <Adafruit_SSD1306.h>
 #include <BH1750.h>

 #define OLED_RESET 22 // GPIO22
 Adafruit_SSD1306 display(OLED_RESET);

 BH1750 light(0x23);

 void setup() {
   Serial.begin(115200);
   Wire.begin(8, 10);
   display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
 }

 void loop() {
   // Clear the buffer.
   display.clearDisplay();
   display.setTextSize(1);
   display.setCursor(40, 10);
   display.setTextColor(WHITE);

   if (light.begin(BH1750::CONTINUOUS_HIGH_RES_MODE)) {
     display.println("Light: ");
     display.setTextSize(1);
     display.setCursor(40, 21);
     display.print(light.readLightLevel());
   } else {
     display.println("Error!");
   }
   display.display();
   delay(1000);
 }
