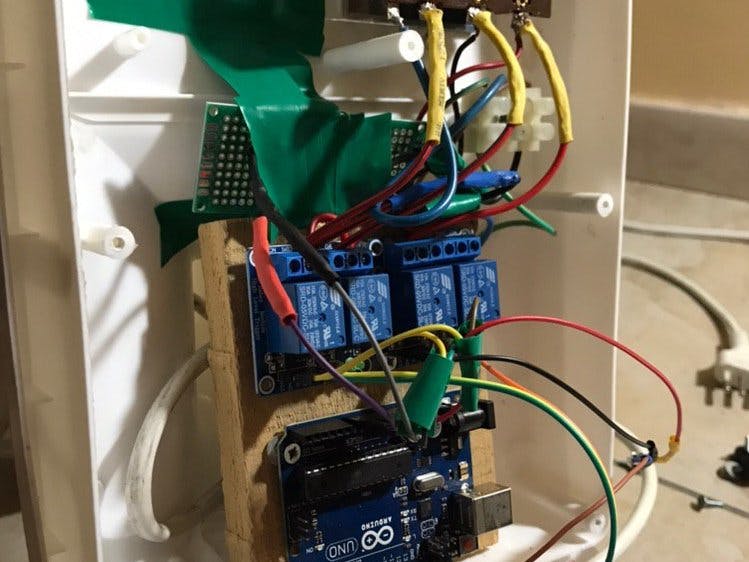

IR Remote for Fan

Turn on/off your fan without getting up, just by using an IR remote.

AdvancedFull instructions provided4 hours6,521

Things used in this project

Hardware components

Seeed Studio Grove - 2-Channel SPDT Relay

Arduino UNO

IR receiver (generic)

IR Remote

Hi-Link HLK-PM01

UTSOURCE Electronic Parts

Hand tools and fabrication machines

Soldering iron (generic)

Cable Cutter, 200mm

Heat Shrinking Tube

Story

So, I found this little Fan (it should be at least 10 years old), which was powered by some buttons and I had to get up from my bed/chair/whatever I was sitting on just to turn it on/off or to change speed (it has 3 speed).

So I came up with this idea of turning it off/on and changing speed with a simple IR Remote, obtaining a lot of comfort during hot summer days and nights.

So, I think that was a very nice idea and everything works properly.

Obviosuly, you can use that approach for every household appliance you have in your home, hope you will find it useful!

You can also find this project on PCBWay.com at this link!

Sponsor Link: Utsource.net

Reviews: It is a trustworthy website for ordering electronic components to complete projects!

Have a nice day :)

Just one thing: YOU'RE WORKING WITH 220V, SO BE VERY VERY VERY VERY VERY CAREFUL BECAUSE YOU COULD SERIOUSLY HARM YOURSELF.

I used a 220V to 12V inverter to power Arduino directly from 220V.

It fit almost perfectly!

Code

#include <IRremoteInt.h>

#include <IRremote.h> // use the library
int receiver = 11; // pin 1 of IR receiver to Arduino digital pin 11
IRrecv irrecv(receiver); // create instance of 'irrecv'
decode_results results;

void setup()
{
  Serial.begin(9600); // for serial monitor output
  irrecv.enableIRIn(); // Start the receiver
  pinMode(5, OUTPUT); //IN1 of first Relay
  pinMode(6, OUTPUT); //IN2 of first Relay
  pinMode(7, OUTPUT); //IN1 of second Relay
}
void loop()
{
  if (irrecv.decode(&results)) // have we received an IR signal?
  {
    Serial.println(results.value, HEX); // display it on serial monitor in hexadecimal
    irrecv.resume();// receive the next value
  }

 //Check if other Relays are OFF before turning ON the one selected.
  if (results.value == 0x"YOURCODE1"){
    if (digitalRead(6) == LOW && digitalRead(7) == LOW) {
    digitalWrite(5, HIGH);
  }
    else if(digitalRead(6) == HIGH || digitalRead(7) == HIGH) {
      digitalWrite(6, LOW);
      digitalWrite(7, LOW);
      delay(1000); //Wait a sec just to be sure of not causing a short circuit
      digitalWrite(5, HIGH);
    }
  }

 if ( results.value == 0x"YOURCODE2"){
  if (digitalRead(5) == LOW && digitalRead(7) == LOW) {
    digitalWrite(6, HIGH);
  }
  else if(digitalRead(5) == HIGH || digitalRead(7) == HIGH) {
      digitalWrite(5, LOW);
      digitalWrite(7, LOW);
      delay(1000);
      digitalWrite(6, HIGH);
    }
 }

 if ( results.value == 0x"YOURCODE3"){
  if (digitalRead(5) == LOW && digitalRead(6) == LOW) {
    digitalWrite(7, HIGH);
  }
  else if(digitalRead(5) == HIGH || digitalRead(6) == HIGH) {
      digitalWrite(5, LOW);
      digitalWrite(6, LOW);
      delay(1000);
      digitalWrite(7, HIGH);
    }
 }

// Put here your code for turning off the Fan
 if ( results.value == 0x"YOURCODE4"){
  digitalWrite(5, LOW);
  digitalWrite(6, LOW);
  digitalWrite(7, LOW);
 }

}

#include <IRremoteInt.h>

#include <IRremote.h> // use the library
int receiver = 11; // pin 1 of IR receiver to Arduino digital pin 11
IRrecv irrecv(receiver); // create instance of 'irrecv'
decode_results results;

void setup()
{
  Serial.begin(9600); // for serial monitor output
  irrecv.enableIRIn(); // Start the receiver
  pinMode(9, OUTPUT); // Pin 9 output
}
void loop()
{
  if (irrecv.decode(&results)) // have we received an IR signal?
  {
    Serial.println(results.value, HEX); // display it on serial monitor in hexadecimal
    irrecv.resume();// receive the next value
  }

}
