One day my son's boat was at the dock, and a storm caused it to sink as it filled with water. I wanted to build something that could monitor the water level, use its own power supply, and communicate using cellular communication. I decided that NB-IOT fit the bill perfectly because it uses very low power, and is able to sleep and maintain a connection. If an alarm is triggered the modem could wake up and send the message, otherwise it would wake up ever 6 hours and let me know its still working. I wanted to make a board that could communicate to an MQTT server, or a cloud IOT service such as AWS or Azure. I found the Quectel BC66 which was a low cost part. I needed a way to program it, and decided to use a Raspberry Pi Pico. The Pico could be used to monitor all kinds of sensors, and send the data to the server. I added a low impedance alarm which could sense a current through water, and added it to the board.
The Quectel modem has a state called PSM (program sleep mode). With the Pico sending commands to the modem, I was able to tell the modem to run for 1 minute, and sleep for 12 hours. I also needed to put the Pico to sleep, so the draw on the battery was as low as possible. With the Pico and the modem sleeping the system only draws very little power, and with a short wake up time, it meant that with a solar charger and battery, the whole system would run for months. Even while sleeping. If an alarm was triggered it would wake up the system, and send the alarm.
Set up.I had a hardware developer design the board, and Quectel reviewed it. I ordered the boards from PCBWay, and started to write the code. Along the way Quectel upgraded the BC66 to the BC660K which was a better chip, and we upgraded to it.
The top and bottom of the boards
Using the commands for the BC660K I programmed the board using Thonny. With Thonny I ordered SIMs from 1NCE and was able to connect to a service provider. It took a bit of time at first, but once it connected the first time, it connected quickly after that. I created a lambda function using AWS IOT-Hub and sent MQTT messages to it. These were stored in a AWS Dynamo DB.
PowerThe most difficult part was checking the power consumption. I used a Nordic Power Profiler Kit II to measure the power consumption. I was able to power consumption well below 1mA in sleep mode, and with the solar panel ran from months. My next version will include a battery, because it will eventually run out of power depending on weather and time of year.
The Nordic Power Profile Kit was a great help

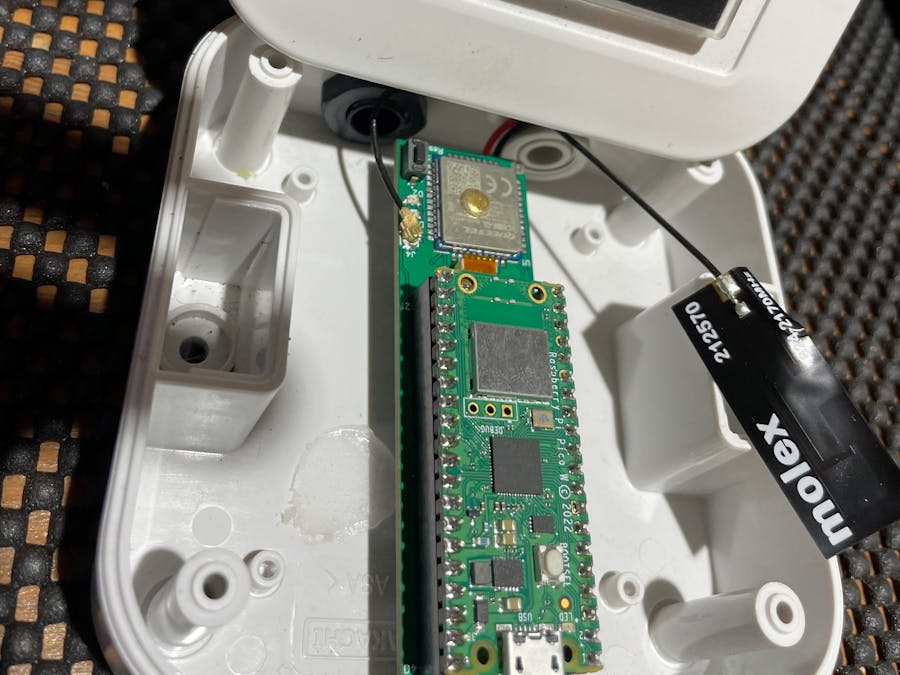

I put the two boards into the Voltaic box and built a detector to trigger the alarm if the water level go to high. The board will work on anything that closes the circuit, but be careful. The impedance is very low. You can trigger it holding the wires with your fingers. I created a float switch which when filled with water will trigger the alarm.
Simple float switch in a clear PVC pipe
The boat isn't in the water now that its winter, but I hope to try it out this spring. All the components works, and I tested it in a bucket, just have to make sure everything is water tight.
Python code for watchible
PythonAll of the code is here https://github.com/CrabbyPete/watchible/tree/master/software
"""
This version used both processors, one to read and the other to do the main work.
"""
import re
import time
import json
import config
import machine
import _thread
MONITOR: bool = False
PSM_SLEEP = 21600 # 21600=6 hours 43200=12 hours
HOURS_SLEEP = 6
RESTART = 1
RESET = 2
READING = 3
REGISTERED = 4
MQTTOPENED = 5
MQTTNOTOPENED = 6
MQTTCLOSED = 7
MQTTCONNECTED = 8
MQTTPUBLISHED = 9
def logger(s):
debug.write(s+'\r\n')
if MONITOR:
debug = machine.UART(0, 115200, tx=machine.Pin(0), rx=machine.Pin(1))
log = logger
else:
log = print
# Create a lock to share states read from the modem
lock = _thread.allocate_lock()
# Use UART1 to talk to the BC66 modem
modem = machine.UART(1, 115200, timeout=100, timeout_char=100, rxbuf=3*1024, txbuf=3*1024)
# These pins are defined on the Watchible board
water_alarm = machine.Pin( 2, machine.Pin.IN, machine.Pin.PULL_UP)
alarm_led = machine.Pin( 3, machine.Pin.OUT, machine.Pin.PULL_DOWN)
reset_btn = machine.Pin(13, machine.Pin.OUT, machine.Pin.PULL_DOWN)
pwr_reset = machine.Pin(14, machine.Pin.OUT, machine.Pin.PULL_DOWN)
psm_eint = machine.Pin(15, machine.Pin.OUT, machine.Pin.PULL_UP)
pico_led = machine.Pin("LED", machine.Pin.OUT)
def time_str(set_to: str = None):
"""
Return the current date and time as string
:param: set_to str: set the local time from the modem time eg.24/03/03,16:33:55-20
:return: str: datetime string
"""
if set_to:
rgx = re.compile("\D+")
values = rgx.split(set_to)
values = list(map(int, values))
values[6] = 0
values.insert(3, 0)
rtc = machine.RTC()
log(f"time values {values}")
rtc.datetime(values)
t = time.localtime()
try:
s = f"{t[0]}-{t[1]:02d}-{t[2]:02d} {t[3]:02d}:{t[4]:02d}:{t[5]:02d}"
except TypeError as e:
return str(e)
return s
def callback(p):
"""
Alarm interrupt callback, wake up the modem by hitting the reset pin
:param p:
"""
global last_alarm, alarm_set
log('Alarm')
now = time.time()
# Check to see it the alarm has gone off already in the last hour
if not last_alarm or now - last_alarm > 3600:
log('Alarm')
alarm_set = True
# Trigger the modem to wake up
psm_eint.value(0)
time.sleep(1)
psm_eint.value(1)
last_alarm = now
# Set up the interrupt for the alarm
water_alarm.irq(trigger=machine.Pin.IRQ_FALLING, handler=callback)
def temperature(voltage='3300'):
"""
Read the on-board temperature
:return:
"""
try:
voltage = int(voltage)/1000
adc = machine.ADC(4)
adc_voltage = adc.read_u16() * (voltage/65535)
log(f"volts:{str(adc_voltage)}")
return str(27 - (adc_voltage - 0.706)/0.001721)
except Exception as e:
log(f"Error:{e} in temperature")
else:
return "unknown"
# Shared state variables. Use the lock to change them if shared with the reader
psm = False
cert = False
done = False
alarm_set = False
die_signal = False
ccid = None
clock = None
battery = None
last_alarm = None
ip_address = None
state = RESET
modem_model = "Quectel_BC660K-GL"
def set_state(state_value):
global state
with lock:
state = state_value
def get_state():
global state
with lock:
return state
def reader():
"""
Use a separate process thread to read messages from the modem
:return: Never
"""
global modem_model, done, die_signal
handler = ModemState({})
while not die_signal:
# Look for anything coming from the modem
if modem.any():
try:
line = modem.readline()
except Exception as e:
log("Error reading uart {}".format(str(e)))
continue
log(f'"{line}"')
try:
line = line.decode('utf-8', 'ignore')
except Exception as e:
log("Error:{} decoding line {}".format(str(e), line))
continue
# State changes from the modem start with +
if line.startswith('+'):
try:
status, result = line.split(':', 1)
except ValueError as e:
log(f"Error:{str(e)} for {line}")
else:
status = status.replace('+', '').strip()
if hasattr(handler, status):
func = getattr(handler, status)
func(result)
# if BROM in message, it means the modem reset, This will happen after leaving PSM mode
elif 'BROM' in line or 'RDY' in line:
set_state(RESTART)
elif 'Quectel' in line:
with lock:
modem_model = line.replace('\r','').replace('\n','')
log(modem_model)
# All commands will either come back with OK, ERROR: you can sync and wait, but not implemented
elif 'OK' in line or 'ERROR' in line:
with lock:
done = True
elif line.startswith('>'):
set_state(READING)
else:
time.sleep_ms(100)
# Die signal
log("Reader closing")
_thread.exit()
class ModemState:
_connect_handler = None
_subscribe_handler = None
_disconnect_handler = None
_publish_handler = None
def __init__(self, config={}):
"""
"""
self._subscribe_handler = config.get('on_subscribe')
self._connect_handler = config.get('on_connect')
self._disconnect_handler = config.get('on_disconnect')
self._publish_handler = config.get('on_publish')
def CEREG(self, result):
"""
Reply whether the modem is registered on the network
There are 2 types solicited and unsolicited
e.g.: +CEREG: 1,5\r\n' solicited
You can loose a connection for an instance and still retain the MQTT setup if it comes back
:param result:
:return:
"""
result = result.replace('\r\n', '').replace(' ','').split(',')
try:
# If it's an unsolicited response it will be 1 element <stat>
if len(result) == 1 and int(result[0]) in (1, 5):
set_state(REGISTERED)
# If it's a solicited response it will be <n><stat>
elif len(result) >= 2:
if int(result[1]) in (1, 5):
set_state(REGISTERED)
# 0 = stap trying 3 = registration denied
elif int(result[1]) in (0,3):
set_state(RESTART)
except ValueError as e:
log(f"ValueError:{e} for CEREG:{result}")
''' All capital letter functions are read returns from the modem e.g. +QCCID: '''
def QCCID(self, result):
"""
Get the ccid +QCCID: 89882280666027595366\r\n'
:param result: string of numbers as text for the SIM CCID :
:return:
"""
global ccid
with lock:
ccid = result.strip()
def CGMM(self,result):
"""
Return the modem model
:param result: modem model string eg Quectel_BC660K-GL
"""
global modem_model
modem_model = result.replace('\r','').replace('\n','')
def QMTOPEN(self, result):
"""
Open MQTT host e.g. +QMTOPEN: <tcp connection>, <state>
:param result: -1 Failed to open network
0 Network opened successfully
"""
result = result.split(',')
try:
if int(result[1]) == 0:
set_state(MQTTOPENED)
log("Opened MQTT")
else:
set_state(MQTTNOTOPENED)
log("Failed to open MQTT")
except ValueError as e:
log(f"ValueError:{e} for QMTOPEN:{result}")
def QMTSTAT(self, result):
"""
Unsolicited MQTT status change +QMTSTAT: <TCP_connectID>,<err_ code> 1,2,3
:param result: the string after :
:return:
"""
result = result.split(',')
log(f"MQTT connection closed {result}")
try:
if int(result[1]) > 0:
set_state(MQTTCLOSED)
log("MQTT connection closed")
if self._disconnect_handler:
self._disconnect_handler(result)
elif self._connect_handler:
self._connect_handler(result)
except ValueError as e:
log(f"ValueError:{e} for QMTSTAT:{result}")
def QMTCONN(self, result):
"""
# +QMTCONN: <TCP_connectID>,<result>[,<ret_code>]
:param result:
1 MQTT is initial
2 MQTT is connecting
3 MQTT is connected
4 MQTT is disconnecting
:return:
"""
result = result.split(',')
# If an unsolicited response +QMTCONN: <TCP_connectID>,<result>[,<ret_code>]
if len(result) == 3:
try:
if int(result[2]) == 0:
set_state(MQTTCONNECTED)
log(f"MQTT connected")
if self._connect_handler:
self._connect_handler(result)
except Exception as e:
log(f"Error:{e} for QMTCONN:{result}")
else:
try:
if int(result[1]) == 3:
set_state(MQTTCONNECTED)
# log(f"MQTT connected")
if self._connect_handler:
self._connect_handler(result)
elif int(result[1]) in (1, 2):
pass
elif int(result[1]) == 4:
set_state(MQTTCLOSED)
except ValueError as e:
log(f"ValueError:{e} for QMTCONN:{result}")
def QMTPUB(self, result):
"""
Result of a publish command e.g. +QMTPUB: 0,0,0\r\n'
"""
result = result.split(',')
if self._publish_handler:
self._publish_handler(result)
set_state(MQTTPUBLISHED)
def QMTRECV(self, result):
"""
+QMTRECV: 0,0,"device/status","it works" If PSM sleeping this will not happen
:param result: the string after :
:return:
"""
try:
result = result.split(',')
line = result[3]
log(line)
except ValueError as e:
log(f"ValueError:{e} for QMTRECV:{result}")
if self._subscribe_handler:
self._subscribe_handler(result)
def QMTCLOSE(self, result):
result = result.split(',')
if int(result[1]) == 0:
set_state(MQTTCLOSED)
def QMTDISC(self, result):
result = result.split(',')
if int(result[1]) == 0:
set_state(MQTTCLOSED)
def CBC(self, result):
"""
# Get the current battery level e.g. +CBC: 0,0,3275 Battery level
:param result: str: remaining return
:return:
"""
global battery
result = result.split(',')
try:
volts = result[2].replace('\r\n', '').strip()
except (ValueError, IndexError) as e:
volts = result[0].replace('\r\n', '').strip()
with lock:
battery = volts
def CTZE(self, result):
"""
Unsolicited timezone reporting
:param result: eg "-16",1,"2024/07/26,22:32:32"\r\n'"
<timezone in quarters, daylightsavings, datetime"
"""
def CCLK(self, result):
"""
Get current time from network '+CCLK: 24/02/19,14:57:04-20\r\n'
For some strange reason Quectel split timeszone up by 4 so -20 is really -5
:param result: What is left after the command
Get the current clock time from the network eg. b'+CCLK: 2023/03/09,14:02:31GMT-5\r\n'
"""
global clock
set_to = False
with lock:
clock = result.replace('\r\n', '').strip()
if set_to:
log(time_str(clock))
def QNBIOTEVENT(self, result):
""" Unsolicited QNBIOT events, show the state of PSM
"""
global psm
#log(time_str())
if 'ENTER PSM' in result or 'ENTER DEEPSLEEP' in result:
with lock:
psm = True
elif 'EXIT PSM' in result:
with lock:
psm = False
def IP(self, result):
"""
IP status
:param result:
:return:
"""
global ip_address
if len(result.split('.')) == 4:
with lock:
ip_address = result
def CGDCONT(self, result):
"""
# "+CGDCONT: 1,"IPV4V6","iot.nb","30.2.17.172",0,0,0,,,,,,0,,0"
:param result: the string after :
:return:
"""
global ip_address
result = result.split(',')
try:
ip_address = result[3].split('.')
if len(ip_address) == 4:
with lock:
ip_address = result[3]
except IndexError:
pass
class BC66:
"""
Basic functions of the BC66 modem to get it working
"""
global die_signal
def __init__(self):
die_signal = False
try:
self.read = _thread.start_new_thread(reader, ())
except Exception as e:
log(f"Error:{e} starting read thread")
def __del__(self):
die_signal = True
def power_reset(self):
pwr_reset.value(0)
time.sleep_ms(500)
pwr_reset.value(1)
time.sleep_ms(500)
pwr_reset.value(0)
reset_btn.value(0)
def reset(self):
"""
Reset the modem and cause a boot, same as hitting the button on the modem
"""
#psm_eint.value(1)
reset_btn.value(1)
time.sleep_ms(100)
reset_btn.value(0)
time.sleep_ms(100)
set_state(RESET)
def network_ready(self, timeout=None):
"""
Determine if the modem is registered on the network
:return: True
"""
self.send_at('cereg=1')
now = time.time()
while True:
if get_state() == REGISTERED:
break
self.send_at("cereg?")
if timeout:
t = now - time.time()
if t > timeout:
return False
time.sleep(1)
return True
def send_at(self, command, wait=False):
"""
Send an AT command to the modem
:param command: str: the at command to send
:return:
"""
global done
if wait:
with lock:
done = False
if not command.startswith('at'):
command = 'at+' + command
command = command + '\r'
modem.write(bytes(command, 'utf-8'))
if wait:
while True:
with lock:
if done:
break
time.sleep(1)
else:
time.sleep_ms(100)
def set_cert(self, name, fyle, context_id, connect_id):
"""
Set up a cert
:param name: name of the modem cert to set
:param fyle: the path of the file to read
:return:
"""
current = get_state()
self.send_at(f'qsslcfg={context_id},{connect_id},"{name}"')
while not get_state() == READING:
time.sleep_ms(10)
with open(fyle, 'rb') as f:
for line in f.readlines():
modem.write(line)
time.sleep_ms(100)
modem.write(bytes([26]))
time.sleep_ms(1000)
set_state(current)
def certificate(self, cacert, clientcert=None, clientkey=None):
"""
Set up the AWS MQTT certificate
:return:
"""
log(f"'{modem_model}'")
# BC66 starts with 1, BC660K starts with 0
if modem_model == "Quectel_BC66":
context_id = 1
connect_id = 1
else:
context_id = 0
connect_id = 0
# Will return error in BC66
self.send_at(f'qsslcfg={context_id},{connect_id},"sslversion",4')
self.send_at(f'qsslcfg={context_id},{connect_id},"seclevel",2')
#self.send_at('qsslcfg=0,0,"debug",4')
self.set_cert('cacert', cacert, context_id, connect_id)
if clientkey:
self.set_cert('clientkey', clientkey, context_id, connect_id)
if clientcert:
self.set_cert('clientcert', clientcert, context_id, connect_id)
return context_id, connect_id
def mqtt(self, host, port, context_id, connect_id):
"""
Connect to MQTT server
:param host: host string
:param port: host port
:param context_id:
:param connect_id:
:return:
"""
global ccid
tcp_id = 1
self.send_at(f'qmtcfg="ssl",{tcp_id},1,{context_id},{connect_id}')
# Open the MQTT broker
self.send_at(f'qmtopen={tcp_id},"{host}",{port}')
for _ in range(120):
s = get_state()
if s in (MQTTOPENED, MQTTNOTOPENED):
break
time.sleep_ms(2000)
else:
return False
if s == MQTTOPENED:
command = f'qmtconn={tcp_id},"{ccid}"'
self.send_at(command)
else:
return False
for _ in range(120):
s = get_state()
if s in (MQTTCONNECTED, MQTTCLOSED):
break
self.send_at('QMTCONN?')
time.sleep_ms(2000)
if s == MQTTCONNECTED:
return True
else:
return False
def subscribe(self, topic):
"""
Subscribe to the current topic
:param topic: topic string to subscribe to
:return: None
"""
if get_state() == MQTTCONNECTED:
self.send_at(f'qmtsub=1,1,"{topic}",0')
def publish(self, wake_ups):
"""
MQTT publish the current status
:return:
"""
global battery, clock
with lock:
volts = battery
msg = json.dumps({'ccid': ccid,
'alarm': alarm_set,
'temperature': temperature(),
'volts': volts,
'timestamp': clock,
'wakes':str(wake_ups)})
current_state = get_state()
self.send_at('qmtpub=1,0,0,0,"device/state"'.format(msg))
while not get_state() == READING:
time.sleep_ms(10)
modem.write(msg)
modem.write(bytes([26]))
while not get_state() == MQTTPUBLISHED:
time.sleep(1)
set_state(current_state)
def close(self):
"""
Close the current MQTT session
:return:
"""
self.send_at('qmtclose=1')
while not get_state() == MQTTCLOSED:
time.sleep_ms(500)
def main():
global alarm_set, modem
pico_led.on()
bc66 = BC66()
bc66.reset()
bc66.power_reset()
time.sleep(1)
pico_led.off()
""" Use this to change network provider
bc66.send_at('cfun=0')
bc66.send_at(f'qcgdefcont="IPV4V6","{config.apn}"')
bc66.send_at('qcgdefcont?')
bc66.send_at('cfun=1')
"""
bc66.send_at('cgmm',True)
context_id, connect_id = bc66.certificate(config.cacert, config.clientcert, config.clientkey)
# Initialize
commands = [
'qledmode=0', # Turn off LED on network
'qnbiotevent=1,1', # Report PSM events
'qcfg="dsevent",1', # Turn on reporting events
f'qpsms=30,{PSM_SLEEP}' if modem_model == "Quectel_BC660K-GL" else 'cpsms=1,,,"00100001","00000000"',
'qccid'
]
for command in commands:
bc66.send_at(command)
# Loop forever
wake_ups = 0 # Keep track how many times you wake so you can see a reboot
while True:
wake_ups += 1
bc66.network_ready()
pico_led.on()
commands = [
'qsclk=0', # Turn off PSM while we send commands
'cclk?', # Get the time
'cbc', # Get the battery level
'qccid',
'qpsms?',
'qmtcfg="timeout",1,30,10,1'
]
for command in commands:
bc66.send_at(command)
#bc66.certificate(1)
ok = bc66.mqtt(config.host, config.port, context_id, connect_id)
if ok:
bc66.publish(wake_ups)
else:
log("MQTT Failed")
bc66.close()
#bc66.send_at('qsclk=1') # Turn PSM back on
# Wait to enter PSM
while True:
with lock:
if psm:
break
time.sleep(1)
# Turn the LED off
pico_led.off()
# Now wait to leave PSM
for _ in range(HOURS_SLEEP):
log(f"sleep @{time_str()}")
with lock:
if not psm:
break
if PSM_SLEEP < 3600:
machine.lightsleep(PSM_SLEEP*1000) # Sleep for an hour at a clip an interrupt will cause it to wake
else:
machine.lightsleep(3600*1000)
if alarm_set:
log('alarm triggered')
break
log(f"wake up @{time_str()}")
set_state(RESET)
if __name__ == '__main__':
while True:
try:
main()
except Exception as e:
log(f"Error:{e} in main")
1 project • 1 follower
I started my career at Bell Labs and Sony Research Lab, developing firmware for all kinds of great hardware.
Comments
Please log in or sign up to comment.
