Connecting Wi-Fi on Raspberry Pi Pico Become Easy

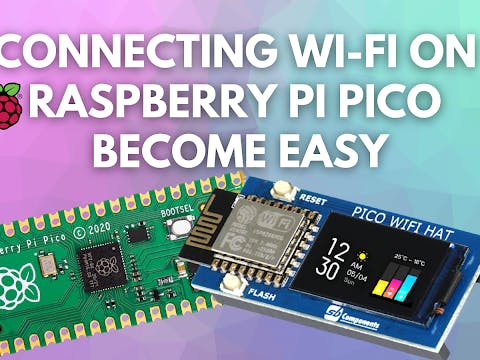

There are several articles for connecting Raspberry Pi Pico to Wi-Fi or Ethernet, which are amazing but takes a lot of time  to discover WiFi on Pico. Recently SB Components announced Raspberry Pi Pico WiFi HAT with Display, this Pico Wi-Fi HAT reduced the effort for conneting Wi-Fi on Pico and made simple and easy. Display on Raspberry Pi Pico WiFi HAT looks amazing on it and it can be customized and very useful with amazing display quality. You can use Pico WiFi display to view SSID or connections, Monitor display sensor data, check wheather information or Network time and much more check Display GitHub Page for Codes.

Pico WiFi HAT is compact and smart WiFi HAT for Raspberry Pi Pico with prety display on the board it has an ESP8266 module, IEEE 802.11b/g/n WiFi Standard, with 3.3v Operating Voltage, UART Communication interface, and a 40-pin GPIO extension header that can be controlled via AT Command and supports TCP/UDP communication protocol, and the small prety display comes with 240 x 135 pixels, 65K RGB colours, and a sharp and vivid exhibiting effect, designed primarily for user engagement via SPI connection by incorporating a GPIO header.

The 1.14-inch LCD includes the ST7789 Driver and SPI Interface, decreasing the amount of IO pins required. Pico WiFi HAT helps in many IoT projects and saves a lot of time, you can also check out the Wiki Page of Pico WiFi HAT & Pico WiFi HAT GitHub Repository.

Pico WiFi HAT Features:

• ESP8266 module with four-layers process
• Standard Raspberry Pi Pico 40-pin GPIO extension header
• Supports STA, AP, and STA+AP three Wi-Fi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication
• 2x functional buttons
• Comes with development resources and manual

Pico WiFi HAT Specifications

• Operating Voltage - 3.3 V (Internally connected on Pico 3v3 pin)
• Communication - UART Interface
• UART BAUD RATE - 115200 bps
• Wi-Fi Standard - IEEE 802.11b/g/n
• Frequency Range - 2400 ~ 2483.5 MHz
• Wi-Fi Operating Mode - Wi-Fi STA, Wi-Fi AP, Wi-Fi STA+AP
• Protocol - TCP, UDP
• Antenna - PCB Antenna
• Operating Temperature - -40℃ ~ 85℃

This Raspberry Pi Pico WiFi HAT is also available to buy on SB Components.
