Rafa Juárez
Published © GPL3+

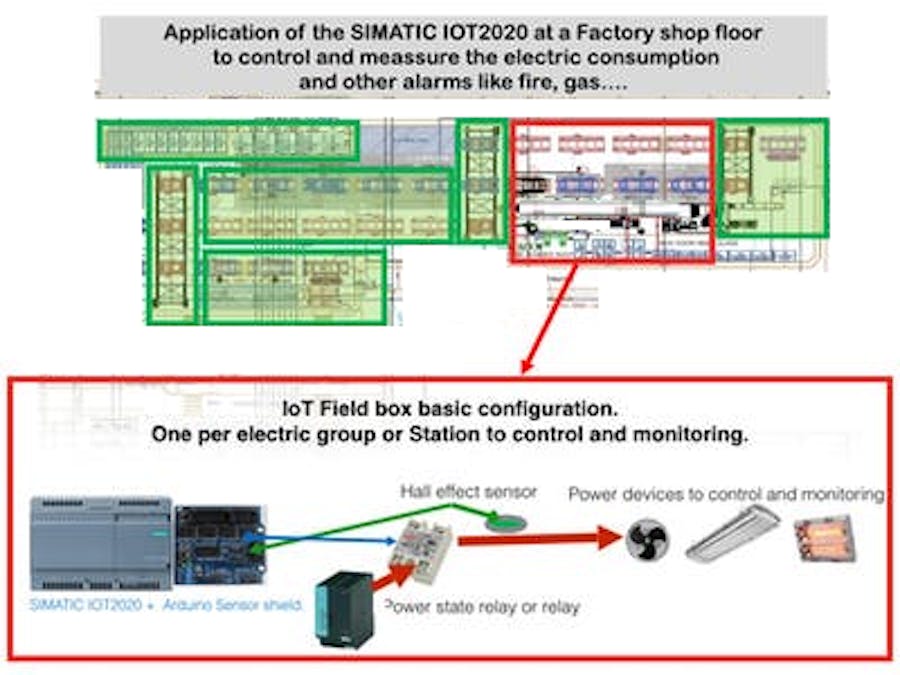

Control and monitoring of electric consumption in a Factory

A new decentralized system that will control and monitorice the consumption and other alarms like fire, gas leakage in a Factory.

IntermediateWork in progressOver 1 day370
Control and monitoring of electric consumption in a Factory

Things used in this project

Hardware components

SIMATIC IOT2020
Siemens SIMATIC IOT2020
×1
Adafruit arduino sensor shield
×1
Solid State Relay
Solid State Relay
×1
Hall Effect Sensor
Hall Effect Sensor
×1
power supply
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

multi meter

Custom parts and enclosures

Documentation of IOT2020

Credits

Rafa Juárez

Rafa Juárez

18 projects • 39 followers
Very interested in prototyping of new ideas. 30 years experience in electronics.
