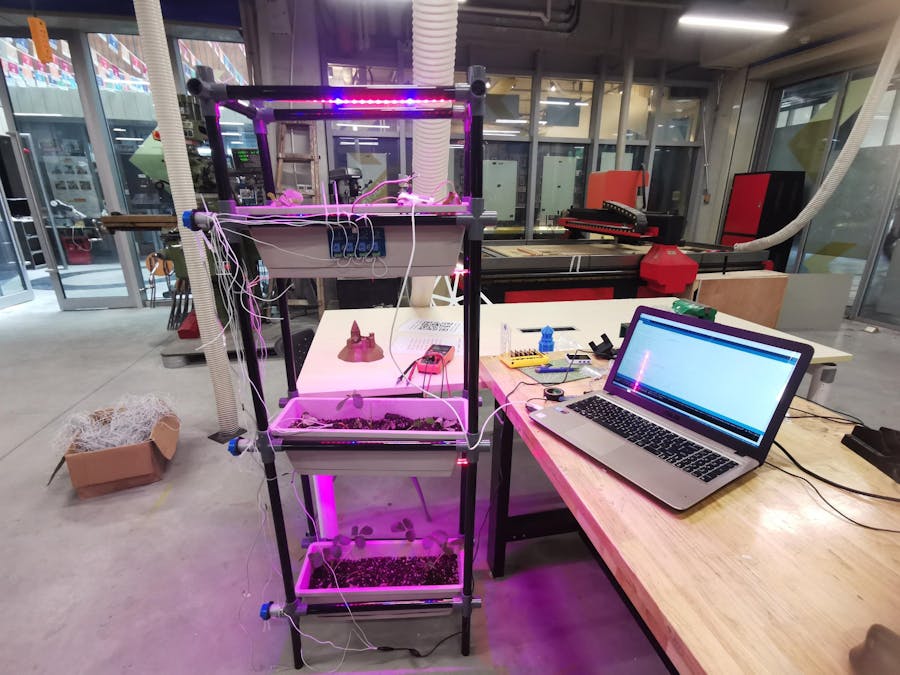

Strawberry Growth Monitor

/****************************************
  Include Libraries
****************************************/

#include <PubSubClient.h>
#include <TFT_eSPI.h>
#include <rpcWiFi.h>

TFT_eSPI tft;
#include <multi_channel_relay.h>  //

Multi_Channel_Relay relay;
int sensorPin_0 = A0;
int sensorPin_1 = A1;
int sensorPin_2 = A2;
float sensorValue_0 = 0;
float sensorValue_1 = 0;
float sensorValue_2 = 0;
int Relay = 400;

/****************************************
  Define Constants
****************************************/

#define WIFISSID "x.factory" // Put your WifiSSID here
#define PASSWORD "make0314" // Put your wifi password here
#define TOKEN "BBFF-kVnBwT4h3leAslyRqe6LX1HzfGbrbT" // Put your Ubidots' TOKEN
#define VARIABLE_LABEL "light" // Assign the variable label
#define VARIABLE_LABEL1 "soil1" // Assign the variable label
#define VARIABLE_LABEL2 "soil2" // Assign the variable label
#define VARIABLE_LABEL3 "soil3" // Assign the variable label
#define DEVICE_LABEL "wio-terminal" // Assign the device label
#define MQTT_CLIENT_NAME "7711538145" // MQTT client Name
//#define LCD_BACKLIGHT (72Ul)

const long interval = 100;
unsigned long previousMillis = 0;


char mqttBroker[] = "industrial.api.ubidots.com";

// Space to store values to send


/****************************************
  Initialize constructors for objects
****************************************/

WiFiClient wifiClient;
PubSubClient client(wifiClient);


static int light = 0;
static int soil_1 = 0;
static int soil_2 = 0;
static int soil_3 = 0;

static int conf = 0;   //
static int cont = 0;
static int cons = 0;

char str_light[6];
char str_Soil_1[6];
char str_Soil_2[6];
char str_Soil_3[6];

char payload[700];
char topic[150];
/****************************************
  Auxiliar functions
****************************************/
void read_soil() //
{
  soil_1 = analogRead(A0);
  soil_2 = analogRead(A1);
  soil_3 = analogRead(A2);
  light = analogRead(WIO_LIGHT);
  Serial.print("soil_1 = ");
  Serial.println(soil_1);
  Serial.print("soil_2 = ");
  Serial.println(soil_2);
  Serial.print("soil_3 = ");
  Serial.println(soil_3);
  if (soil_1 < 500) {
    relay.turn_on_channel(4);
  }else{
     relay.turn_off_channel(4);
    }
  if (soil_2 < 500) {
    relay.turn_on_channel(3);
  }else{
     relay.turn_off_channel(3);
    }
  if (soil_3 < 500) {
    relay.turn_on_channel(2);
  }else{
     relay.turn_off_channel(2);
    }
  if (light < 80) {
    relay.turn_on_channel(1);
  }else{
     relay.turn_off_channel(1);

    }


}

void jidianqi(int zhaungtai)
{
  if (zhaungtai == 1) relay.turn_on_channel(4);Serial.println("jiaoshui1");
  if (zhaungtai == 2) relay.turn_on_channel(3);Serial.println("jiaoshui2");
  if (zhaungtai == 3) relay.turn_on_channel(2);Serial.println("jiaoshui3");
  if (zhaungtai == 4) relay.turn_on_channel(1);Serial.println("kaideng");
   if (zhaungtai == 5) {
    relay.turn_off_channel(1);
     relay.turn_off_channel(2);
      relay.turn_off_channel(3);
       relay.turn_off_channel(4);
    }
  }
void callback(char* topic, byte* payload, unsigned int length) {

  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.print("] ");
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
  }

}

void reconnect() {
  // Loop until we're reconnected
  while (!client.connected()) {
    Serial.println("Attempting MQTT connection...");

    // Attempt to connect
    if (client.connect(MQTT_CLIENT_NAME, TOKEN, "")) {
      Serial.println("connected");
    }
    else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 2 seconds");
      // Wait 2 seconds before retrying
      delay(2000);
    }
  }
}


/****************************************
  Main Functions
****************************************/

void setup() {
  Serial.begin(115200);
  relay.begin(0x11);    //
  tft.begin();
  tft.setRotation(3);
  tft.setTextSize(2);
  tft.fillScreen(TFT_BLACK);
  digitalWrite(LCD_BACKLIGHT, HIGH);
  pinMode(WIO_LIGHT, INPUT);

  // Set WiFi to station mode and disconnect from an AP if it was previously connected
  WiFi.mode(WIFI_STA);
  WiFi.disconnect();

  tft.drawString("Connecting to WiFi...", 20, 120);
  WiFi.begin(WIFISSID, PASSWORD);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    tft.drawString("Connecting to WiFi...", 20, 0);
    WiFi.begin(WIFISSID, PASSWORD);
  }

  tft.fillScreen(TFT_BLACK);
  tft.drawString("Connected to the WiFi network", 20, 120);
  tft.fillScreen(TFT_BLACK);
  delay(1000);
  client.setServer(mqttBroker, 1883);
  client.setCallback(callback);
}

void loop() {
  send_date();
  read_soil();
  //jidianqi(cont);
  Serial.println(cont);
}

void send_date() {

  float light = analogRead(WIO_LIGHT);
  dtostrf(soil_1, 4, 0, str_Soil_1);
  dtostrf(soil_2, 4, 0, str_Soil_2);
  dtostrf(soil_3, 4, 0, str_Soil_3);
  dtostrf(light, 4, 0, str_light);
  tft.fillRect(140, 110, 100, 15, TFT_BLACK);
  tft.drawString(str_light, 140, 110);


  if (!client.connected()) {
    reconnect();
  }

  //***Publish***

  // Builds the topic
  sprintf(topic, "%s", ""); // Cleans the topic content
  sprintf(topic, "%s%s", "/v1.6/devices/", DEVICE_LABEL);

  //Builds the payload
  sprintf(payload, "%s", ""); // Cleans the payload
  sprintf(payload, "{\"%s\":", VARIABLE_LABEL); // Adds the variable label
  sprintf(payload, "%s%s", payload, str_light); // Adds the value
  sprintf(payload, "%s}", payload); // Closes the dictionary brackets

  client.publish(topic, payload);
  delay(500);

  tft.drawString("Topic", 0, 140);
  tft.drawString(topic, 0, 160);
  tft.drawString("Payload", 0, 190);
  tft.fillRect(100, 210, 100, 15, TFT_BLACK);
  tft.drawString(payload, 0, 210);

  sprintf(payload, "%s", ""); // Cleans the payload
  sprintf(payload, "{\"%s\":", VARIABLE_LABEL1); // Adds the variable label
  sprintf(payload, "%s%s", payload, str_Soil_1); // Adds the value
  sprintf(payload, "%s}", payload); // Closes

  client.publish(topic, payload);

  delay(500);

  sprintf(payload, "%s", ""); // Cleans the payload
  sprintf(payload, "{\"%s\":", VARIABLE_LABEL2); // Adds the variable label
  sprintf(payload, "%s%s", payload, str_Soil_2); // Adds the value
  sprintf(payload, "%s}", payload); // Closes

  client.publish(topic, payload);

  delay(500);

  sprintf(payload, "%s", ""); // Cleans the payload
  sprintf(payload, "{\"%s\":", VARIABLE_LABEL3); // Adds the variable label
  sprintf(payload, "%s%s", payload, str_Soil_3); // Adds the value
  sprintf(payload, "%s}", payload); // Closes

  client.publish(topic, payload);

  delay(500);
  client.loop();
}
