Button checker

Checks if the button is working right

BeginnerFull instructions provided232
Button checker

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Tactile Switch, Top Actuated
Tactile Switch, Top Actuated
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

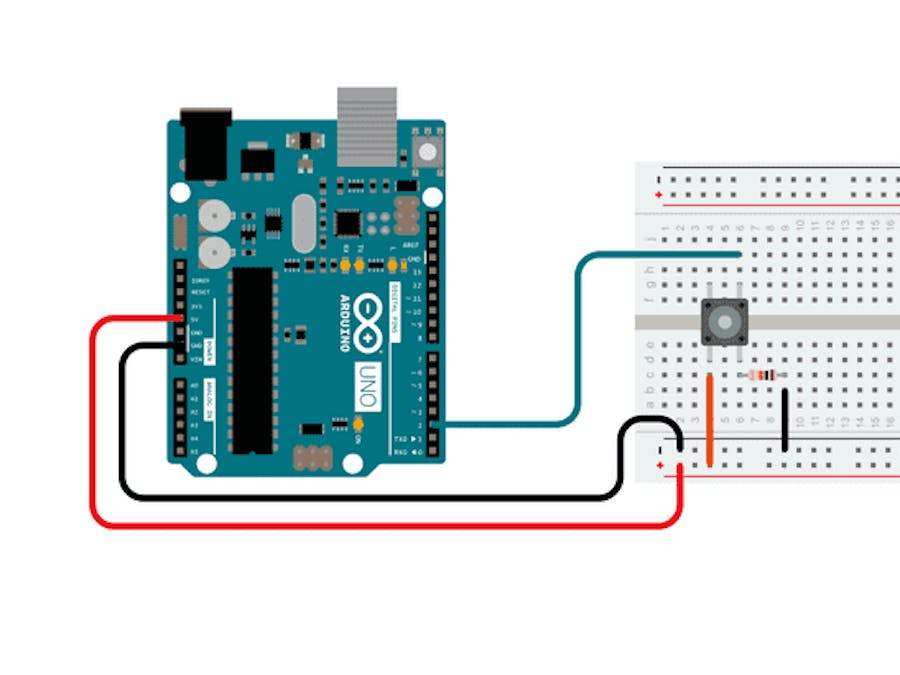

Schematic:

circuit:

Code

the full code:

Arduino
download and use it!
#define buttonPin 2
#define ledPin 13
bool state = 0;
bool lastRead = 0;
void setup() {
 // put your setup code here, to run once:
Serial.begin(9600);
pinMode(2,INPUT);
pinMode(13,OUTPUT);
}
void loop() {
 // put your main code here, to run repeatedly:
state = digitalRead(2);
if(state != lastRead)
{
 Serial.println(state);
digitalWrite(ledPin,state)
 lastRead = state;
}
}
