ATtiny LED Matrix Display Badge

Have you ever thought of making a badge-sized PCB that can display some letters, numbers, etc... or your name?

In this project, I will be showing how I built a badge-sized ATtiny85-based LED matrix display (5x4 matrix). I have used Charliplexing technique for driving 20 LEDs using ATtiny85.

Charlieplexing

Charliplexing is a technique for driving a multiplexed display in which relatively few I/O pins on a microcontroller are used, e.g. to drive an array of LEDS. The method uses the tri-state logic capabilities of microcontroller in order to gain efficiency over traditional multiplexing.

The formula for Charlieplexing is

LEDs = n^2 - n

where 'n' is the number of pins used.

I use an ATtiny85 programmed with the arduino as ISP.So it uses 5 pins for 20 LEDs.

More info on Charlieplexing: http://en.wikipedia.org/wiki/Charlieplexing

This project is open source. If you would like to build your own, all of the resources are available in the GitHub.

Watch Video

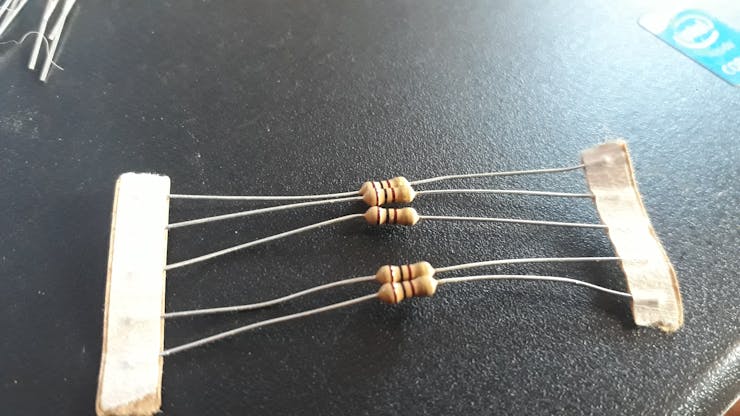

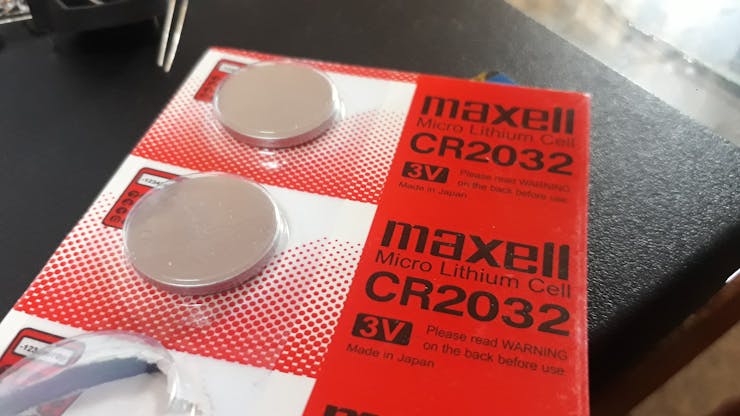

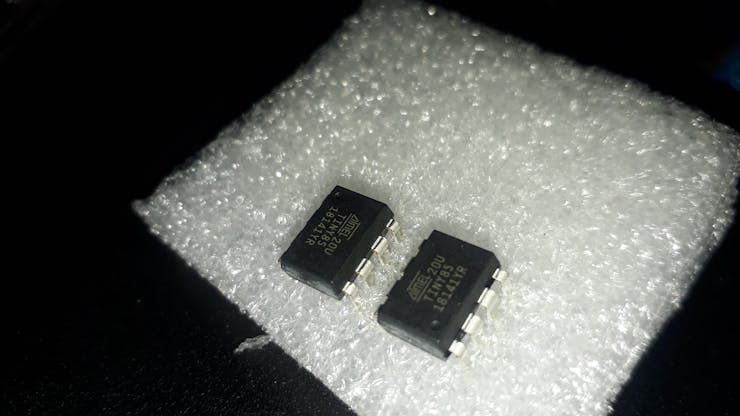

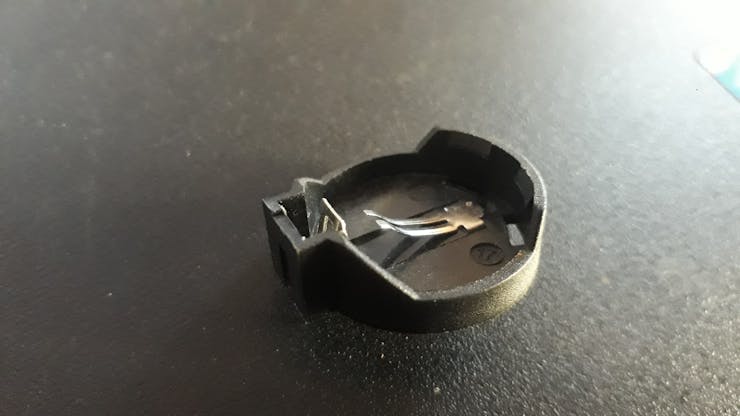

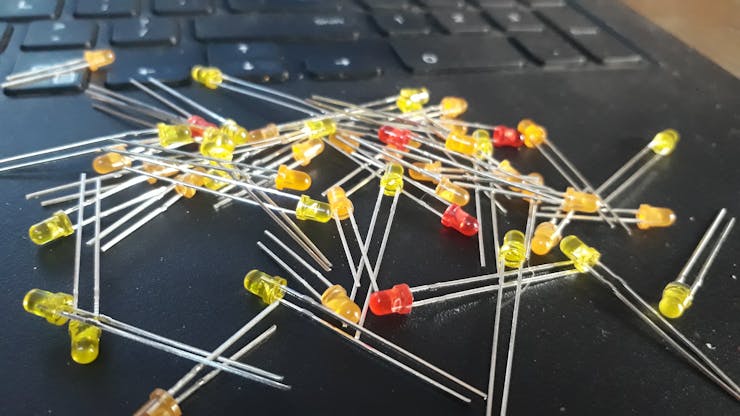

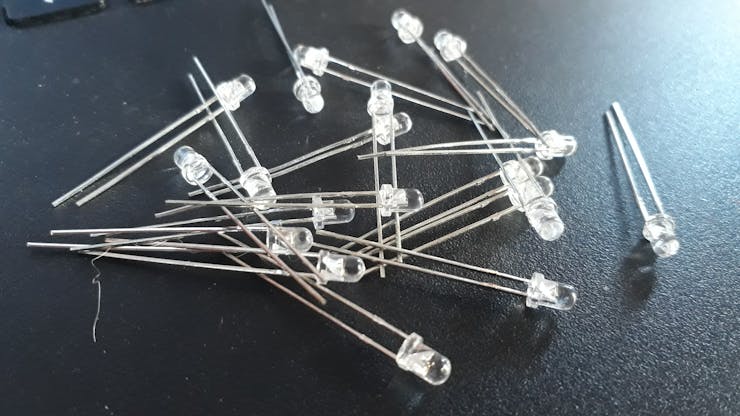

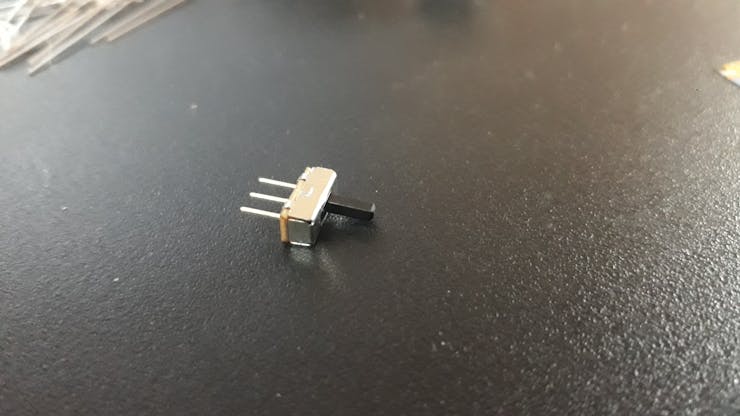

Get the Parts and Materials!

The Prototype!

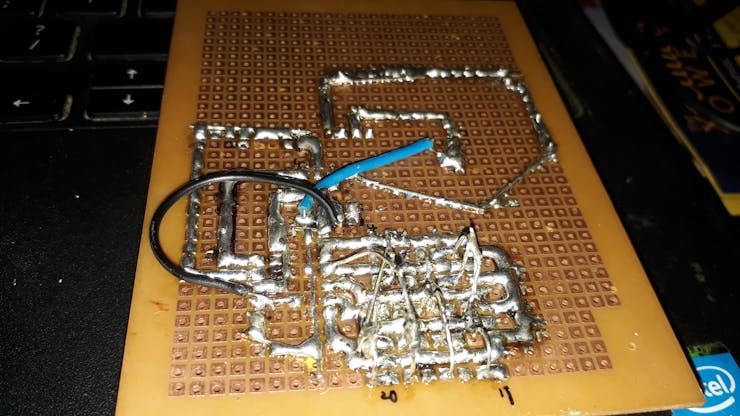

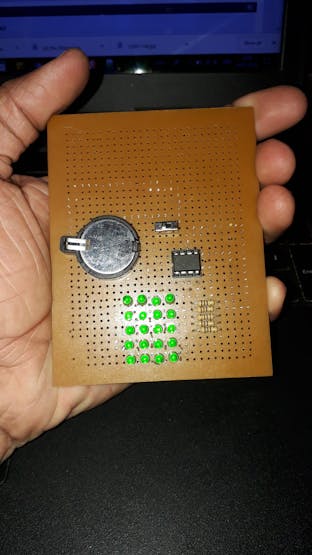

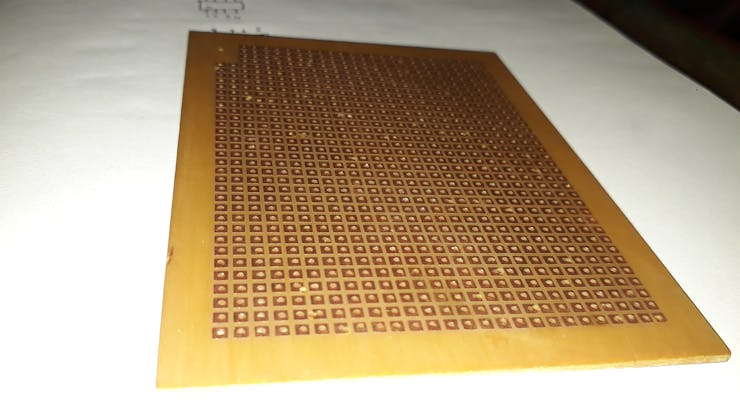

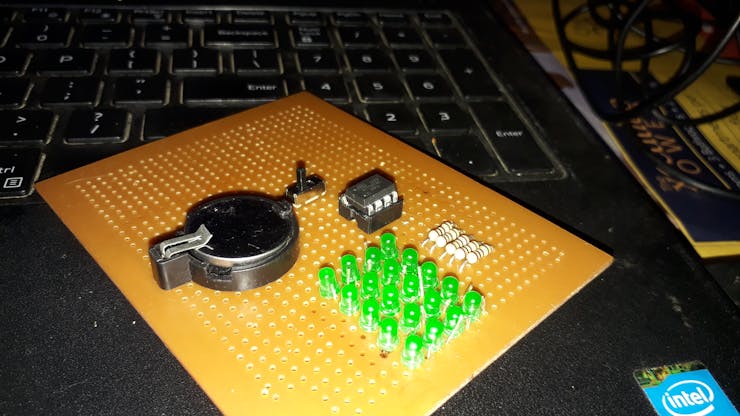

Before designing a PCB, I decided to build a prototype on a perfboard.

And it worked fine......

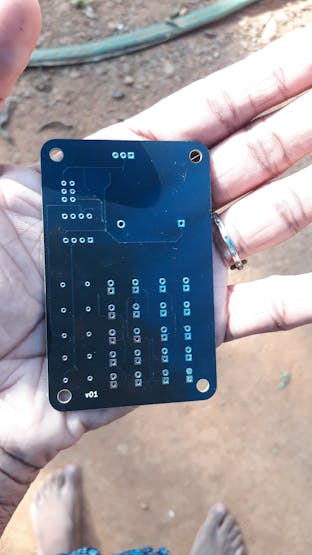

PCB Design

I used KiCad for PCB Design.The edge cut were made using .DXF file which was designed and generated using Autodesk Fusion 360.

The size of PCB badge was 55*86 mm.

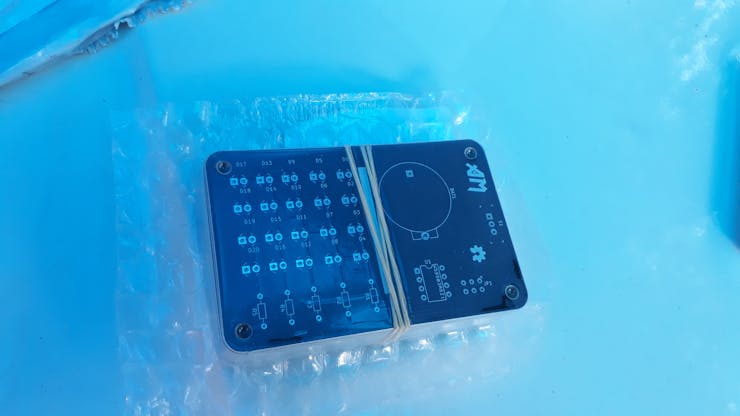

I quoted and ordered PCB through PCBWay.com.

Note:

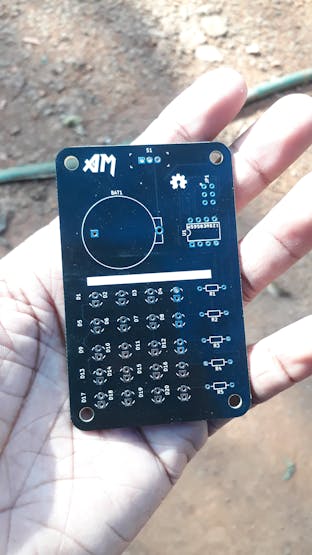

The White Silk Screen On the center is provided to Write your Name or Whatever you want :)

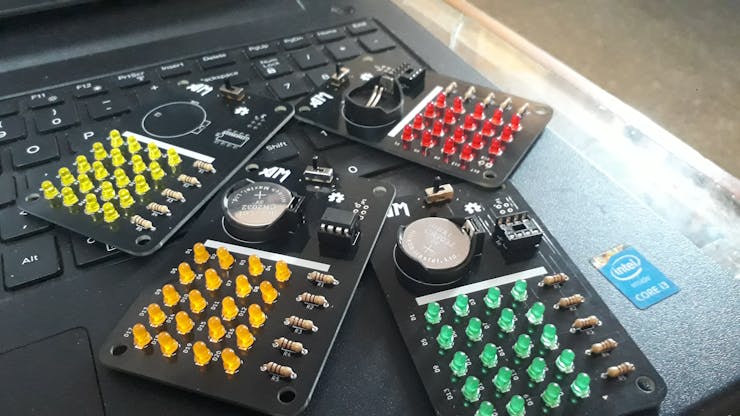

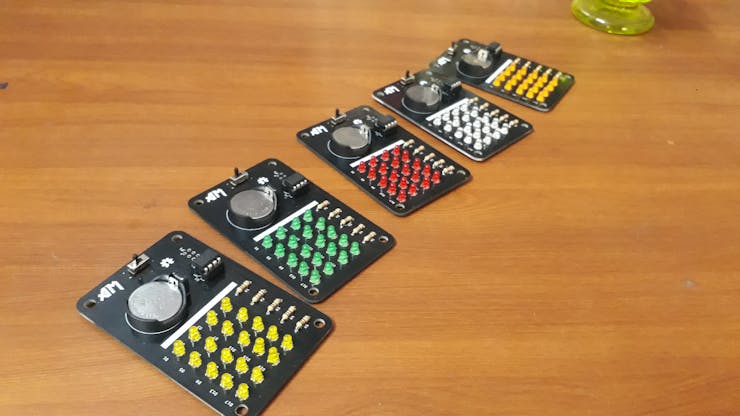

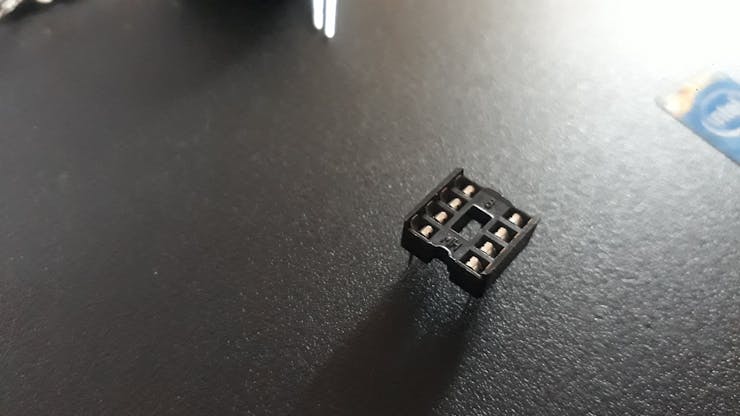

After soldering the PCB looks like this:

Wire the Circuit to Flash ATtiny

(DON'T insert the battery now.)

On the PCB I have provided 6 pin connector for programming ATtiny85.the small dot near the 6-pin connector is the first pin (MISO), see the photos for alternative connections.

• Arduino +5V ---> VCC
• Arduino GND --->GND
• Arduino pin 10 --->RST
• Arduino pin 11 --->MOSI
• Arduino pin 12 --->MISO
• Arduino pin 13 --->SCK

Follow the below link for programming ATtiny:

https://www.hackster.io/amalmathewtech/multi-source-controlled-usb-lamp-0b6060#toc-wire-the-circuit-to-flash-attiny-4

After Configuring Arduino IDE Tools Menu, upload below arduino sketch

Download all Required files from my GitHub page:https://github.com/amalmathewtech/ATtiny_LED_Matrix_Display_Badge

#define MAP_START      32
#define DISPLAY_WIDTH  4
#define DISPLAY_HEIGHT 5
// "pixels" per second
#define SPEED          12
// the text to display
#define DISPLAY_STRING "  ATTINY LED MATRIX DISPLAY BADGE    "
// maps characters to their 4x5 grid
unsigned long characterMap[59];
// set up a character in the characterMap
void Chr(char theChar, unsigned long value) {
 characterMap[theChar - MAP_START] = value;
}
// The offset of our string in the display
int offset = 0;
unsigned long lastMillis = 0;
unsigned long currentMillis = 0;
unsigned int timeout;
char myString[] = DISPLAY_STRING;
int length = sizeof(myString);
// render the string on the given offset
void renderString(char *theString, int offset) {
 int index = 0;
 while (theString[index]) {
   renderCharacter(theString[index], offset - index * (DISPLAY_WIDTH + 1));
   index++;
 }
}
// render a character on the given offset
void renderCharacter(char theChar, int charOffset) {
 if (charOffset <= -DISPLAY_WIDTH || charOffset > DISPLAY_WIDTH) {
   // off the 'screen' nothing to do
   return;
 }
 unsigned long graphic = characterMap[theChar - MAP_START];
 for (byte y = 0; y < DISPLAY_HEIGHT; y++) {
   for (byte x = 0; x < DISPLAY_WIDTH; x++) {
     setPixel(3 - x + charOffset, y, graphic & 0x1);
     graphic = graphic >> 1;
   }
 }
}
// light a pixel at the given coordinates
void setPixel(byte x, byte y, boolean ledStatus) {
 if (x >= 0 && x < DISPLAY_WIDTH) {
   if (y <= x) {
     x++;
   }
   setLed(y, x, ledStatus);
 }
}
// turn on the pins to light a LED
void setLed(byte vin, byte gnd, boolean ledStatus) {
 delayMicroseconds(500);
 pinMode(0, INPUT);
 pinMode(1, INPUT);
 pinMode(2, INPUT);
 pinMode(3, INPUT);
 pinMode(4, INPUT);
 if(!ledStatus) return;
 pinMode(vin, OUTPUT);
 pinMode(gnd, OUTPUT);
 digitalWrite(vin, HIGH);
 digitalWrite(gnd, LOW);
}
// runs at start
void setup() {
 // set up render map
 // Rows:   1---2---3---4---5---
 Chr('A', 0b10011001111110010110);
 Chr('B', 0b01111001011110010111);
 Chr('C', 0b11100001000100011110);
 Chr('D', 0b01111001100110010111);
 Chr('E', 0b11110001011100011111);
 Chr('F', 0b00010001011100011111);
 Chr('G', 0b01101001110100011110);
 Chr('H', 0b10011001111110011001);
 Chr('I', 0b11100100010001001110);
 Chr('J', 0b00100101010001001110);
 Chr('K', 0b10010101001101011001);
 Chr('L', 0b11110001000100010001);
 Chr('M', 0b10011001111111111001);
 Chr('N', 0b10011001110110111001);
 Chr('O', 0b01101001100110010110);
 Chr('P', 0b00010001011110010111);
 Chr('Q', 0b10000110110110010110);
 Chr('R', 0b10010101011110010111);
 Chr('S', 0b11111000111100011111);
 Chr('T', 0b01000100010001001110);
 Chr('U', 0b01101001100110011001);
 Chr('V', 0b00100101100110011001);
 Chr('W', 0b01101111111110011001);
 Chr('X', 0b10011001011010011001);
 Chr('Y', 0b00110100011010011001);
 Chr('Z', 0b11110010010010001111);
 Chr(' ', 0b00000000000000000000);
 Chr('1', 0b11100100010001100100);
 Chr('2', 0b11110001011010000111);
 Chr('3', 0b01111000011010000111);
 Chr('4', 0b01001111010101100100);
 Chr('5', 0b01111000011100011111);
 Chr('6', 0b01101001011100010110);
 Chr('7', 0b00010010010010001111);
 Chr('8', 0b01101001011010010110);
 Chr('9', 0b01101000111010010110);
 Chr('0', 0b01101001110110110110);
 // how long to wait between shifting the display
 timeout = 1000 / SPEED;
}
// loops continuously
void loop() {
 currentMillis = millis();
 renderString(myString, offset);
 if (currentMillis - lastMillis > timeout) {
   lastMillis = currentMillis;
   // shift string over one "pixel"
   offset++;
   // if it's past the length of the string, start over from the beginning
   if (offset > length * (DISPLAY_WIDTH + 1)) {
     offset = -DISPLAY_WIDTH;
   }
 }
}

Thank you so much for reading if you need any more information feel free to ask in comments, and I'll do my best answer you.

Happy making! :)
