STEP1:What you'll need
1 / 6
For this tutorial you will need:
- Flame sensor (NPN silicon photo transistor)
- Buzzer
- LEDs
- 221 Ohm Resistors
- Breadboard
- Arduino uno

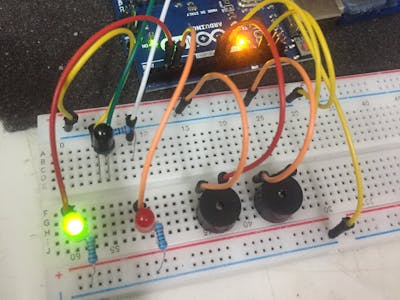

STEP2:The Circuit
If you don't know how NPN silicon photo transistor work click here
If you don't know how buzzers work click here or here
STEP3: Explanation
How it works.
Basically what happens is when you bring IR light source (e.g. Fire, TV Remote) with wavelength between 760nm ~ 1100nm the voltage across our IR sensor drops. The new voltage is recorded by the arduino and if its lower than our set threshold the alarm goes off and our Red LEDs start flashing.
