Published April 29, 2019 © CC BY-NC-SA

Birds

A STEM interactive animated project for BBC micro:bit part of the Art-a-Tronic interactive art project.

IntermediateFull instructions provided10 hours2,022

Things used in this project

Hardware components

BBC micro:bit board

kitroniAll-in-one robotic control board for BBC micro:bit

SG90 Micro-servo motor

Software apps and online services

Microsoft MakeCode

Hand tools and fabrication machines

Laser cutter (generic)

Story

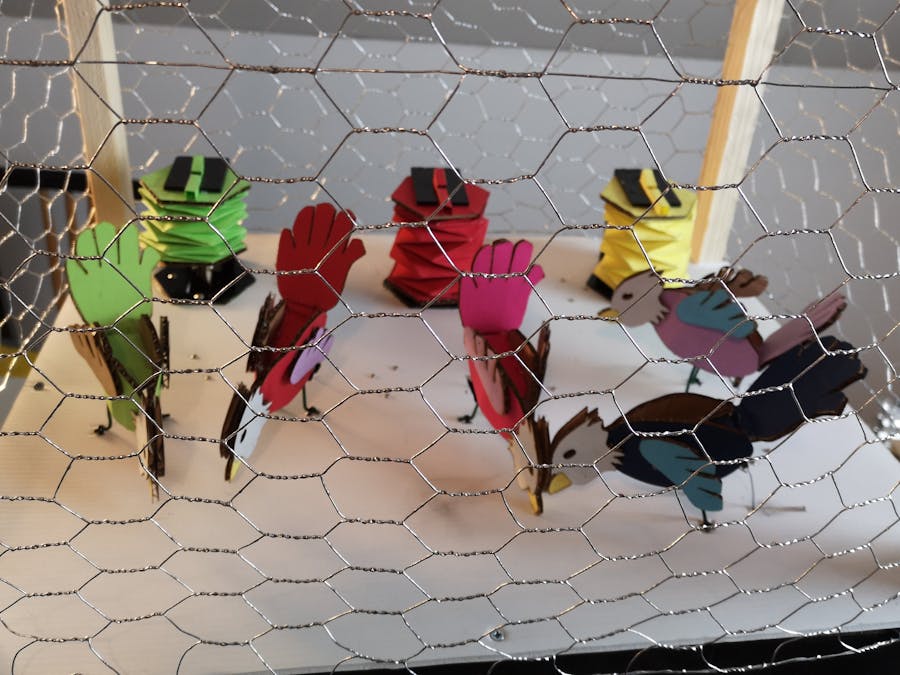

Birds is built with a simple electronic to create a nice scenery effect. To build the project I have followed two separate workflows: the building of the birds’ cage and the animatronics of the birds themselves, including electronics with micro:bit.

The inside of the cage - not visible - includes the moving parts laser-cut while the cage emulates a traditional chicken cage with a cardboard base (a black painted recycled box); the base of the cage is the container of the electronics and the moving engines.

1 / 3

The support structure of the cage is built with 2×3 cm wooden splines joined on the top side by two M2 threaded bars to give robustness to the entire structure. Around the cage, I have fixed a chicken grid that gives good visibility to the interior with a touch of realism.

1 / 4

The electronic assembly (no soldering is required) is based on the BBC micro:bit board and the All-in-one motor and servo controller by Kitronik (kitronik.co.uk), a board that can manage up to eight servos and four DC motors. For this project, I have used all the servo controllers available.

The laser cut parts can be done manually without difficulty with a couple of cutters, a scissor, and plywood saw but the precision of the laser makes the difference.

1 / 4

The moving components are of two types; the birds, moved by five micro servos and the twitters, moved by continuous servos – very similar to a geared DC motor. The birds' motion is simple, through a 2 mm thick wire transmission. Using a software delay and a different starting position every one of the five subjects moves in a quite different way.

The creation of the twitters has been inspired by Rob Ives, a genial maker from the U.K. that creates ingenious paper mechanisms. I was searching by a lot of time a way to reproduce that choo-choo sound used in wall mount clocks very popular during the '60s and ‘70s decades. Finally, I met his site showcasing just what I was searching, easy to build from a single sheet of paper. First I made one of his models and it worked, then I studied the way to hack the design (released under a free Creative Commons license) adapting it to my needs. I made a set of three different tweeters moved by the continuous servos with a rotating cam mechanism.

The complete Birds cage is one of the interactive machines shown at the Art-a-Tronic exhibition in Gent, from April, 5 until May 31.

Code

Birds.js

let increment = 0
let maxBird: number[] = []
let trigAcceleration = 0
let birdDirection: number[] = []
let stepBirdAngle: number[] = []
let birdPosition: number[] = []
let BirdMoveDelay = 0
function moveBirds() {
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo4, birdPosition[0])
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo5, birdPosition[1])
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo6, birdPosition[2])
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo7, birdPosition[3])
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo8, birdPosition[4])
    for (let index = 0; index <= 4; index++) {
        increment = stepBirdAngle[index] * birdDirection[index]
        birdPosition[index] = birdPosition[index] + increment
        if (birdPosition[index] < 0) {
            birdDirection[index] = -1 * birdDirection[index]
            birdPosition[index] = 0
        }
        if (birdPosition[index] > maxBird[index]) {
            birdDirection[index] = -1 * birdDirection[index]
            birdPosition[index] = maxBird[index]
        }
        basic.pause(BirdMoveDelay)
    }
}
function startTwitters2() {
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo1, 20)
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo2, 170)
    Kitronik_Robotics_Board.servoWrite(Kitronik_Robotics_Board.Servos.Servo3, 160)
}
Kitronik_Robotics_Board.allOff()
BirdMoveDelay = 5
stepBirdAngle = [1, 3, 2, 2, 5]
birdDirection = [-1, -1, -1, -1, -1]
birdPosition = [45, 70, 80, 60, 90]
maxBird = [80, 70, 90, 60, 90]
trigAcceleration = 1018
basic.forever(function () {
    led.enable(true)
    basic.showIcon(IconNames.Duck)
    if (input.acceleration(Dimension.Strength) <= trigAcceleration) {
        startTwitters2()
        for (let i = 0; i < 500; i++) {
            moveBirds()
        }
        Kitronik_Robotics_Board.allOff()
    }
    led.enable(false)
})

Credits

Enrico Miglino

4 projects • 20 followers

Software and hardware developer, designer and photographer, maker and (maybe) inventor. I work on Windows, iOS, Android, Linux, MCUs
