Banana Pi BPI-R64 Open Source Router with MTK MT7622 Chip

Banana Pi BPI-R64 open source router with MTK MT7622 64 bit chip design

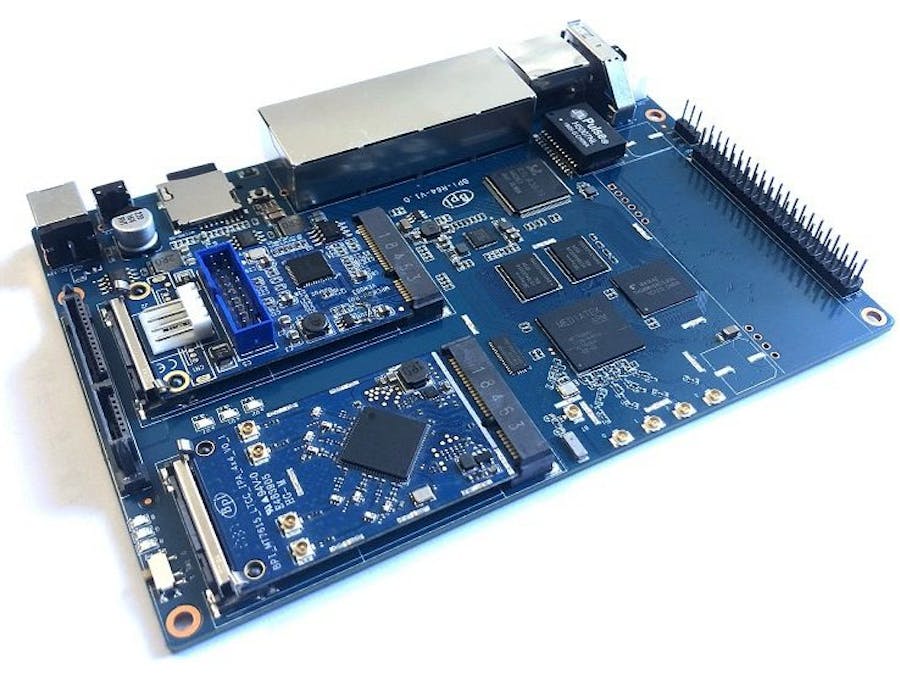

The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function.

==Key Features==

* MediaTek MT7622, 1.35GHZ 64 bit dual-core ARM Cortex-A53

* 1G DDR3 SDRAM

* Mini PCIE interface support 4G module

* built-in 4x4n 802.11n/Bluetooth 5.0 system-on-chip

* MTK7615 4x4ac wifi (option)

* support 1 SATA interface

* MicroSD slot supports up to 256GB expansion

* 8G eMMC flash (option 16/32/64G)

* 5 port 10/100/1000 Mb Ethernet port

* (1) USB 3.0

* Slow I/O:ADC, Audio Amplifier, GPIO, I2C, I2S, IR, PMIC I/F, PWM, RTC, SPI, UART

* POE function support

Hardware interface:

we design PoE function for BPI-R64, so easy to add PoE module to support PoE function, PoE modue can support 12V/3A to power BPI-R64

BPI-7402 PoE module on BPI-R64:

BPI-7402 PoE module wiki page:http://wiki.banana-pi.org/BPI-7402_IEEE_802.3at_PoE_module

we will keep update at BPI-R64 wiki page:

http://wiki.banana-pi.org/Banana_Pi_BPI-R64

BPI-R64 MT7622 schematic diagram public

http://forum.banana-pi.org/t/bpi-r64-mt7622-schematic-diagram-public/10118

BPI:4.0 design :

http://forum.banana-pi.org/t/bpi-4-0-bpi-r64-for-5g-4g-lte-wifi-ac-gigabit-for-converged-communication-gateway/9555

easy to buy sample:

https://pt.aliexpress.com/store/group/R64-Board/302756_516275551.html?spm=2114.12010608.0.0.408a18d6rdUraV
