Temperature, Humidity and Soil Moisture Sensor with Nodemcu

dht11 and soil moisture sensor with nodemcu ESP32 and Asksensor.

IntermediateFull instructions provided4,803
Temperature, Humidity and Soil Moisture Sensor with Nodemcu

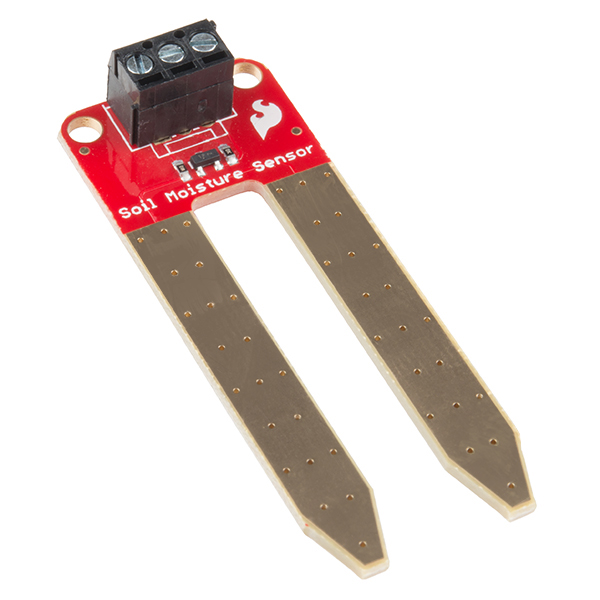

Things used in this project

Story

Read more

Schematics

DHT11, Soil Moisture with NodeMCU

Connect the circuit as shown in the figure

Code

DHT11, Soil Moisture with NodeMCU

C/C++
Copy and Paste the Code. Dont forget to add your Wifi username and password and connect your laptop with same wifi.
#include <WiFi.h>
#include <WiFiMulti.h>
#include <HTTPClient.h>
#include <Adafruit_Sensor.h>
#include <DHT.h>
#include <DHT_U.h>

WiFiMulti WiFiMulti;
HTTPClient ask;

// user config: TODO
#define  MOISTURE_THRESHOLD     55   // moisture alert threshold

const char* ssid = "***";             // enter wifi user name
const char* password = "***";         // enter wifi password
const char* apiKeyIn = "E5IiZ2835YBOgiiQwKjEErx7gaiaVIbw";      // Write your api key given from ask sensor
const unsigned int writeInterval = 25000; // write interval (in ms)

// ASKSENSORS config.
const char* host = "api.asksensors.com";  // ASKSENSORS API host name
const int httpPort = 80;      // port

// DHT config.
#define DHTPIN            4         ////d4 Pin which is connected to the DHT sensor.
// Uncomment the type of sensor in use:
#define DHTTYPE           DHT11     // DHT 11
//#define DHTTYPE           DHT22     // DHT 22 (AM2302)
//#define DHTTYPE           DHT21     // DHT 21 (AM2301)
DHT_Unified dht(DHTPIN, DHTTYPE);
uint32_t delayMS;
int status = WL_IDLE_STATUS;
float myTemperature = 0, myHumidity = 0;
int moisture_Pin= A0; // Soil Moisture Sensor input at Analog PIN vp
int moisture_value= 0, moisture_state = 0xFF;

// create ASKSENSORS client
//
void setup() {
 // open serial
  Serial.begin(115200);

  Serial.println("Wait for WiFi... ");

  // connecting to the WiFi network
  WiFiMulti.addAP(ssid, password);
  while (WiFiMulti.run() != WL_CONNECTED) {
    Serial.print(".");
    delay(500);
  }
  // connected
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());

  // Initialize device.
  dht.begin();
  Serial.println("DHTxx Unified Sensor Example");
  // Print temperature sensor details.
  sensor_t sensor;
  dht.temperature().getSensor(&sensor);
  Serial.println("------------------------------------");
  Serial.println("Temperature");
  Serial.print  ("Sensor:       "); Serial.println(sensor.name);
  Serial.print  ("Driver Ver:   "); Serial.println(sensor.version);
  Serial.print  ("Unique ID:    "); Serial.println(sensor.sensor_id);
  Serial.print  ("Max Value:    "); Serial.print(sensor.max_value); Serial.println(" C");
  Serial.print  ("Min Value:    "); Serial.print(sensor.min_value); Serial.println(" C");
  Serial.print  ("Resolution:   "); Serial.print(sensor.resolution); Serial.println(" C");
  Serial.println("------------------------------------");
  // Print humidity sensor details.
  dht.humidity().getSensor(&sensor);
  Serial.println("------------------------------------");
  Serial.println("Humidity");
  Serial.print  ("Sensor:       "); Serial.println(sensor.name);
  Serial.print  ("Driver Ver:   "); Serial.println(sensor.version);
  Serial.print  ("Unique ID:    "); Serial.println(sensor.sensor_id);
  Serial.print  ("Max Value:    "); Serial.print(sensor.max_value); Serial.println("%");
  Serial.print  ("Min Value:    "); Serial.print(sensor.min_value); Serial.println("%");
  Serial.print  ("Resolution:   "); Serial.print(sensor.resolution); Serial.println("%");
  Serial.println("------------------------------------");
  // Set delay between sensor readings based on sensor details.
  delayMS = sensor.min_delay / 1000;
}

void loop() {

   Serial.println("            Temperature, Humidity and Soil Moisture sensors ");
        Serial.print("Moisture level : ");
    moisture_value= analogRead(moisture_Pin);
    moisture_value= moisture_value/10;
    Serial.println(moisture_value);
   if(moisture_value > MOISTURE_THRESHOLD) moisture_state = 0;
   else moisture_state = 1;
// Read data from DHT
// Delay between measurements.
  delay(delayMS);
  // Get temperature event and print its value.
  sensors_event_t event;
  dht.temperature().getEvent(&event);
  if (isnan(event.temperature)) {
    Serial.println("Error reading temperature!");
  }
  else {
    // Update temperature and humidity
    myTemperature = (float)event.temperature;
    Serial.print("Temperature: ");
    Serial.print(myTemperature);
    Serial.println(" C");
  }
  // Get humidity event and print its value.
  dht.humidity().getEvent(&event);
  if (isnan(event.relative_humidity)) {
    Serial.println("Error reading humidity!");
  }
  else {
     myHumidity = (float)event.relative_humidity;
    Serial.print("Humidity: ");
    Serial.print(myHumidity);
    Serial.println("%");
  }

// Use WiFiClient class to create TCP connections
  WiFiClient client;


  if (!client.connect(host, httpPort)) {
    Serial.println("connection failed");
    return;
  }else {

    // Create a URL for the request
  String url = "https://api.asksensors.com/write/";
  url += apiKeyIn;
  url += "?module1=";
  url += myTemperature;
  url += "&module2=";
  url += myHumidity;
  url += "&module3=";
  url += moisture_value;
  url += "&module4=";
  url += moisture_state;

  Serial.print(" requesting URL: ");
  Serial.println(url);

   ask.begin(url); //Specify the URL
          Serial.println("Temperature, Humidity and Soil moisture data sent to Asksensors");

    //Check for the returning code
    int httpCode = ask.GET();

    if (httpCode > 0) {

        String payload = ask.getString();
        Serial.println(httpCode);
        Serial.println(payload);
      } else {
      Serial.println("Error on HTTP request");
    }

    ask.end(); //End
    Serial.println(" End ");

  }

  client.stop();  // stop client

  delay(writeInterval);    // delay
}
