DIY Smart Home Socket

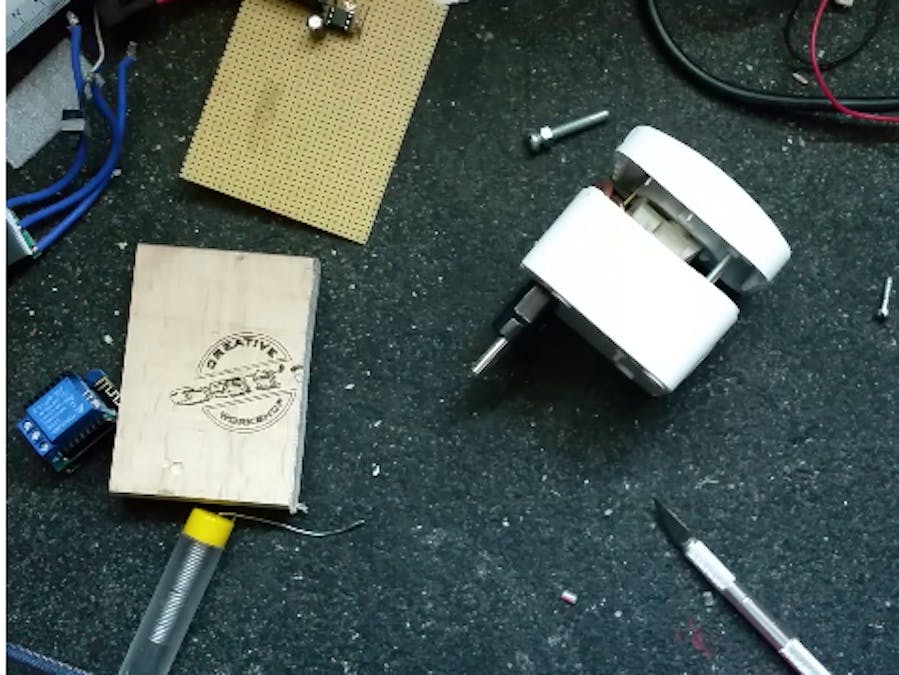

Example of diy smart socket. This can be controlled by ESP8266 Home application. With this smart socket you can on/off any device in home.

IntermediateShowcase (no instructions)3 hours1,762
DIY Smart Home Socket

Things used in this project

Hardware components

ESP8266 ESP-01
Espressif ESP8266 ESP-01
×1
Isolated switch power supply module AC-DC
×1
Wall socket
×1

Software apps and online services

ESP8266 Home

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Digilent Screwdriver
Digilent Screwdriver
Hot glue gun (generic)
Hot glue gun (generic)

Story

Read more

Schematics

ESP8266 relay module

Code

Smart Home Socket

Arduino
Here is source code for this project. You must write it on your ESP8266.
#include <ESP8266WiFi.h>

// Replace with your network details
const char* ssid = "CiraSoft";
const char* password = "your pass";


// Web Server on port 80
int value = LOW;
int ledPin = BUILTIN_LED;
WiFiServer server(80);

byte relON[] = { 0xA0, 0x01, 0x01, 0xA2 };
byte relOFF[] = { 0xA0, 0x01, 0x00, 0xA1 };

// only runs once on boot
void setup() {
  // Initializing serial port for debugging purposes
  Serial.begin(9600);
  delay(10);


   pinMode(ledPin, OUTPUT);
   digitalWrite(ledPin, LOW);
  // Connecting to WiFi network
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.hostname("DnevnaSoba-Grejanje");
  WiFi.begin(ssid, password);
  WiFi.mode(WIFI_STA);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Starting the web server
  server.begin();
  Serial.println("Web server running. Waiting for the ESP IP...");
  delay(10000);

  // Printing the ESP IP address
  Serial.println(WiFi.localIP());
}

// runs over and over again
void loop() {
  // Listenning for new clients
  WiFiClient client = server.available();

  if (client) {
    Serial.println("New client");
    // bolean to locate when the http request ends
    boolean blank_line = true;
    while (client.connected()) {
      if (client.available()) {
        // Read the first line of the request
          String request = client.readStringUntil('\r');
          client.flush();

          // Match the request

          if (request.indexOf("/rel=on") != -1) {
            digitalWrite(ledPin, HIGH);
            Serial.write(relON, sizeof(relON));
          }
          if (request.indexOf("/rel=off") != -1){
            digitalWrite(ledPin, LOW);
            Serial.write(relOFF, sizeof(relOFF));
          }
          value=digitalRead(ledPin);
           String s = "HTTP/1.1 200 OK\r\n";
                    s += "Content-Type: application/json\r\n\r\n";
                    s += "{\"data\":{\"message\":\"success\",\"type\":\"reley\",\"state\":\"" +  String(value) + "\"}}";
                    s += "\r\n";
                    s += "\n";

            client.println(s);
            break;

      }
    }
    delay(1);

    Serial.println("Client disconnected.");
  }
}
