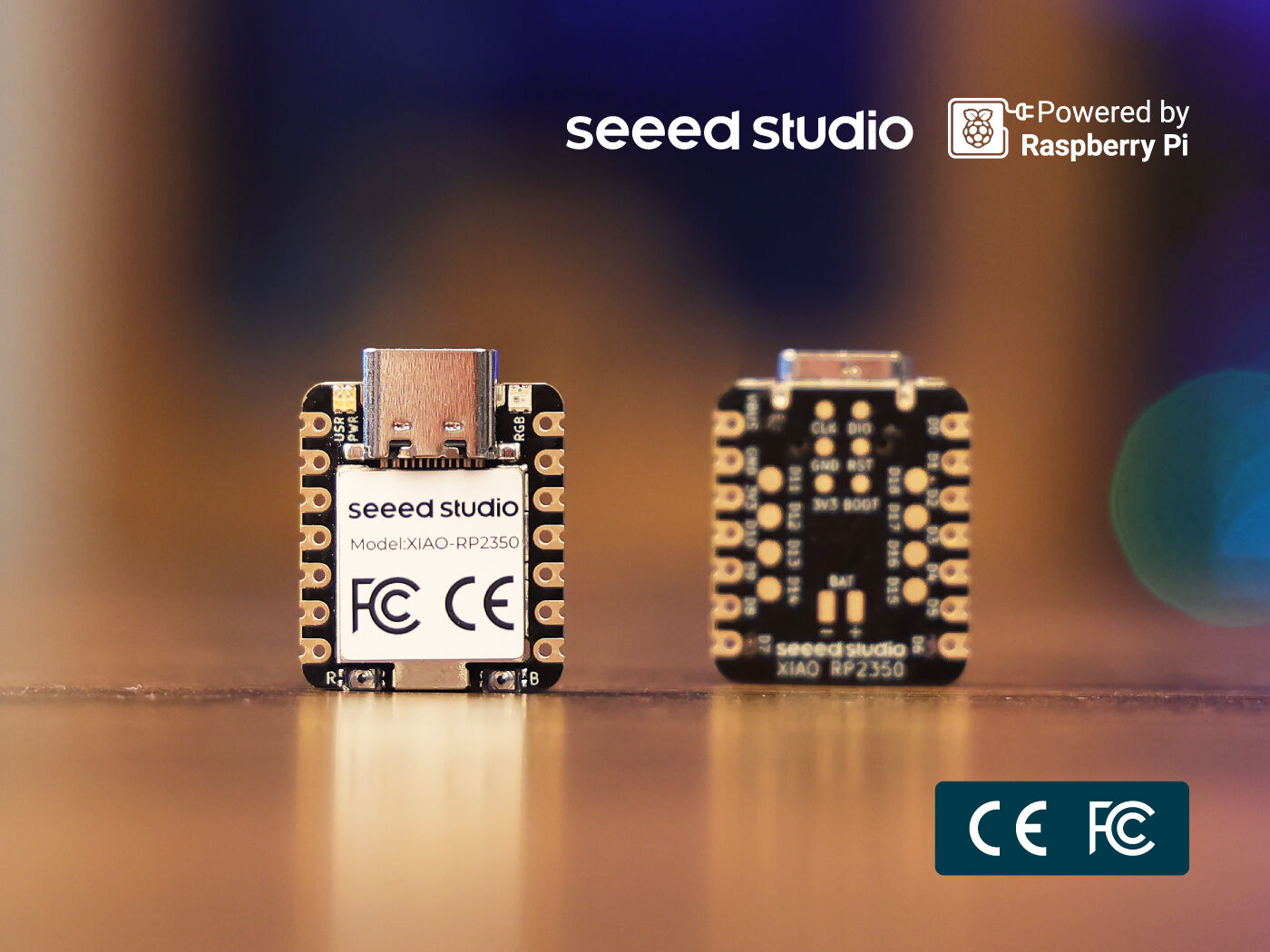

Performance Compare: XIAO RP2040 VS XIAO RP2350

#include <TFT_eSPI.h>   // Include the TFT_eSPI library

TFT_eSPI tft = TFT_eSPI();  // Create TFT_eSPI object

const int screenWidth = 240;  // Screen width
const int screenHeight = 240; // Screen height

unsigned long startTime;
float totalTime = 0;
float averageFPS;
float fillFPS;
const int colorCount = 6;  // Total colors to fill

void setup() {
  Serial.begin(115200);  // Initialize serial for output
  tft.init();            // Initialize TFT screen
  tft.fillScreen(TFT_BLACK);  // Set initial screen color to black
}

void fillScreenAndMeasure(uint16_t color) {
  startTime = millis();  // Record start time
  for (int y = 0; y < screenHeight; y++) {
    for (int x = 0; x < screenWidth; x++) {
      tft.drawPixel(x, y, color);
    }
  } // Fill the screen with the specified color
  unsigned long fillTime = millis() - startTime;  // Calculate fill time
  fillFPS = 1000.0 / fillTime;  // Calculate FPS
  totalTime += fillTime;  // Accumulate total time

  // Output fill time and FPS
  Serial.print("Fill time (ms): ");
  Serial.println(fillTime);
  Serial.print("Fill FPS: ");
  Serial.println(fillFPS);
}

void loop() {
  // Fill screen with 6 different colors
  fillScreenAndMeasure(TFT_RED);
  fillScreenAndMeasure(TFT_BLUE);
  fillScreenAndMeasure(TFT_GREEN);
  fillScreenAndMeasure(TFT_YELLOW);
  fillScreenAndMeasure(TFT_BLACK);
  fillScreenAndMeasure(TFT_WHITE);

  // Calculate average FPS
  averageFPS = (1000.0 * colorCount) / totalTime;

  // Output total time and average FPS
  Serial.print("Total fill time (ms): ");
  Serial.println(totalTime);
  Serial.print("Average FPS: ");
  Serial.println(averageFPS);

  // Display total time and average FPS on the screen
  tft.setTextColor(TFT_BLACK);  // Set text color to black
  tft.setTextSize(2);            // Set text size

  tft.setCursor(10, 90);         // Set text position
  tft.print("XIAO RP2350");      // Use xiao_rp2350
  // tft.print("XIAO RP2040");    // Use xiao_rp2040

  tft.setCursor(10, 115);        // Set text position
  tft.print("Total time: ");
  tft.print(totalTime);
  tft.println(" ms");

  tft.setCursor(10, 150);        // Adjust position slightly
  tft.print("Avg FPS: ");
  tft.print(averageFPS);

  delay(5000);  // Wait before repeating measurement

  totalTime = 0;  // Reset total time
}

#include "rp_test.c"      // Include the test image data
#include <TFT_eSPI.h>     // Include the TFT_eSPI library

#define WIDTH 240         // Image width
#define HEIGHT 180        // Image heigh

uint8_t grayImage[WIDTH * HEIGHT];   // Grayscale image array
uint16_t rgb565Image[WIDTH * HEIGHT]; // RGB565 image array

uint16_t rgb565; // Variable for storing RGB565 pixel data
uint8_t r, g, b; // RGB components
uint8_t gray;    // Grayscale value

TFT_eSPI tft = TFT_eSPI(); // Create TFT_eSPI object

// Convert RGB565 to grayscale
void RGB565ToGray() {
    for (int i = 0; i < WIDTH * HEIGHT; i++) {
        rgb565 = (gImage_rp_test[i * 2] << 8) | gImage_rp_test[i * 2 + 1];
        r = (rgb565 >> 11) & 0x1F;   // Extract 5 bits for Red
        g = (rgb565 >> 5) & 0x3F;    // Extract 6 bits for Green
        b = rgb565 & 0x1F;           // Extract 5 bits for Blue

        // Scale RGB values to 0-255
        r = (r * 255) / 31;
        g = (g * 255) / 63;
        b = (b * 255) / 31;

        // Calculate grayscale value using luminance formula
        grayImage[i] = (r * 77 + g * 150 + b * 29) >> 8;
    }
}

// Convert grayscale to RGB565 format
void GrayToRGB565() {
    for (int i = 0; i < WIDTH * HEIGHT; i++) {
        gray = grayImage[i]; // Get grayscale value (0-255)
        // Convert grayscale to RGB565 format
        uint16_t r = (gray >> 3) & 0x1F;  // 5 bits for red
        uint16_t g = (gray >> 2) & 0x3F;  // 6 bits for green
        uint16_t b = (gray >> 3) & 0x1F;  // 5 bits for blue

        // Combine into 16-bit RGB565 format
        rgb565Image[i] = (r << 11) | (g << 5) | b;
    }
}

// Display the RGB565 image on the screen
void displayImage() {
    for (int y = 0; y < HEIGHT; y++) {
        for (int x = 0; x < WIDTH; x++) {
            // Each pixel is 2 bytes (16-bit RGB565)
            int index = (y * WIDTH + x) * 2;
            rgb565 = (gImage_rp_test[index] << 8) | gImage_rp_test[index + 1];
            tft.drawPixel(x, y + 30, rgb565); // Draw pixel
        }
    }
}

// Display the grayscale image on the screen
void displayGrayImage() {
    for (int y = 0; y < HEIGHT; y++) {
        for (int x = 0; x < WIDTH; x++) {
            int index = (y * WIDTH + x);
            tft.drawPixel(x, y + 30, rgb565Image[index]); // Draw grayscale pixel
        }
    }
}

void setup() {
    tft.init();            // Initialize TFT screen
}

void loop() {
    // Display the original RGB565 image
    displayImage();
    delay(500);
    tft.fillScreen(TFT_WHITE); // Clear screen to white
    delay(500);

    // Measure the time taken for grayscale conversion
    unsigned long start = micros();
    RGB565ToGray();           // Convert RGB565 to grayscale
    unsigned long duration = micros() - start; // Measure duration
    GrayToRGB565();          // Convert grayscale to RGB565 format
    displayGrayImage();      // Display the grayscale image

    delay(500);
    tft.fillScreen(TFT_WHITE);  // Clear screen again

    // Display information on the screen
    tft.setTextColor(TFT_BLACK);  // Set text color to black
    tft.setTextSize(2);            // Set text size
    tft.setCursor(30, 50);         // Set cursor position
    tft.print("XIAO RP2350");      // Use xiao_rp2350
    // tft.print("XIAO RP2040");    // Use xiao_rp2040

    tft.setCursor(30, 80);
    tft.print("Image size:");
    tft.setCursor(30, 100);
    tft.print("240*180");
    tft.setCursor(30, 130);
    tft.print("Gray conversion");
    tft.setCursor(30, 150);
    tft.print("time (us): ");
    tft.print(duration);

    delay(5000);  // Wait before repeating
}
