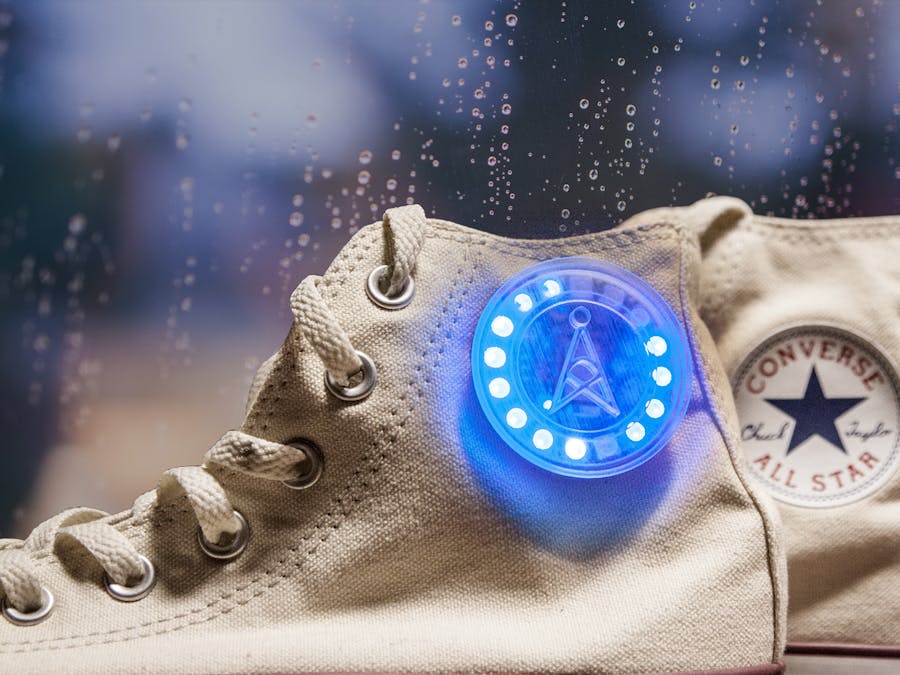

Converse Beacon

Hack your Chucks to bring the weather forecast to your feet, with Neopixels and a Bluetooth LE device to relay weather data from your phone.

IntermediateFull instructions provided4 hours6,395

Things used in this project

Hardware components

Adafruit Flora

Adafruit Flora Wearable Bluefruit LE Module

Lithium Ion Polymer Battery - 3.7v 500mAh

Adafruit Micro Lipo - USB LiIon/LiPoly charger - v1

Adafruit NeoPixel Ring: WS2812 5050 RGB LED

Software apps and online services

Adafruit Blue

IFTTT - Adafruit Channel

Hand tools and fabrication machines

Adjustable 30W 110V soldering iron - XY-258 110V

Soldering iron stand

Solder Wire - 60/40 Rosin Core - 0.5mm/0.02" diameter - 50 grams

Multi-size wire stripper & cutter

Helping Third Hand Magnifier W/Magnifying Glass Tool

Silicone Cover Stranded-Core Wire - 2m 30AWG White

Using several colors of wire will make things easier. We wound up using four colors.

Sewing kit

Many good options are out there - this is just one example.

E6000 craft adhesive

Krazy glue

Velcro strips

Story

Converse Beacon is a DIY hack that uses an Arduino board, Bluetooth, and a NeoPixel ring to alert you to custom weather conditions through IFTTT. Know when it's going to rain or snow, when the temperature outside is perfect, or when the surf is firing with custom alerts that add style to your Chucks.

Assemble the components

Lay out all the parts on a clean surface.

Cut four wires to a length of 3 inches and strip the ends.

Before soldering, check out the wiring schematics below.

Solder your first wire to the pad marked 3.3V on the Flora.

Repeat the process with another wire connected to the GND pad.

Connect another wire to the RX pad.

Connect the fourth and final wire to the TX Pad.

Clip off any excess wire.

Place the Bluefruit module on the back of the Flora and line up the wires (see Wiring Diagram in the Schematics section).

Trim the wires to the appropriate lengths.

Strip the ends.

Solder to the appropriate pads (see Flora to Bluefruit wiring diagram in the Schematics section).

Cut three wires to a length of 2 inches, strip the ends, and solder to V+ , G and IN on the NeoPixel ring. (See Flora to NeoPixels Wiring Diagram in the Schematics section.)

Place the Neopixel ring on the back of the Flora and solder the appropriate wires to 3.3V , GND and Pin9. (See Flora to NeoPixels Wiring Diagram in the Schematics section.)

Once you've finished soldering your wires, use a craft glue (like E6000) to carefully affix the NeoPixel ring to the Flora. Using clamps will help secure it while the glue sets, but be careful not to damage the NeoPixels.

Finishing your Beacon

Ensure the Flora power switch is set to 'On' before gluing or sewing. Similarly, the Bluefruit LE's mode switch should be set to 'CMD'.

The Flora has several holes for sewing the disc onto clothing. Align the Beacon so the battery receptor (the black port opposite the Flora's micro USB port) is on top. Using a needle and thread, attach the Beacon to the outside panel of your Chuck (not the side with the Chuck Taylor All-Star emblem).

Before gluing the unit together, carefully sew through the unused holes of the Flora.

We found that stitching four corners of the flora worked best.

Once the unit is sewn onto the shoe, carefully use the glue to secure all components. A good method is to put a liberal dab under the Bluetooth module first, and then secure the NeoPixel ring to the Flora.

Be liberal with the glue, but try not to get on any circuitry or the LEDs.

We used alligator clips to carefully secure the Beacon while the glue dried.

Using an X-Acto knife, make a small incision above the Beacon near the black battery port. With adhesive velcro patches, attach the battery to the inside of the shoe in a comfortable location. Run the wire through your incision, and plug the battery into the Beacon.

You can find a design for a 3D-printed cover in the CAD section of this guide. To find a local 3D printer, head to 3Dhubs.com. You can also place an order online with a company like Shapeways. We used a local 3D printer to create our cover with a transparent resin finish.

Once you receive the cover, glue the edges of the Beacon, place the case on it and leave it to dry.

Here is how the final build turned out!

Install & set up your software

Now’s a good time to install the Arduino software and test the LEDs. You can find the software here: https://www.arduino.cc/en/Main/Software

Install and open the program. Select 'Preferences' from the 'Arduino' menu. In the "Additional Boards Manager URLs" field at the bottom of the screen, paste this URL: https://adafruit.github.io/arduino-board-index/package_adafruit_index.json and hit OK.

caption (optional)

Navigate to the Tools menu > Board > Boards Manager.

Set the Type to 'Contributed', search for "Adafruit AVR Boards" and install it.

You should now be able to set the Board for "Adafruit Flora" from the Tools menu > Board.

Plug the Flora into your computer with a micro USB cable.

In the Arduino program navigate to Tools > Port and select the port marked (Adafruit Flora).

Go to the Sketch menu and choose Include Library -> Manage Libraries. Search for "FastLED" and install it.

Go to File > Examples > FastLED > DemoReel100. Change lines 18–20 in the program to the following:

#define DATA_PIN    9
//#define CLK_PIN   4
#define LED_TYPE    WS2812

Hit the arrow in the upper left corner to upload the code to the Flora:

The Flora should illuminate after your code has uploaded.

Connect to Bluetooth

Install the Adafruit Bluefruit app:

Android - https://github.com/chapter-sf/bluefruit-android/blob/master/app-debug.apk?raw=true

iOS - https://itunes.apple.com/us/app/adafruit-bluefruit-le-connect/id830125974?mt=8

Note: iOS limits the amount of background activity an app can execute. Android will permit the app to stay connected while the phone is asleep.

Head to Arduino's Sketch menu > Include Library > Manage Libraries. Search for "Adafruit Bluefruit nRF51" and install it.

Download the Beacon code from our Github: https://github.com/chapter-sf/Beacon/archive/master.zip. Open the 'ble_led_mqtt_fastled4.ino' file in Arduino. Upload to your Flora board by hitting the arrow in the upper left corner.

Next open the Serial Monitor by navigating to the Tools menu > Serial Monitor. You will see a text window confirming that the Bluetooth module has successfully reset.

Open the Bluefruit LE Connect app on your device, select "Scan for Peripherals", and find your Bluefruit LE device. Hit 'Connect' and choose UART mode. Send a test command such as r, g, b, h, or l (L) and you should get a test sequence.

Set up your weather triggers

Head to http://adafruit.com, create an account (or sign in), and sign up for the open beta of Adafruit IO at https://io.adafruit.com.

Create a new feed from Your Feeds page (https://io.adafruit.com/feeds) using any name and description you like. Take note of the feed's key listed at the top of the feed page.

From your Bluefruit LE Connect app's UART interface, click on the "MQTT" button. In the server address field type in io.adafruit.com. In the Subscribe field, the 'Topic' should be set to [your Adafruit username]/f/[feed key] -- e.g., "chapter/f/beacon". Set the Action to 'Transmit'. Under Advanced, enter your username.

Go back to your feed's page at https://io.adafruit.com/[username]/feeds/[feed key] and click "View AIO Keys". Copy this and paste into the Bluefruit Connect app's MQTT Settings > Advanced > Password.

At the top of the MQTT Settings page hit 'Enable' or 'Connect' (depending on your OS).

If you want to test the signal, head to https://io.adafruit.com/[username]/feeds/[feed key], scroll down to the '+' and Create Data. Enter an s, t, r, l (lowercase L), or a. And then there was light!

Head to our IFTTT page to see the current recipes -- snow, surf, rain, heat, and cold. Login to IFTTT (or sign up) and add any or all of the recipes. Make sure to update your local/personal information as necessary, including your Adafruit feed from above.

Hack the hack

Once you've connected IFTTT to the Adafruit channel, you aren't limited by just the weather. There are hundreds of possible recipes to link various inputs to your NeoPixels. Get creative and post your best in the comments!
