Integrate pool controller into the smart home

A community effort has reverse engineered the bulk of the Pentair RS-485 bus protocol. This project creates a device that integrates the functionality of the traditional pool controller into the modern smart home.

It keeps tabs on the status of the connected controller, pool pump and chlorinator. This provides not only a more convenient solution than physically interacting with the pool equipment, but the ability to create automations that runs the pump for a duration depending on the temperature.

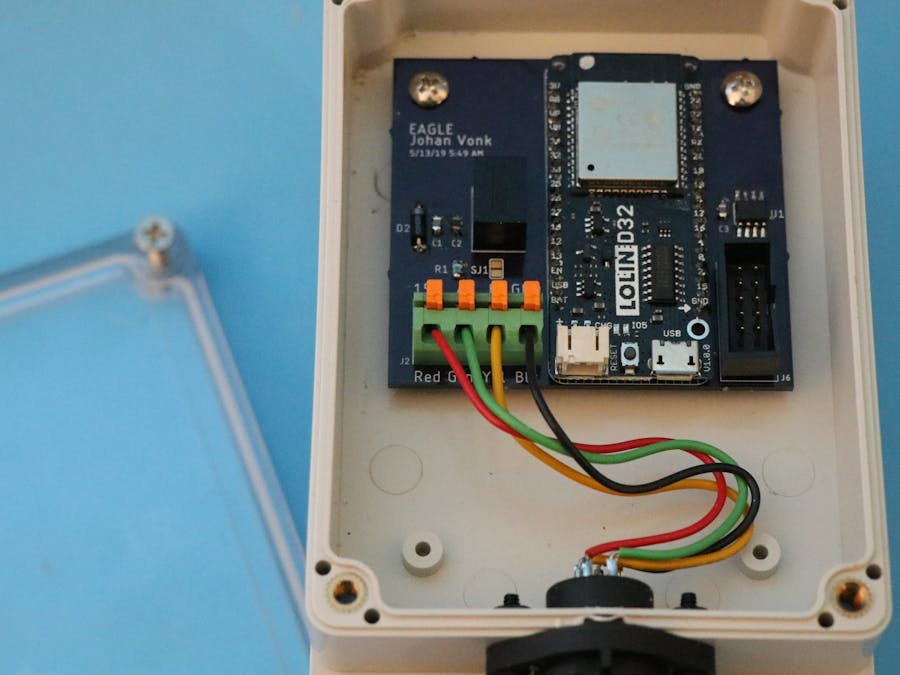

Built it yourself using common components. Open Source and Open Hardware include bill-of-materials (see GitHub), protocol details and design documents.

Features:

• Visualizes the status of the thermostats, pump, chlorinator, circuits, and schedules.
• Allows you adjust the thermostats and toggle circuits
• Supports over-the-air updates (with full build)
• Easily one-time provisioning from an Android phone (with full build)
• Integrates with MQTT and Home Assistant
• Accessible as a webapp
• Protected with IP68 waterproof case and connectors (with full build)

The full fledged project installation method is described in the FULL_INSTALL.md. Before you go down that road, you may want to give it a quick spin to see what it can do.

This open source and hardware project is intended to comply with the October 2016 exemption to the Digital Millennium Copyright Act allowing "good-faith" testing, " in a controlled environment designed to avoid any harm to individuals or to the public.

Parts

At the core this project is an ESP32 module and a 3.3 Volt RS-485 adapter. You can breadboard this using:

• Any ESP32 module that has an USB connector and GPIO#25 to GPIO#27 available (such as the Wemos LOLIN D32).
• Any "Max485 Module TTL". To make it 3.3 Volt compliant, change the chip to a MAX3485CSA+. While you're at it, you may as well remove the 10 kΩ pullup resistors (R1 to R4).
• A piece of Cat5 ethernet cable to connect to the pool controller.

Build

Clone the repository and its submodules to a local directory. The --recursive flag automatically initializes and updates the submodules in the repository,.

git clone --recursive https://github.com/cvonk/OPNpool.git

or using ssh

git clone --recursive git@github.com:cvonk/OPNpool.git

From within Microsoft Visual Code (VScode), add the Microsoft's C/C++ extension. Then add the Espressif IDF extension ≥4.4. ESP-IDF will automatically start its configuration. Answer according to the table below

• Mode = Advanced
• ESP-IDF path = C:/espressif
• Tools = C:/espressif/bin
• Download = yes

From VScode:

• Change to the OPNpool/interface folder.
• Connect your ESP32 module, and configure the device and COM port (press the F1-key and select "ESP-IDF: Device configuration")
• Edit the configuration (press the F1-key, select "ESP-IDF: SDK configuration editor" and scroll down to OPNpool)
• Select "Use hardcoded Wi-Fi credentials" and specify the SSID and password of your Wi-Fi access point.
• If you have a MQTT broker set up, select "Use hardcoded MQTT URL" and specify the URL in the format mqtt://username:passwd@host.domain:1883
• Start the build-upload-monitor cycle (press the F1-key and select "ESP-IDF: Build, Flash and start a monitor on your device").

The device will appear on your network segment as opnpool.local. You can access its web interface through http://pool.local. If MQTT is configured, it will publish MQTT messages. If you also use the Home Assistant, entities will appear after a few minutes with .opnpool in their name.

Connect

⚠️ THIS PROJECT IS OFFERED AS IS. IF YOU USE IT YOU ASSUME ALL RISKS. NO WARRENTIES. At the very least, turn off the power while you work on your pool equipment. Be careful, THERE IS ALWAYS A RISK OF BREAKING YOUR POOL EQUIPMENT.

Understanding the above warning.. the RS-485 header can be found on the back of the control board. There are probably already wires connected that go to the devices such as pump and chlorinator.

To minimize electromagnetic interference, use a twisted pairs from e.g. CAT-5 cable to connect the A/B pair to the RS-485 adapter as shown in the table below.

Controller        RS-485 adapter    idle state
-DATA (green)     A                 negative
+DATA (yellow)    B                 positive

Connect the RS-485 adapter to the ESP32 module. I also pulled GPIO#27 down with a 10 kΩ resistor, to keep it from transmitting while the ESP32 is booting.

RS-485 adapter  ESP32 module
RO              GPIO#25
DI              GPIO#26
DE and RE       GPIO#27
GND             GND

The serial monitor will show decoded messages such as:

{
    "state":{"system":{"tod":{"time":"14:01","date":"2022-04-05"},"firmware":"v0.000"},"temps":{"air":69,"solar":80},
    "thermos":{"pool":{"temp":68,"src":"None","heating":false},"spa":{"temp":69,"src":"None","heating":false}},
    "scheds":{"pool":{"start":"08:00","stop":"10:00"}},
    "modes":{"service":false,"UNKOWN_01":false,"tempInc":false,"freezeProt":false,"timeout":false},
    "circuits":{"active":{"spa":false,"aux1":false,"aux2":false,"aux3":false,"ft1":false,"pool":true,"ft2":false,"ft3":false,"ft4":false},"delay":{"spa":false,"aux1":false,"aux2":false,"aux3":false,"ft1":false,"pool":false,"ft2":false,"ft3":false,"ft4":false}}}}
}

The web UI, will show the pool state and allow you to change the thermostat and circuits.

If you are using Home Assistant, the *.opnpool* entities will update automatically. The hassio directory has some YAML code to use with the Lovelace dashboard.

If you go that route, also remember to install modcard, button-card, bar-card, simple-thermostat, template-entity-row and mini-graph-card available through the Home Assistant Community Store (HACS).

Design documentation

The design documentation for this project is available here.

It includes the chapters

• Introduction
• RS-485 bus
• Hardware
• Tools
• Debugging
• Protocol
• Deploying
• Interface
• Web UI
• Home Automation
