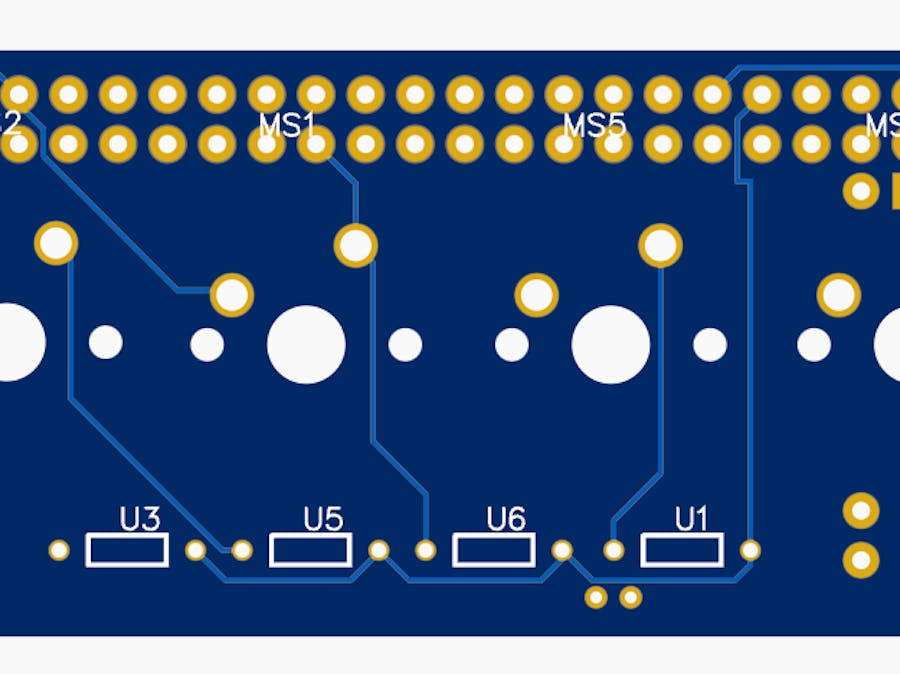

Raspberry Pi Zero mechanic switches shield

Building the Shield:

Materials:

4x 10 Ohm Resistors.

4x Mechanical keyboard switches.

1x Raspberry Pi Zero

40x Generic pins. (Skip this part if your board has pins)

Steps:

1- Solder the resistors to the resistor sockets located on the sides of the shield

2- Solder the Switches to the sockets

3- Program the board.

If you would like to download the Gerber or order the board, feel free to check out the project on pcbway:

https://www.pcbway.com/project/shareproject/Raspberry_Pi_Zero_mechanic_switches_shield_8d7db2b5.html
