Indoor Air Quality Monitor

Use a USB air-quality sensor dongle to quickly mount an indoor air monitoring system and prevent headaches and further impact on health.

IntermediateFull instructions provided3 hours19,828
Indoor Air Quality Monitor

Things used in this project

Story

Read more

Code

Forward uThingVOC data to InfluxDB

Python

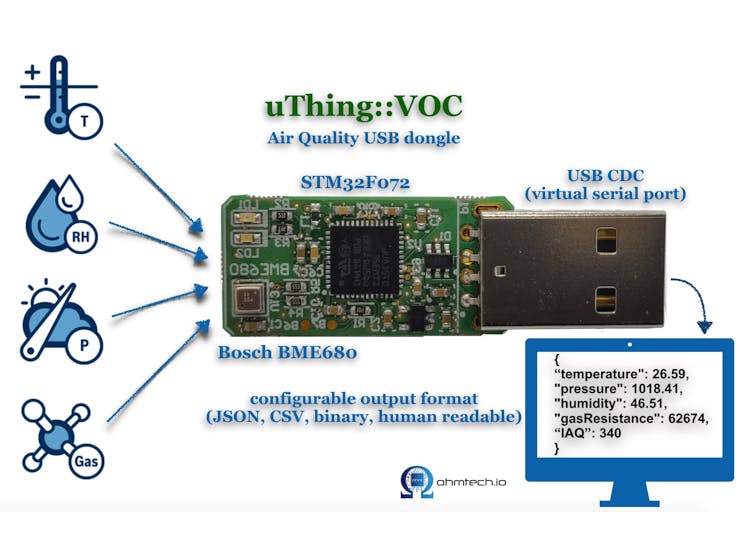

Python3 script to capture the data from the uThing::VOC and store it directly in a InfluxDB database
#!/usr/local/bin/python
import time, sys, json
from influxdb import InfluxDBClient
import serial

json_message = [{
      "measurement": "humidity",
      "fields": {
           "value": 12.34
       }
    }]

influxClient = InfluxDBClient('localhost', 8086, 'user', 'password', 'database')

def serialToInflux():

  while True:
      try:
        message = ""

        #uart = serial.Serial('/dev/tty.usbmodem14101', 115200, timeout=11) #uThingVOC connected over USB-CDC (MacOS)
        uart = serial.Serial('/dev/ttyACM0', 115200, timeout=11) #uThingVOC connected over USB-CDC (Linux, RPi)
        uart.write(b'J\n')

      except serial.SerialException:
        print("Error opening uart")
        break

      while True:
          try:
            message = uart.readline()
            uart.flushInput()
          except:
            print("Error")

          try:
            dataDict = json.loads(message.decode())

            for measurement, value in dataDict.items():
              # print("{}: {}".format(measurement, value))
              json_message[0]['measurement'] = measurement
              json_message[0]['fields']['value'] = float(value)
              print(json_message)
              try:
                influxClient.write_points(json_message)
              except OSError as e:
                print("Unable to write to InfluxDB: %s" % e)

          except ValueError:
            print("ValueErrorError on received or parsing data!")
          except IndexError:
            print("IndexErrorError on received or parsing data!")

if __name__ == "__main__":
    serialToInflux()
