iStevenson

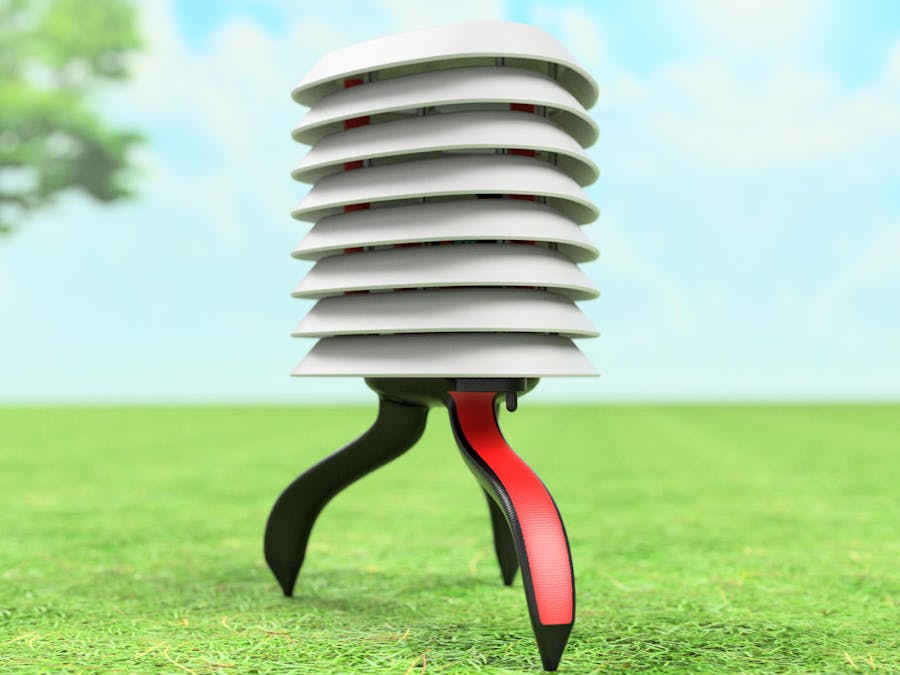

A Stevenson Screen enclosure designed for the Give Your Hardware a Home Challenge!

This is designed to work with the imp Weather Hack

The enclosure consists of 8 slatted parts, that are interconnected and suspended from each other. The enclosure is opened using the spindle at the bottom. This has a concertina effect.

I used a motion study render to show the desired operation, this gives you access to the parts inside for maintenance. it also looks pretty cool too!

Here are some more images showing the mechanism

And some further, images complete the project

The Project can be downloaded here

Thanks for looking

Dave

UPDATE: New Stopper design
