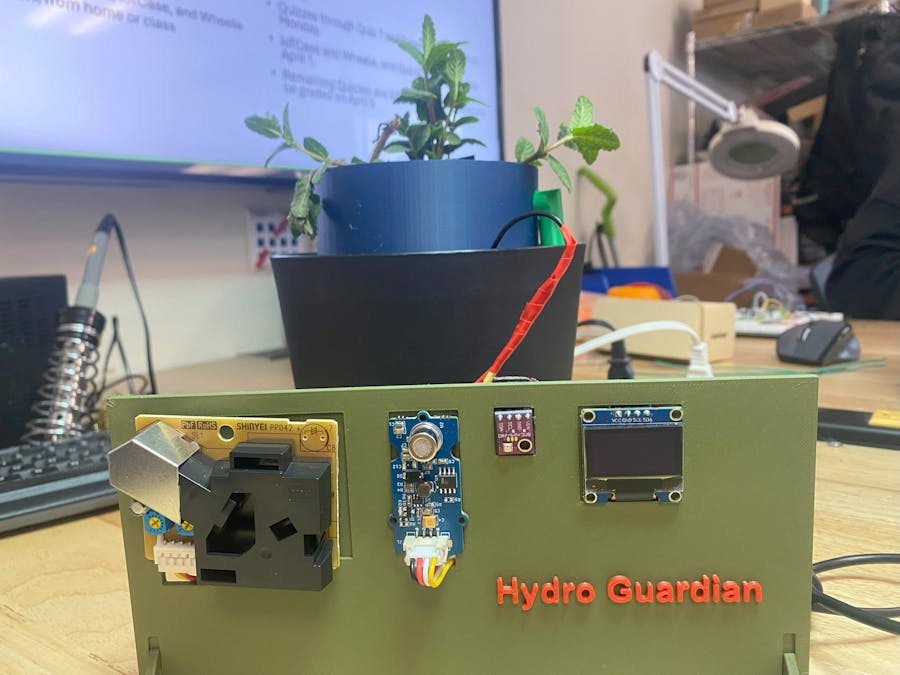

Keep plant alive

/*
 * Project Auto plant watering
 * Author: David Barbour
 * Date: 3/18/24
 */

#include "Particle.h"
#include "Adafruit_BME280.h"
#include "Adafruit_GFX.h"
#include "Adafruit_SSD1306.h"
#include "credentials.h"
#include <Adafruit_MQTT.h>
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"
#include "Adafruit_MQTT/Adafruit_MQTT.h"
#include "Air_Quality_Sensor.h"
#include "IoTTimer.h"

//system setup
SYSTEM_MODE(AUTOMATIC);
//SYSTEM_THREAD(ENABLED);

//constants
const int PINPUMP = D16;
const int MOISTPIN = A2;
const int BUTPIN=D2;
const int OLED_RESET=-1;
const int DUSTPIN= D3;
const int AIRPIN = A0;
const int SAMPLETIME = 30000;
const int WATERABOVE = 2400;

//display
Adafruit_SSD1306 display(OLED_RESET);

//for moisture sensor
int moistRead = 0;

//to determine if button is pushed
bool butPushed = false;
bool butUp=true;

//time syncing
String DateTime , TimeOnly ;

//bme 280 code (temp, pressure, humidity)
Adafruit_BME280 bme;
bool status;
float tempF;
float pressPA;
float humidRH;

//adafruit for publishing/subscribing
TCPClient TheClient;
Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);
Adafruit_MQTT_Subscribe subFeed = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/turnonpump");

Adafruit_MQTT_Publish humidFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/planthumid");
Adafruit_MQTT_Publish tempFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/planttemp");
Adafruit_MQTT_Publish airFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantair");
Adafruit_MQTT_Publish moisFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantmois");
Adafruit_MQTT_Publish dustFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/plantdust");

//pump
int pumpOnOff;
bool bolCheckWater = false;

//dust sensor
unsigned int duration,startTime,lowpulseoccupancy;
float ratio,concentration;
bool keepRunning;
float dustNum=0.0;

//air quality sensor
AirQualitySensor sensor(AIRPIN);
int quality;

//get all the timers prepared
IoTTimer timerOneSec;
IoTTimer timerFifSec;
IoTTimer timerTwoMin;
IoTTimer timerThirtyMin;
IoTTimer timerStopWater;
bool bolFirst = true;
bool pushNow = false;


//the production functions
void mainProgram();
float getDustNumber();
void MQTT_connect();
bool MQTT_ping();

//setup everything here
void setup() {

  //start the serial monitor
  Serial.begin(9600);
  waitFor (Serial.isConnected,10000);

  //set pins for various sensors
  pinMode(PINPUMP,OUTPUT);  //pump
  pinMode(MOISTPIN,INPUT);  //moisture reader
  pinMode(BUTPIN,INPUT);    //button

  //start the display and time sync
  Time.zone (-6);
  Particle.syncTime();

  //start the BME 280
  status=bme.begin (0x76);
  if (status==false ) {Serial.printf ("BME280 at address %c failed to start ", 0x76 );}

  //start the read ubscription for the online button
  mqtt.subscribe(&subFeed);

  //dust sensor
  pinMode(DUSTPIN,INPUT);

  //start the display
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.display();

}

void loop() {
  //get time
  DateTime = Time.timeStr();
  TimeOnly = DateTime.substring (11,19) ;

  // connect to the mqtt server
  MQTT_connect();
  MQTT_ping();

  //run the main loop program
  mainProgram();
}

void mainProgram(){

  //start the timers when you first enter the loop
  //Set them to trigger quicker than normal the first time around
  if (bolFirst==true){
    timerOneSec.startTimer(100);
    timerFifSec.startTimer(1000);
    timerTwoMin.startTimer(120000);
    timerThirtyMin.startTimer(60000);
    bolFirst=false;
  }

  //write time every second
  if (timerOneSec.isTimerReady()==true){
    display.fillRect(0,0,128,10,BLACK);
    display.setCursor(0,0);
    display.printf("Time: %s",TimeOnly.c_str());
    timerOneSec.startTimer(1000);
    display.display();
  }

  //if the button is pushed, reset the display
  butPushed = digitalRead(BUTPIN);
  if (butPushed==true && butUp== true){
    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
    display.clearDisplay();
    display.setTextSize(1);
    display.setTextColor(WHITE);
    display.display();
  }
  butUp=false;
  if (butPushed==false){butUp=true;}

  //write to display (temp,humidity,pressure,air quality,dust,moisture) and publish
  if(timerFifSec.isTimerReady()==true || pushNow==true){

    //air quality
    quality = sensor.slope();
    sensor.getValue();
    display.fillRect(0,10,128,20,BLACK);
    display.setCursor(0,10);
    display.printf("Air Quality %i",quality);

    //temperature
    tempF = (bme.readTemperature ()*9/5)+32.0; // deg F
    display.fillRect(0,20,128,30,BLACK);
    display.setCursor(0,20);
    display.printf("Temp %0.1f%cF",tempF,248);

    //pressure (don't write to display)
    pressPA = (bme.readPressure () * 0.00029530); // pascals to inches of mercury

    //humidity
    humidRH = bme.readHumidity ();
    display.fillRect(0,30,128,40,BLACK);
    display.setCursor(0,30);
    display.printf("Humid %0.1f",humidRH);

    //moisture
    moistRead = analogRead(MOISTPIN);
    display.fillRect(0,40,128,50,BLACK);
    display.setCursor(0,40);
    display.printf("Moisture %i",moistRead);

    //dust
    if(dustNum==0.0){
      display.fillRect(0,50,128,60,BLACK);
      display.setCursor(0,50);
      display.printf("Dust NA");
    }
    else{
      display.fillRect(0,50,128,60,BLACK);
      display.setCursor(0,50);
      display.printf("Dust %.2f",dustNum);
    }

    //finish up
    display.display();
    timerFifSec.startTimer(15000);
    pushNow=false;
  }

  //publish readings every two minutes
  if (timerTwoMin.isTimerReady()==true){
    if(mqtt.Update()) {
      humidFeed.publish(humidRH);
      tempFeed.publish(tempF);
      airFeed.publish(quality);
      moisFeed.publish(moistRead);
      dustFeed.publish(dustNum);
    }

    timerTwoMin.startTimer(120000);
  }

  //get dust reading every 30 minutes (first time 1 minute)
  if (timerThirtyMin.isTimerReady()==true){
    display.fillRect(0,0,128,64,BLACK);
    display.setCursor(0,20);
    display.printf("Reading dust");
    display.display();

    dustNum = getDustNumber();
    display.clearDisplay();
    timerThirtyMin.startTimer(1800000);

    //decide if you need to water the plant
    //if so, send a .5 second pulse of water
    if (moistRead > WATERABOVE){
      digitalWrite(PINPUMP,HIGH);
      timerStopWater.startTimer(500);
      bolCheckWater=true;
    }

  }

  //start water pump if the button is pressed on the web (always check)
  Adafruit_MQTT_Subscribe *subscription;
  while ((subscription = mqtt.readSubscription(100)))
  {
    if (subscription == &subFeed)
    {
      pumpOnOff = atoi((char *)subFeed.lastread);
      if(pumpOnOff == 1){
        digitalWrite(PINPUMP,HIGH);
        timerStopWater.startTimer(500);
        bolCheckWater=true;
      }
      else{
        digitalWrite(PINPUMP,LOW);
      }
    }
  }

  //if the water timer is done, turn off the pump
  if (timerStopWater.isTimerReady()==true && bolCheckWater==true){
    digitalWrite(PINPUMP,LOW);
    bolCheckWater=false;
    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
    pushNow=true;
  }


}

float getDustNumber(){
  //you're going to let this tie up the processor for 30 seconds
  //to get a reading, so only do it every now and then
  bool pkeepRunning=true;
  int pLowpulseoccupancy=0;
  int pStartTime = millis();
  int pDuration = 0;
  float pRatio = 0.0;
  float pConcentration=0.0;

  while (pkeepRunning == true)
  {
    //bail out if you've been doing this for the sample time
    if(millis() > pStartTime + SAMPLETIME){pkeepRunning=false;}

    //count up the low pulses
    pDuration = pulseIn (DUSTPIN,LOW);
    pLowpulseoccupancy = pLowpulseoccupancy + pDuration ;
  }
  pRatio = float(pLowpulseoccupancy) /(float(SAMPLETIME) * 10.0) ;
  pConcentration = 1.1 * pow (pRatio ,3) - 3.8 * pow (pRatio,2) + 520 * pRatio + 0.62;

  return pConcentration;

}

// Function to connect and reconnect as necessary to the MQTT server.
// Should be called in the loop function and it will take care if connecting.
void MQTT_connect() {
  int8_t ret;

  // Return if already connected.
  if (mqtt.connected()) {
    return;
  }

  Serial.print("Connecting to MQTT... ");
   while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
       Serial.printf("Error Code %s\n",mqtt.connectErrorString(ret));
       Serial.printf("Retrying MQTT connection in 5 seconds...\n");
       mqtt.disconnect();
       delay(5000);  // wait 5 seconds and try again
  }
  Serial.printf("MQTT Connected!\n");
}

bool MQTT_ping() {
  static unsigned int last;
  bool pingStatus;

  if ((millis()-last)>120000) {
      //Serial.printf("Pinging MQTT \n");
      pingStatus = mqtt.ping();
      if(!pingStatus) {
        Serial.printf("Disconnecting \n");
        mqtt.disconnect();
      }
      last = millis();
  }
  return pingStatus;
}
