REFLO Air XY Table

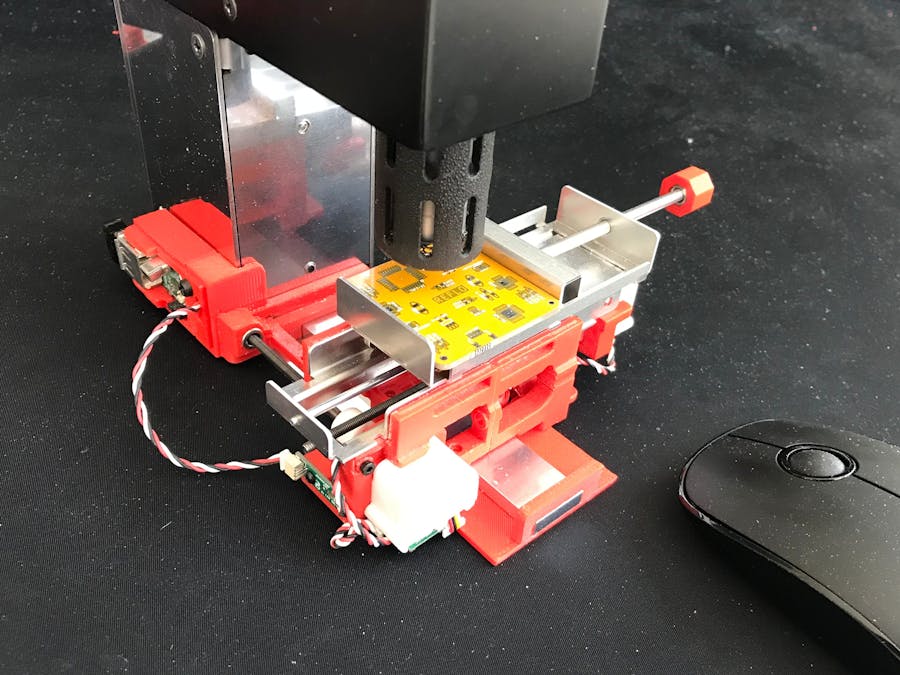

REFLO Air is a compact, open, and smart PCB reflow machine. XY table is option tool for REFLO Air.

IntermediateFull instructions provided5 hours928

Story

REFLO Air is a compact, open, and smart PCB reflow machine. XY table is an optional tool for REFLO Air.

Assembly Procedure

1. Set Control Unit

Install the control unit. Connect the cable to the connector on the side of the main unit. The body is fixed with a magnet.

* Make sure that the Control Unit is installed horizontally.

2. Set Center Guide Bar

Attach the center guide bar so that it is inserted into the center of the control unit.

3. Set BBQ Stand Module

Mount the guide at the bottom of the BBQ stand so that it spans the guide bar, and connect the cable from the control unit to the connector on the left side of the BBQ stand.

Place the board clamp on the BBQ stand. In that case, please combine with the red part under the board clamp and the gray carry part of the BBQ stand.

* The board clamp also serves as a heat shield, so be sure to install it when driving the heater.

* Make sure that there is a joint spacer part between each motor and shaft.

4. Set USB Mouse

Attach the USB adapter of the USB mouse to the USB connector on the backside of the control and turn on the power.

HOW TO OPERATE

1. Move to HOME POSITION

When the right and left buttons of the mouse are pressed simultaneously for about 1 second, the LED lights up red and the XY table moves to the home position. This operation is automatically performed when the power is turned on.

2. Move XY table

Slide the mouse in the direction you want to move while holding down the left mouse button to move the XY table.

3. Heater Operation

Press the middle mouse button once to enter PREHEAT mode, the temperature will rise toward 160 degrees, and once the set temperature is reached, the buzzer will turn once.

If you press the middle button again, the temperature will rise from that point to 240 degrees for the SOLDER. When the set temperature is reached, the buzzer will turn once.

After finishing the work at 240 degrees, press the middle button again to stop the heater and cool down with the fan to lower the temperature.

4. Temperature and Fan adjustment

While the temperature is rising, you can change the set temperature by rotating the middle roller while pressing the right button.

While the temperature is rising, you can change the fan air volume by rotating the middle roller while pressing the left button.

Positioning

5. Semi-automated Operation

a. Record heat point list

When the heater is off, move to the part position on the XY table and press the right button for about 1 second, the LED will turn dark blue and the position will be recorded. You can record the position of multiple parts in succession.

Adding heating points and Preheat

b. Heating Operation

When the heater is started by pressing the middle button, it stops at the position of each part for about 5 seconds and the temperature continues to rise.

When it reaches 240 degrees of soldering, it stops on each part for about 20 seconds and heats.

You can extend this time by pressing the right or left mouse button. At the same time, the temperature can be adjusted with the right button and roller, or the air volume can be adjusted with the left button and roller.

After that, when the heater is stopped with the middle button, the temperature is lowered while stopping on each part for 5 seconds. When the temperature drops below 130 degrees, the XY table stops operating.

Solder and Cooling

c. Adding more heat points

When the heater is off, you can add more heat points by moving the XY table with the left button and mouse movement and pressing and holding the right button.

d. Reset Heat point list

To reset the recorded heat points, activate the Move to HOME POSITION operation using the right and left buttons, and then press the right button. The red flashing will turn yellow and red and the list will be deleted.

Reset heat point list

Schematics

Code

// USB STATION 328
// ============================================
// USB STATION [ATMEGA328p 32kRAM, 2kROM]
//  Language Reference http://arduino.cc/en/Reference/HomePage
//  https://www.circuitsathome.com/arduino_usb_host_shield_projects/
// ============================================
//  INCLUDE FILES
// ============================================
  #include <EEPROM.h>
  #include <SoftwareSerial.h>    // UART
  #include <SPI.h>               // MAX3421E
  #include "FastLED.h"           // RGB LED
  #include <hidboot.h>           // usb
// ============================================
//  VARIABLEs
// ============================================
  CRGB leds[1];                  // RGB LED buffer
  SoftwareSerial monit(5, 6);    // softUART pin setup for Serial Monitor  6:Tx 5:Rx
  #define SSS 6                  // Sensitivity
  #define MEMS 450               // 450 words
  #define SPD 16                 // 4msx4phase=16ms
  #define BTT 50                 // IO time 20-30ms+α
  #define MAXxP 571              // 399 >> 499
  #define MAXyP 571              // 399
  #include "para.h"              //
// ============================================
//  CLASS
// ============================================
class MouseRptParser : public MouseReportParser {
protected:
	void OnMouseMove	(MOUSEINFO *mi);
	void OnLeftButtonUp	(MOUSEINFO *mi);
	void OnLeftButtonDown	(MOUSEINFO *mi);
	void OnRightButtonUp	(MOUSEINFO *mi);
	void OnRightButtonDown	(MOUSEINFO *mi);
	void OnMiddleButtonUp	(MOUSEINFO *mi);
	void OnMiddleButtonDown	(MOUSEINFO *mi);
  void OnWheelMove  (MOUSEINFO *mi);  // for wheel
};
USB     Usb;
HIDBoot<USB_HID_PROTOCOL_MOUSE>  HidMouse(&Usb);
MouseRptParser                   Prs;
// ============================================
//  SETUP
// ============================================
void setup() {
  monit.begin(19200);                // Tx:6/Rx:5 Serial Monitor
  pinMode(A3, INPUT_PULLUP);         // IR
  pinMode( 2, INPUT_PULLUP);         // TACT SW
  pinMode( 4, INPUT);                // SERIAL IF
  pinMode( 5, OUTPUT);               // LED
  USBON();                           // USB Power ON
  FastLED.addLeds<NEOPIXEL, A0>(leds, 1);            // FastLED A0
  leds[0] = CRGB(0, 2, 0); FastLED.show();           // RGB set

  pinMode( 7, OUTPUT);               // MAX3421E RESET
  digitalWrite(7, 0); delay(10); digitalWrite(7, 1); // reset MAX3421E
  if (Usb.Init() == -1) {            // USB HOST Initialize
    tone(A2, 880, 250); monit.println("OSCOKIRQ failed to assert");
    leds[0] = CRGB(2, 0, 0); FastLED.show(); delay(1000);
  } delay( 200 );
  HidMouse.SetReportParser(0, &Prs); // USB Host Parser setup

  REZERO();
  digitalWrite(5, StartStop);
}
void USBON() { pinMode(A1, OUTPUT); digitalWrite(A1, 1); delay(300); }  // A1:USB ON
// ============================================
//  SYSTEM
  long itime, itimeX, itimeY, itimeRP;                   // event timer
  int LtimeX = 250; int LtimeY = 250; int LtimeP = 800;  // timer interval
  byte MODE = 0;                                         // normal/set points/replay
  boolean MBf; long MBt; boolean MBm;                    // Middle button flag, timer
  long Systim;                                           // System sychronize timer (900ms interval)
  int Sreq = 0;                                          // Start Stop reqest

//  int P1X, P1Y, P2X, P2Y; int cPX, cPY;                  // auto point/current point
//  int Rstp = 0;  int Pstp = 0;                           // Record step/Play step
// ============================================
int  DTchkS() { // |||| 0--100............   750""800 |||| 0.....  dead time chk skip
  int nownow = (millis() - Systim) % 900;
  if(nownow < 100 || nownow > 750) return 0; else return 1; // time at execution
}
void SStartStop() { // Start/Stop by Middle button
  if(Sreq) {
      // avoid racing skip //////////////////////////
      if(DTchkS()) { Sreq = 0;
        if(!StartStop)          { Senddata(0x03, 0x55, 0x0c); StartStop = 1; TTemp = 160; } // to pre heat
        else if(StartStop == 1) { Senddata(0x03, 0x55, 0x0c); StartStop = 2; TTemp = 240; } // to solder
        else if(StartStop == 2) { Senddata(0x03, 0xaa, 0x0c); StartStop = 0; } // to stop
      } //////////////////////////////////////////////
  }
  if(MB && !LB && !RB) {
           if(!MBf) { MBt = millis(); MBf = true; }                            // leading set
           if(millis() - MBt > 200 && MBf) { MBm = true; }                     //
  } else { MBf = false; if(MBm) { Sreq = 1; MBm = false; } }
}
void REZERO() {
  leds[0] = CRGB( 20, 0, 0); FastLED.show(); MODE = 0;
  movedirect(MAXxP, 0, 1);         Rflash(10);
  movedirect(MAXxP/2, MAXyP/2, 1); Bflash(10);
}
void Bflash(int nn) {
  for(int n = 0; n < nn; n++) {
    leds[0] = CRGB( 0, 0,20); FastLED.show(); delay(200);
    leds[0] = CRGB( 0, 0, 0); FastLED.show(); delay(200);
  }
}
void Rflash(int nn) {
  for(int n = 0; n < nn; n++) {
    leds[0] = CRGB(20, 0, 0); FastLED.show(); delay(500);
    leds[0] = CRGB( 0, 0, 0); FastLED.show(); delay(500);
  }
}
// ============================================
//  LOOP
// ============================================
void loop() {
  SStartStop(); // middle button start/stop
  IR();         // Control by IR Remote
  SIrcv();      // Parameter sync with Control Pannel
  Usb.Task();   // USB task
  if(millis() - itimeX > LtimeX && LB) { itimeX = millis();     // send X axis command
      if(CXaxis == TXaxis) { LtimeX = 50; } else {              // monit.print("X:"); monit.println(TXaxis);
        Xgogo(max(MAXxP - TXaxis, 1), 0);                       // Xaxis invert
        LtimeX = BTT+SPD*abs(CXaxis - TXaxis); CXaxis = TXaxis; // monit.print(" t:"); monit.println(LtimeX);
      }
  }
  if(millis() - itimeY > LtimeY && LB) { itimeY = millis();     // send Y axis command
      if(CYaxis == TYaxis) { LtimeY = 50; } else {              // monit.print("  Y:"); monit.println(TYaxis);
        Ygogo(max(TYaxis, 1), 0);
        LtimeY = BTT+SPD*abs(CYaxis - TYaxis); CYaxis = TYaxis; // monit.print(" t:"); monit.println(LtimeY);
      }
  }
  if(millis() - itime > 250) { itime = millis();                //send TTemp, send TAirflow
      if(CTemp  != TTemp)  { CTemp  = TTemp;  Senddata(0x00, TTemp-100, 0x0c); }   // Temp
      if(CAflow != TAflow) { CAflow = TAflow; Senddata(0x01, TAflow/2,  0x0c); }   // Air Flow
      digitalWrite(5, StartStop);
  }
  /// MODE CHANGE ////
  if(LB && RB) { LR = true; rezc++;
     leds[0] = CRGB(0, 2, 0); FastLED.show(); itimeRP = millis(); delay(50);
     if(rezc > 8) { REZERO(); } // REZERO
  } else if(LR && !LB && !RB) { // MODE CHANGE
     LR = false; if(rezc < 8)
     MODE++; if(MODE > 2) MODE = 0; itimeRP += 1000; rezc = 0;
  }
  AutoDrive(); // XY table auto driving
}

// ============================================
//  AUTO
  int P1X, P1Y, P2X, P2Y; int cPX, cPY;                  // auto point/current point
  int Rstp = 0;  int Pstp = 0;                           // Record step/Play step
  int sp;
// ============================================
void AutoDrive() {
  if(millis() - itimeRP > LtimeP && DTchkS()) { itimeRP = millis();  // Record and Replay
     switch(MODE) {
       case 0: leds[0] = CRGB( 0, 2, 0); Pstp = 0; break; // NORMAL
       case 1: leds[0] = CRGB( 0, 0, 2+tgll2*20);
           if(RB) {
              if(!Rstp) { P1X = CXaxis; P1Y = CYaxis;
                          monit.print("on::"); monit.print(CXaxis); monit.print("/"); monit.println(CYaxis); } // CXaxis
              else      { P2X = CXaxis; P2Y = CYaxis;
                          monit.print("en::"); monit.print(CXaxis); monit.print("/"); monit.println(CYaxis); } // CYaxis
              P1X = 300; P1Y = 110;
              P2X = 570; P2Y = 360;
              Rstp = !Rstp;
           }
       break; // SET POINT
       case 2: leds[0] = CRGB( 2+tgll2*20, 0, 0);
           switch (Pstp) {
                case 0: cPX  = P1X; cPY  = P1Y; Pstp++; LtimeP = 4000; sp = 1;  break; // home position
                case 1: cPX += 25;              Pstp++; LtimeP =  700; sp = 0;  break; // >> X+
                case 2:             cPY += 25;  Pstp++;                  break; //  V Y+
                case 3: cPX -= 25;              Pstp++;                  break; // << X-
                case 4: cPX += 25;  cPY -= 25;          LtimeP =  700;          // ^> Y-,X+
                        if(cPX < P2X) { Pstp = 1; }                             // repeat circle
                        else { cPY += 20; Pstp++; }                      break; // >> X+
                case 5: cPX -= 25;              Pstp++; LtimeP =  700;   break; // <<
                case 6:             cPY += 25;  Pstp++;                  break; // V
                case 7: cPX += 25;              Pstp++;                  break; // >>
                case 8: cPX -= 25;  cPY -= 25;          LtimeP =  700;          // <^
                        if(cPX > P1X) { Pstp = 5; }                             // repeat circle
                        else {
                          if(cPY > P2Y) {   Pstp = 0; }
                          else { cPY += 25; Pstp = 1; }
                        }
              default: break;
           }
           movedirect(min(max(cPX, 1), MAXxP - 1), min(max(cPY, 1), MAXyP - 1), sp); // move move
       break; // AUTO MOVE
     } tgll2 = !tgll2; FastLED.show();
  }
}

// ============================================
//  MOUSE PARSER roll
// ============================================
void MouseRptParser::OnWheelMove(MOUSEINFO *mi) {
  if(RB) { TTemp  += mi->dZ; if(TTemp > 350) { TTemp = 350; } if(TTemp < 100) { TTemp = 100; } } // TEMP
  if(LB) { TAflow += mi->dZ; if(TAflow > 16) { TAflow = 16; } if(TAflow <  0) { TAflow =  0; } } // FAN
};
void MouseRptParser::OnMouseMove(MOUSEINFO *mi) {
  if(LB) { // with left button
    Xaxis += mi->dX; if(Xaxis > MAXxP*SSS) { Xaxis = MAXxP*SSS; } if(Xaxis < 0) { Xaxis = 0; } TXaxis = Xaxis/SSS;
    Yaxis += mi->dY; if(Yaxis > MAXyP*SSS) { Yaxis = MAXyP*SSS; } if(Yaxis < 0) { Yaxis = 0; } TYaxis = Yaxis/SSS;
  }
};
// ============================================
//  MOUSE PARSER button
  #define Lft 1
  #define Mid 2
  #define Rgt 3
// ============================================
void rgb(int num, int br) {
  itimeRP = millis();
  switch(num) {
    case 1:  leds[0] = CRGB( br,  br,  0);  break; // left
    case 2:  leds[0] = CRGB( br,  0,   br); break; // mid
    case 3:  leds[0] = CRGB( 0,   br,  br); break; // right
    default: leds[0] = CRGB( 0,   2,   0);  break;
  } if(!LR) FastLED.show();
}
void MouseRptParser::OnLeftButtonUp     (MOUSEINFO *mi) { rgb(Lft,  2); LB = false; };
void MouseRptParser::OnLeftButtonDown   (MOUSEINFO *mi) { rgb(Lft, 12); LB = true;  };
void MouseRptParser::OnRightButtonUp    (MOUSEINFO *mi) { rgb(Rgt,  2); RB = false; };
void MouseRptParser::OnRightButtonDown  (MOUSEINFO *mi) { rgb(Rgt, 16); RB = true;  };
void MouseRptParser::OnMiddleButtonUp   (MOUSEINFO *mi) { rgb(Mid,  2); MB = false; };
void MouseRptParser::OnMiddleButtonDown (MOUSEINFO *mi) { rgb(Mid, 16); MB = true;  };

// ============================================
//  IO assignment
// ============================================
// A0:RGB
// A1:USB ON
// A2:BUZZ
// A3:IR
// D2:SW
// D4:IF
// D5:LED
//  D7:RESET
//  D8:GPX
//  D9:INT >> D9/D3
//  D10:SS
//  D12:MISO
//  D13:SCK
// ============================================
//  VALIABLES
// ============================================
  boolean tgll = true; boolean tgll2 = true;    // LED tgle/RGB LED tgle
  int StartStop = 0;                            //
  int TXaxis, TYaxis, TTemp, TAflow;            // Target Value
  int CXaxis, CYaxis, CTemp, CAflow;            // Current Value
  int Xaxis, Yaxis;                             // 6times
  boolean RB, LB, MB;                           // button status
  boolean LR = false;                           // RB and LB button mode
  byte rezc = 0;                                // REZERO count
// ============================================
//  VALIABLES Serial IF
// ============================================
  byte cnt = 0; byte ddd = 0; byte ccc = 0x0f;  // Serial IF parameters
  byte myaddress = 0x00;                        // address C Multi Master
// ============================================
//  VALIABLES AUTO MODE
// ============================================
  int Rpointer = 0;          // buffer pointer
  unsigned int adata[MEMS];  // record buffer memory

// ============================================
// ATTINY XY TABLE STTEPING MOTOR CONTROL
// ============================================
// MOMONGA SERVO CONTROLLER [ATTINY44 0.5kRAM, 4kROM]
// Language Reference http://arduino.cc/en/Reference/HomePage
// ============================================
//  Environment
//   http://make.kosakalab.com/make/electronic-work/arduino-ide/attiny-dev/
//   http://drazzy.com/package_drazzy.com_index.json  board manager
//   pin Mapping = clockwise/internal 8MHz
// ============================================
//  FILE INCLUDE
// ============================================
   #include "para.h"             // Parameters
   #define SP 4000               // Speed ms
   //#define SP 3000               // Speed ms
   #define MGN 1                 // Zero Margin
// ============================================
//  SET UP
// ============================================
void setup() {
   pinMode( 0, INPUT_PULLUP);      // Wall check Hall Sensor
   pinMode( 3, INPUT_PULLUP);      // IF
   pinMode( 5, OUTPUT);            // LED
   pinMode( 9, INPUT_PULLUP);      // ADDRESS0
   pinMode(10, INPUT_PULLUP);      // ADDRESS1

   pinMode( 4, OUTPUT);            // MOTORA PH
   pinMode( 8, OUTPUT);            // MOTORA EN
   pinMode( 7, OUTPUT);            // MOTORB PH
   pinMode( 6, OUTPUT);            // MOTORB EN

   myaddress = 0;                  // read my address
   if(!digitalRead(9))  { bitSet(myaddress, 0); } // x0:X
   if(!digitalRead(10)) { bitSet(myaddress, 1); } // x1:y
   // bit1: odd/even
   // bit2: 512
   CHOT();
   REZERO();
}
// ============================================
//  LOOP
   unsigned int bbb;
   long itime;           // system timers
   boolean tgll = true;  // led dimming direction
   // bit 0:XY bit 1:odd/even bit 2:512 bit3: fast mode
// ============================================
void loop22() {
  if(digitalRead(0)) { digitalWrite(5, 1); } else { digitalWrite(5, 0); };
}
void loop() {
  if(ReceiveCommand())  { bbb = ddd;
    switch(cnt) {
      case 2: TPos = bbb*2; if(bitRead(ccc, 1)) { TPos += 1; } // 8+1bit
              spp = 4000; if(!bitRead(ccc, 3)) spp = 7500;     // set speed ccc bit3:fast bit
              if(bitRead(ccc, 2)) TPos += 512;                 // extend move length
              DIFF = abs(TPos - CPos);                         // Target and Distance 0-399
              FWD = 0; if(TPos - CPos > 0) { FWD = 1; }        // Direction
              rotMON(); for(int n = 0; n < DIFF; n++) {        // Rotate
                  rotMOT(FWD, spp); if(!digitalRead(0)) { n = DIFF; ADJzero(MGN+TPos); }
              } CPos = TPos; rotMOFF();
              if(!TPos) { REZERO(); } break;                   // position
      default: break;
    } cnt = 9;
  }
  if(millis() - itime > 500) { itime = millis();
    if(tgll) { analogWrite(5, bbb); } else { analogWrite(5, 0); } tgll = !tgll;
  }
}
// ============================================
//  HOME POSITION
// ============================================
void CHOT() {
   rotMON(); for(int n = 0; n < 8 ; n++) { rotMOT(1, 7000); }
}
void REZERO() {
   long TO = millis(); CPos = 0;
   rotMON();  // rev rotation end point search
   while( digitalRead(0) && millis() - TO < 15000) { rotMOT(0, SP); } // move to near(screw CW)
   ADJzero(MGN); rotMOFF();
}
void ADJzero(int margn) { // keep margin
   while(!digitalRead(0))  { rotMOT(1, SP); }
   for(int n = 0; n < margn ; n++) { rotMOT(1, SP); }     // zero detect
}

// ============================================
//  Serial data rcv
//  _____start----    ____"0"----   ____"1"---//----  ____stop----
//    9ms     4ms     600us 600us    600us  1600us    600us           total 20 to 30ms
//  0/1/2/3:address 5:all 4:talkie(wait serial command)
// ============================================
int ReceiveCommand() {
  long TStime; long sTStime; int lap[20]; cnt = 0; ddd = 0; ccc = 0x0f;  // initialize
  if(!digitalRead(3)) {
    sTStime = millis(); TStime = micros();                               // total/lap length check
      delayMicroseconds(10); while(!digitalRead(3)) { if(millis() - sTStime > 50) return 0; }
      if(micros() - TStime < 4000) return 0;                             // start carry "L" 9ms
      delayMicroseconds(10); while( digitalRead(3)) { if(millis() - sTStime > 50) return 0; } // start space "H" 4ms
    for(int n = 0; n < 10 + 4; n++) {                                    // 10bit
      delayMicroseconds(10); while(!digitalRead(3)) { if(millis() - sTStime > 50) return 0; } // data carry 600us
      TStime = micros();
      delayMicroseconds(10); while( digitalRead(3)) { if(millis() - sTStime > 50) return 0; }
      lap[n] = micros() - TStime;                                        // data space 600(H)/1600(H)us
    } while(!digitalRead(3)) { if(millis() - sTStime > 50) return 0; }   // stop bit
    for(int n = 0;   n < 2;     n++) { if(lap[n] > 1200) { bitSet(cnt, 1 - n);     } }   // command 2bit
    for(int n = 2;   n < 2+8;   n++) { if(lap[n] > 1200) { bitSet(ddd, 7+2 - n);   } }   // data 8bit
    for(int n = 2+8; n < 2+8+4; n++) { if(lap[n] < 1200) { bitClear(ccc, 7+2+4 - n); } } // address 4bit
    int cccc = ccc & 0x01; // axxa
    if(cccc == myaddress) { return 1; }
  } return 0;
}

// ============================================
//  STEPPINT MOTOR CONTROL
// 4phase x 5 = 1 rotation >> 0.5mm
// 400/50mm 0.125mm/4phase 400x4phase 4ms/1phase >> 16mx400=6.4sec
// 4phasex5/rot 80ms/rot 750rpm
// ============================================
// D0:SENSOR  D5:LED
// D4:PH1     D8:EN1
// D7:PH2     D6:EN2

// STEP MOTOR DRIVE POSITION CONTROL
// A""""""______""""""______""""""____________""""""______""""""___
// B__"""""""______""""""______""""""______""""""______""""""______
//  10 11 01 00 10 11 01 00 10 11 01 00 00 01 11 10 00 01 11
//   2  3  1  0  2  3  1  0  2  3  1  0  0  1  3  2  0  1  3
//           >>>>>>>>>>>                >>>>>>>>>>>
//           +++++++++++                -----------
// 20step(x5cycle)/rot
// 80mm/64 = (6bit) 1.25mm/bit
// 0.5mm/pitch(M3) 2rotで1mm
// X: address 0 Y: address 1
//
void rotMON()  { digitalWrite(5, 1); digitalWrite(8, 1); digitalWrite(6, 1); } // MotorAB Power ON
void rotMOFF() { digitalWrite(4, 0); digitalWrite(7, 0);                       // MotorAB Power OFF
                 digitalWrite(8, 0); digitalWrite(6, 0); digitalWrite(5, 0); }
void rotMOT(int dir, int del) {
                 digitalWrite(4, 0); digitalWrite(7, 0); delayMicroseconds(del);   // ACCW BCCW
      if(!dir) { digitalWrite(4, 1); digitalWrite(7, 0); delayMicroseconds(del); } // ACW  BCCW
      else     { digitalWrite(4, 0); digitalWrite(7, 1); delayMicroseconds(del); } // ACCW BCW
                 digitalWrite(4, 1); digitalWrite(7, 1); delayMicroseconds(del);   // ACW  BCW
      if(!dir) { digitalWrite(4, 0); digitalWrite(7, 1); delayMicroseconds(del); } // ACCW BCW
      else     { digitalWrite(4, 1); digitalWrite(7, 0); delayMicroseconds(del); } // ACW  BCCW
}

// ============================================
// Pin Assignment
// ============================================
//   D0: Hall Sensor for Wall
//   D3: Serial IF
//   D5:LED
//   D4:PH1   D8:EN1 MOTORA
//   D7:PH2   D6:EN2 MOTORB
//   D4/D5/D6:SCK/MISO(Tx)/MOSI(Rx) (IDE connection)
//   D9/D10: ADDRESS

//   D7/D8:TIMER0(delay/mili..)
//   D5/D6:TIMER1(led(x))
// ============================================
//  VARIABLEs
// ============================================
   byte cnt = 0; byte ddd = 0; byte ccc = 0x0f;  // Serial IF parameters
   int TPos, CPos, FWD, DIFF;    // Target/Current position/Motor Direction
   //int tstM = 0;                 // test mode
   byte myaddress = 0;           // leg address 0/1/2/3/4
   int spp;

Credits

Masahiro Mizuno

20 projects • 33 followers

Chief Prototypist. 20+ years R&D experience in wide range of technology.

Contact

Takayuki Saito

3 projects • 2 followers

Mechanical Engineer/ Industrial Designer/BJJ Fighter

Contact

Comments

Please log in or sign up to comment.

REFLO Air XY Table

Story

Assembly Procedure

1. Set Control Unit

2. Set Center Guide Bar

3. Set BBQ Stand Module

4. Set USB Mouse

HOW TO OPERATE

1. Move to HOME POSITION

2. Move XY table

3. Heater Operation

4. Temperature and Fan adjustment

5. Semi-automated Operation

a. Record heat point list

b. Heating Operation

c. Adding more heat points

d. Reset Heat point list

Custom parts and enclosures

XY USB gerber

XY STEPM gerber

Schematics

Schematic

Schematic#2

Code

REFLO XY code

Step motor control

Credits

Masahiro Mizuno

Takayuki Saito

Comments

Embed the widget on your own site

REFLO Air XY Table

REFLO Air XY Table

Story

Assembly Procedure

1. Set Control Unit

2. Set Center Guide Bar

3. Set BBQ Stand Module

4. Set USB Mouse

HOW TO OPERATE

1. Move to HOME POSITION

2. Move XY table

3. Heater Operation

4. Temperature and Fan adjustment

5. Semi-automated Operation

a. Record heat point list

b. Heating Operation

c. Adding more heat points

d. Reset Heat point list

Custom parts and enclosures

XY USB gerber

XY STEPM gerber

Schematics

Schematic

Schematic#2

Code

REFLO XY code

Step motor control

Credits

Masahiro Mizuno

Takayuki Saito

Comments

Related channels and tags
