Park-Box

Park-Box helps communities get the most out of their urban open spaces, digitizing affluence and occupancy in real-time.

IntermediateWork in progressOver 1 day922

Things used in this project

Hardware components

SparkFun SAMD21 Mini Breakout

ATSAMD21G18 32-bit/48MHz ARM Cortex-M0+ 256KB Flash Memory 32KB SRAM 32KB of EEPROM (emulated in Flash) 22 GPIO Count 14 ADC Channels at 12-bit Resolution Analog-to-Digital and Digital-to-Analog Converters (ADC & DAC) RAW: 3.5V-6.0 VVCC: 600mA 3.3V Pro Mini/Micro Layout Integrated USB Controller

SIM7020E

Communications: B1/B3/B5/B8/B20/B28 LTE NB-IoT M2M module Or SIM800C

Pimoroni VL53L1X Time of Flight (ToF) Sensor Breakout

LIDAR distance Sensor (occupancy)

BNO055 Absolute Orientation

Product Feature The BNO055 combines a wide range of sensors, including 3-axis 12-bit accelerometers, 3-axis geomagnetic sensors and 3-axis 16-bit gyroscopes, with built-in Atmel 32-bit MCUs to handle software operations between various sensors. Single data of three types of sensors (acceleration/geomagnetic/gyro) can be provided separately, and combined data can be provided. Through the built-in MCU calculation, more application support can be provided for products such as smart phones and wearable devices. Product Parameter Using the chip: BNO055 Power supply: 3-5v (internal low dropout voltage regulation) Communication method: standard IIC/serial communication protocol Module size 12mm*20mm Schematic: https://ae01.alicdn.com/kf/HTB16GZfajzuK1RjSsppq6xz0XXaE.jpg

Raspberry Pi 3 Model B

Raspberry Pi Camera Module V2

SparkFun Battery Babysitter - LiPo Battery Manager

SparkFun Sunny Buddy - MPPT Solar Charger

Software apps and online services

Google Cloud IoT Core

Google Cloud IoT Device SDK

Google Cloud Functions

Google Cloud Pub/sub

Google BigQuery

Google Firebase

Story

Park-Box

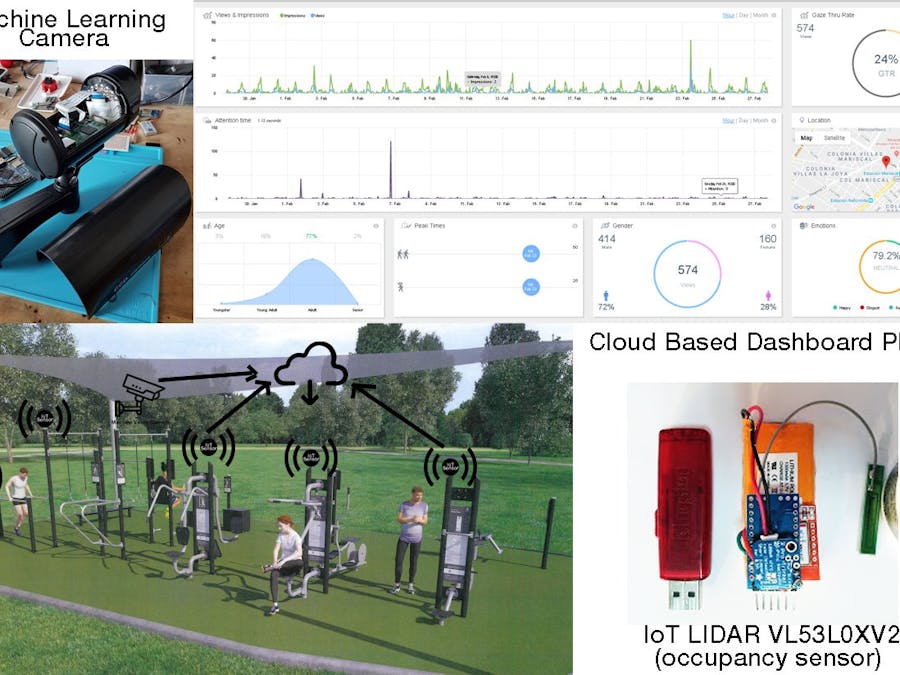

Thesolution provides via Cloud Web Server an insight into the real time demographics (affluence, Age, Gender, emotion) of urban gym park users combined with the total hours of use of each individual park machine, so official and civic organizations can better understand its audience, pike-hours, and total use of spaces to better interact, plan and enhance activities inside these spaces to broaden their impact on their surrounding communities.
